Product Information

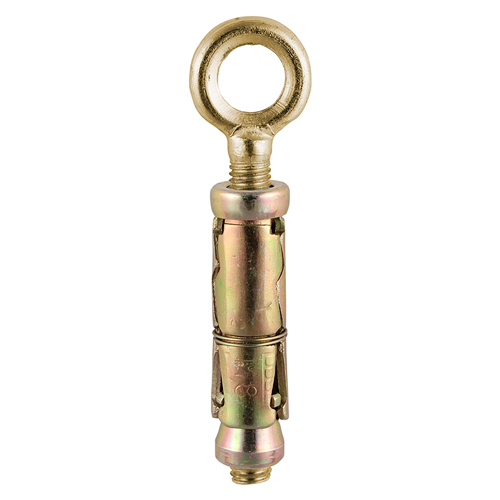

A useful threaded eye bolt for attaching ropes or cables, complete with three segment shield anchors. Manufactured using a forging process for extra strength.
- Zinc and yellow passivated for improved corrosion resistance
- Nut and washer included
- Forged eye grade 4.8
Documents
Technical Specifications
Product Specification
| Eye Length mm | 75 |
| Nut Socket Size mm | 10 |
| Shield Length mm | 45 |
| Thread Length mm | 50 |
| Centre Spacing mm | 135 |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Min Drill Hole Depth mm | 55 |
| Min Embedment Depth mm | 45 |
| Min Structure Thickness mm | 90 |
| Pack Dimensions L x W x H mm | 15 x 90 x 163 |
| Pack Weight kg | 0.08 |
| Carton Qty Packs | 10 |
| Pallet Qty Packs | 6000 |
| Product Code | 06EYEP |
| SKU Barcode | 5055331828743 |
| Thread Dia mm | M6 |
| Eye Dia mm | 8 |
| Drill Hole Dia mm | 12 |
Product Specifications
| Finish | Zinc & Yellow |
| Material | Carbon Steel |
| Point Type | B Point |
| Thread Type | Metric |
| Included Items | M6 Hex Full Nuts & Form A Washers |
| Substrates | Concrete, Brick |
Attribute Group 1
| Brand | TIMCO |

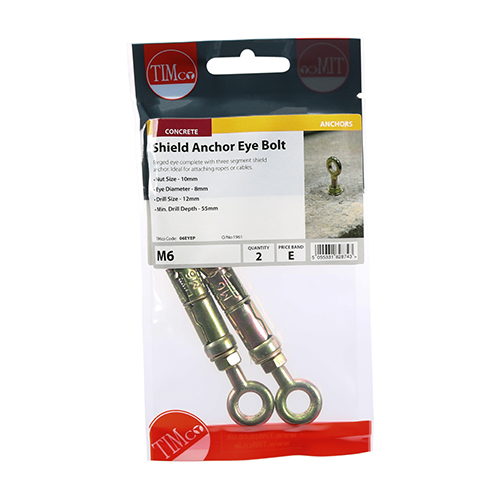

Forged Eyes with Shield Anchors - Yellow
M6
- Product Code: 06EYEP
- Pack Type: TIMpac
- Pack Quantity: 2
- Barcode: 5055331828743
