Product Information

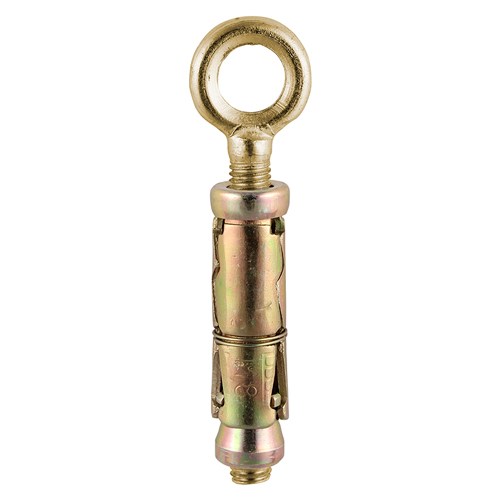

A useful threaded eye bolt for attaching ropes or cables, complete with three segment shield anchors. Manufactured using a forging process for extra strength.
- Zinc and yellow passivated for improved corrosion resistance
- Nut and washer included
- Forged eye grade 4.8
Documents
Technical Specifications
Product Specification
| Eye Length mm | 90 |
| Nut Socket Size mm | 13 |
| Shield Length mm | 50 |
| Thread Length mm | 60 |
| Finish | Zinc & Yellow |
| Material | Carbon Steel |
| Point Type | B Point |
| Thread Type | Metric |
| Type | Eye |
| Centre Spacing mm | 150 |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Included Items | M8 Hex Full Nuts & Form A Washers |
| Min Drill Hole Depth mm | 60 |
| Min Embedment Depth mm | 50 |
| Min Structure Thickness mm | 100 |
| Substrates | Concrete, Brick |
| Pack Dimensions L x W x H mm | 180 x 152 x 50 |
| Pack Weight kg | 0.9 |
| Carton Qty Packs | 5 |
| Pallet Qty Packs | 725 |
| Product Code | 08EYEB |
| SKU Barcode | 5055331821058 |
| Thread Dia mm | M8 |
| Eye Dia mm | 10 |
| Drill Hole Dia mm | 14 |
Attribute Group 1
| Brand | TIMCO |

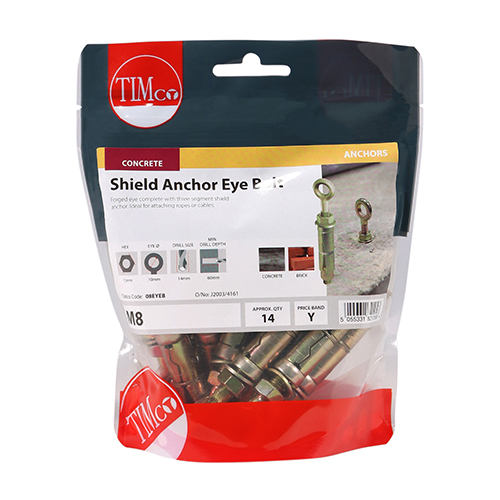

Forged Eyes with Shield Anchors - Yellow
M8
- Product Code: 08EYEB
- Pack Type: TIMbag
- Pack Quantity: 14
- Barcode: 5055331821058
