Product Information

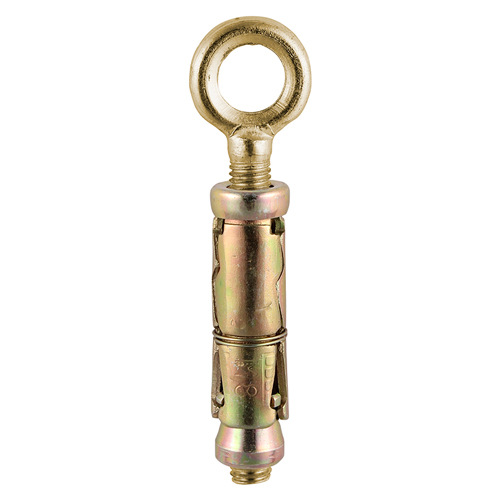

A useful threaded eye bolt for attaching ropes or cables, complete with three segment shield anchors. Manufactured using a forging process for extra strength.
- Zinc and yellow passivated for improved corrosion resistance
- Nut and washer included
- Forged eye grade 4.8
Documents
Technical Specifications
Product Specification
| Eye Length mm | 105 |
| Nut Socket Size mm | 17 |
| Shield Length mm | 60 |
| Thread Length mm | 73 |
| Finish | Zinc & Yellow |
| Material | Carbon Steel |
| Point Type | B Point |
| Thread Type | Metric |
| Centre Spacing mm | 180 |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Included Items | M10 Hex Full Nuts & Form A Washers |
| Min Drill Hole Depth mm | 70 |
| Min Embedment Depth mm | 60 |
| Min Structure Thickness mm | 120 |
| Substrates | Concrete, Brick |
| Pack Dimensions L x W x H mm | 15 x 90 x 163 |
| Pack Weight kg | 0.215 |
| Carton Qty Packs | 10 |
| Pallet Qty Packs | N/A |
| Product Code | 10EYEP |
| SKU Barcode | 5056110830247 |
| Thread Dia mm | M10 |
| Eye Dia mm | 12 |
| Drill Hole Dia mm | 16 |
Attribute Group 1
| Brand | TIMCO |
Forged Eyes with Shield Anchors - Yellow
M10
- Product Code: 10EYEP
- Pack Type: TIMpac
- Pack Quantity: 2
- Barcode: 5056110830247
