Product Information
Garage foot bolts are used for securing the bottom of garage doors and gates. They are foot operated making them ideal for environments where a hands free operation is needed. Fixings not included.
Documents
Technical Specifications
Product Specification
| Bolt Length inch | 8 |
| Bolt Length mm | 200 |
| Bolt Throw mm | 30 |
| Flat Keep Hole Size mm | 18 x 18 |
| Flat Keep Size L x W mm | 49 x 49 |
| Plate Size L x W mm | 188 x 52 |
| Square Bolt mm | 16 x 16 |
| Corrosion Rating | 2 - Occasionally damp/wet, rural and sheltered areas |
| Pack Dimensions L x W x H mm | 160 x 20 x 290 |
| Pack Weight kg | 0.9 |
| Carton Qty Packs | 30 |
| Pallet Qty Packs | N/A |
| Product Code | GFB8BB |
| SKU Barcode | 5055893355725 |
| Rec Screw Dia mm | 4.0 |
Product Specifications
| Finish | Epoxy Black |
| Material | Carbon Steel |
Attribute Group 1
| Brand | TIMCO |

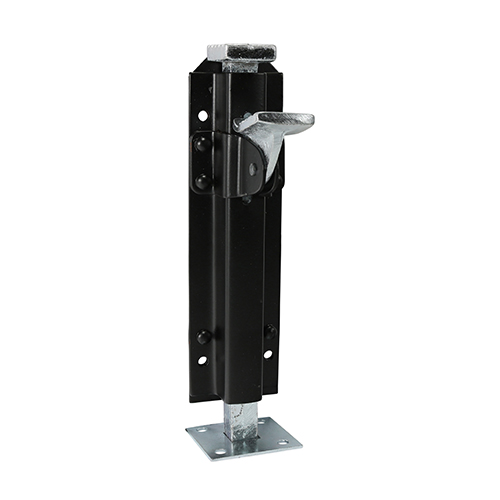

Foot Bolt - Black
8"
- Product Code: GFB8BB
- Pack Type: Plain Bag
- Pack Quantity: 1
- Barcode: 5055893355725
