Product Information
Ideal for use in a variety of joinery applications. Commonly used for light cupboards, cabinets, bifold, louvre doors and shutters.
- Flush finish enables a quick and easy fitting with no morticing required
- Manufactured from steel and available in a variety of finishes
- Ideal for lay over doors
Documents
Technical Specifications
Product Specification
| Length inch | 2 1/2 |
| Length mm | 63 |
| L1 x W1 mm | 63 x 22 |
| L2 x W2 mm | 36 x 15 |
| Open Width mm | 37 |
| Size L x W mm | 63 x 37 |
| Thickness mm | 1.2 |
| Corner Type | Square |
| Knuckle Type | Plain |
| Corrosion Rating | 2 - Occasionally damp/wet, rural and sheltered areas |
| Screws Required Per Pair | 10 |
| Pack Dimensions L x W x H mm | 170 x 92 x 10 |
| Pack Weight kg | 0.06 |
| Carton Qty Packs | 90 |
| Pallet Qty Packs | 7,200 Pairs |
| Pattern | 105 |
| Product Code | 434900 |
| SKU Barcode | 5056110809007 |
| Size imp | 2.5 |
| Knuckle Dia mm | 6.5 |
| Hole Dia mm | 4.6 |
| Rec Screw Dia mm | 3.5 |
Product Specifications
| Finish | Zinc |
| Material | Steel |
Attribute Group 1
| Brand | TIMCO |

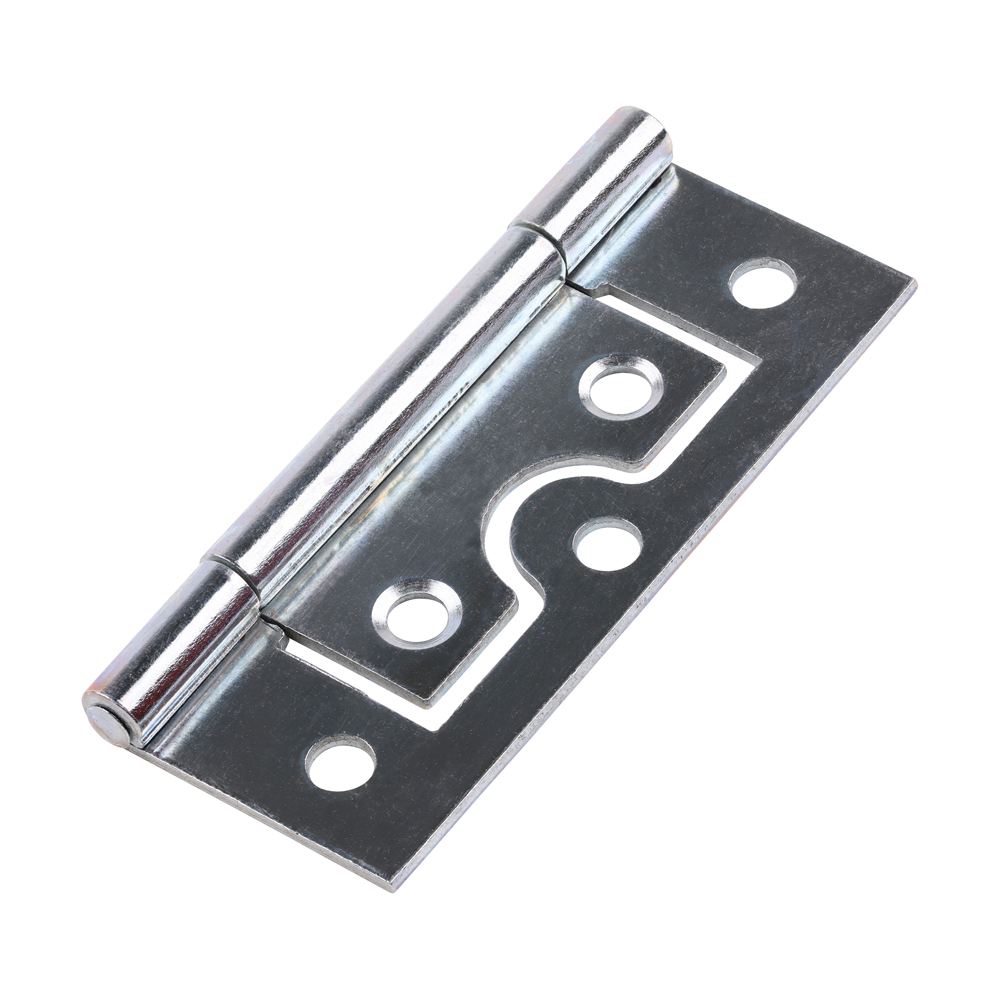

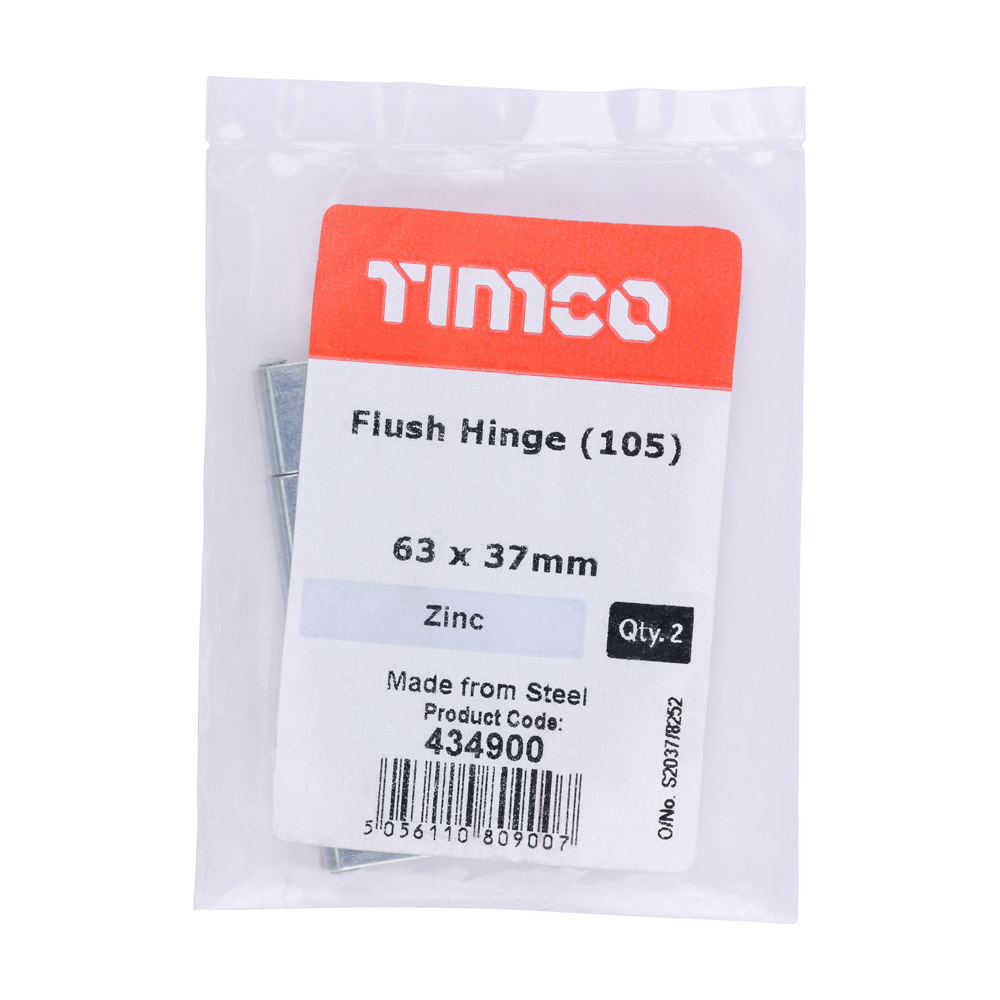

Flush Hinge (105) - Zinc
63 x 37
- Product Code: 434900
- Pack Type: Plain Bag
- Pack Quantity: 1
- Barcode: 5056110809007
