Product Information
Ideal for use in a variety of joinery applications. Commonly used for light cupboards, cabinets, bifold, louvre doors and shutters.
- Flush finish enables a quick and easy fitting with no morticing required
- Manufactured from steel and available in a variety of finishes
- Fixings included
Documents
Technical Specifications
Product Specification
| Length inch | 2 |
| Length mm | 50 |
| L1 x W1 mm | 55 x 22 |
| L2 x W2 mm | 32 x 15 |
| Open Width mm | 39 |
| Screw Size mm | 3.0 x 20 |
| Size L x W mm | 50 x 38.5 |
| Thickness mm | 1.2 |
| Corner Type | Square |
| Knuckle Type | Plain |
| Corrosion Rating | 2 - Occasionally damp/wet, rural and sheltered areas |
| Screws Required Per Pair | 10 |
| Pack Dimensions L x W x H mm | 195 x 88 x 15 |
| Pack Weight kg | 0.05 |
| Carton Qty Packs | 10 |
| Pallet Qty Packs | N/A |
| Pattern | 105 |
| Product Code | 434915P |
| SKU Barcode | 5056110884929 |
| Size imp | 2 |
| Screw Size imp | 4 x 3/4 |
| Knuckle Dia mm | 6.5 |
| Hole Dia mm | 4.6 |
| Rec Screw Dia mm | 3.5 |
Product Specifications
| Finish | Epoxy White |
| Material | Steel |
Attribute Group 1
| Brand | TIMCO |

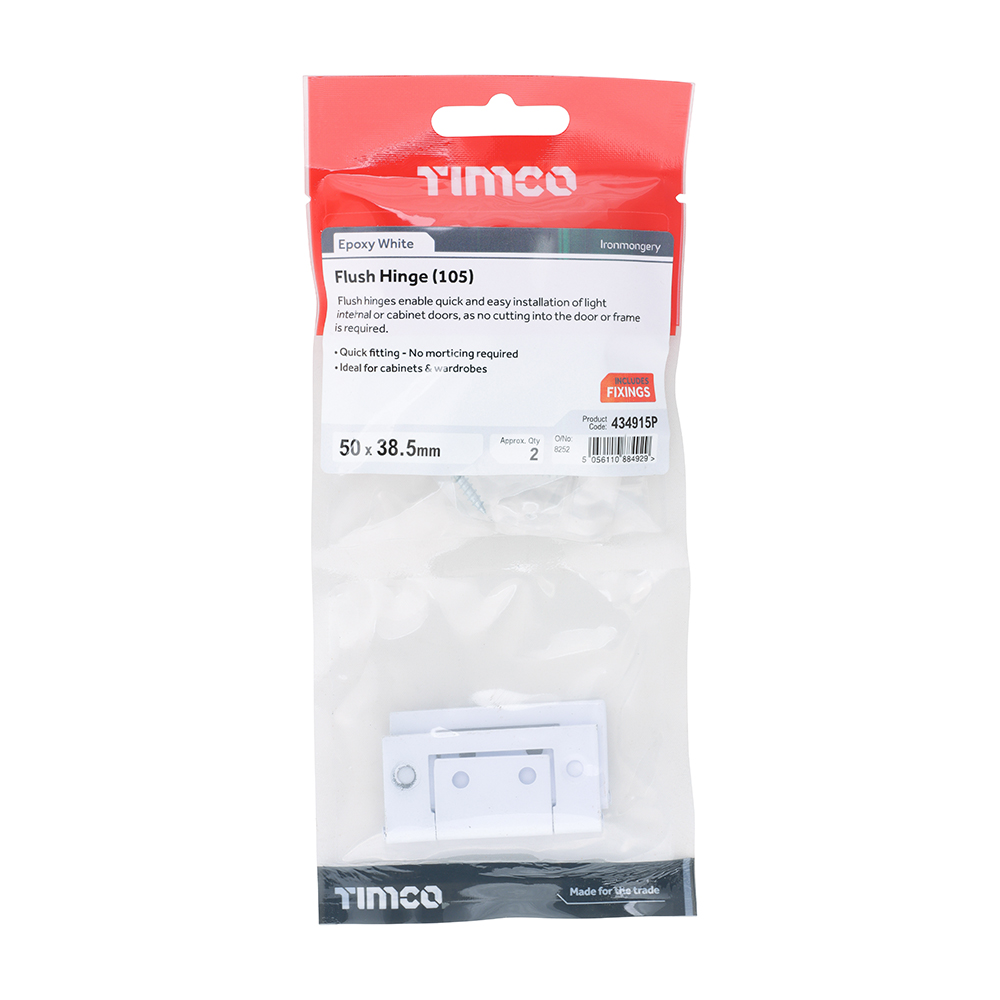

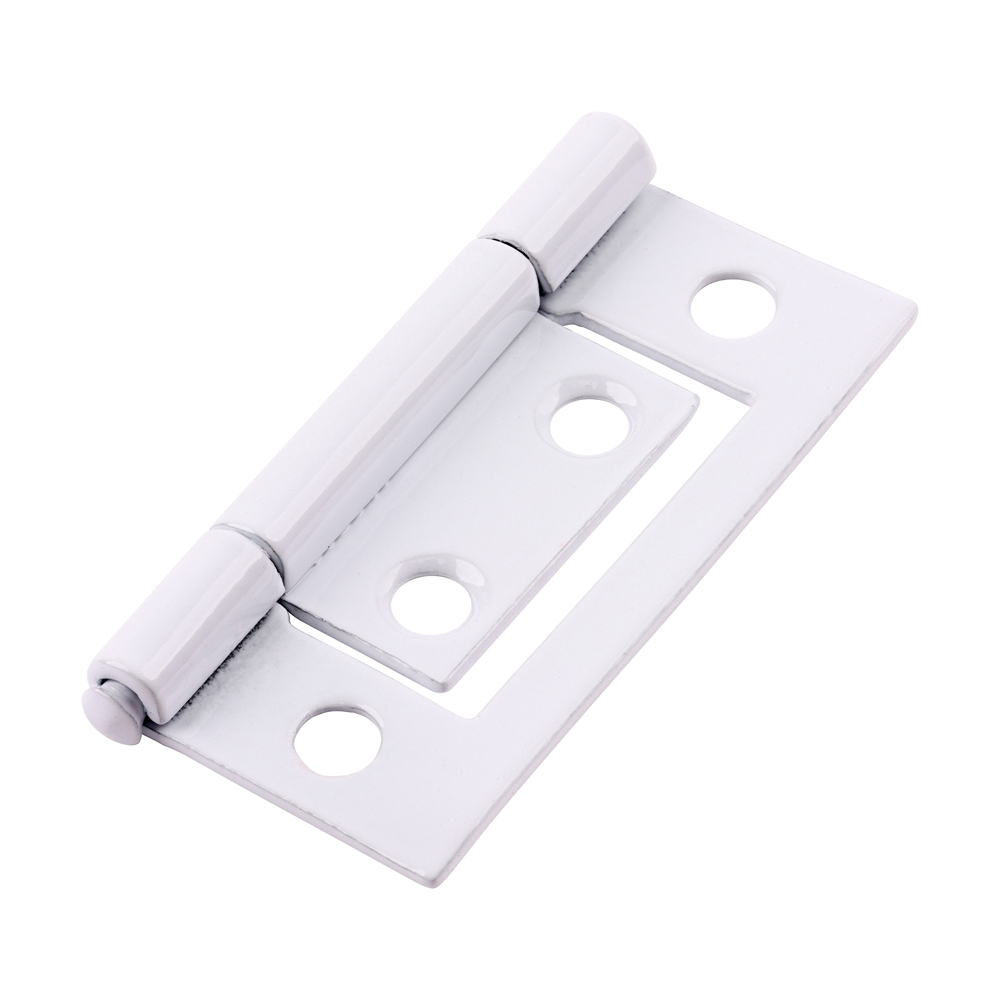

Flush Hinge (105) - White
50 x 38.5
- Product Code: 434915P
- Pack Type: TIMpac
- Pack Quantity: 1
- Barcode: 5056110884929
