Product Information
Flush fit bolt down fence post shoes are a quick and easy way to erect fencing and garden posts as they require no digging or concreting into place, saving time and money. They are designed to be fixed down onto an existing concrete base or wall and are perfect for patio fencing, decking, pergolas or car ports where the post needs to be fitted flush against a wall. The bolt secure version features 2x 8mm carriage bolts that tighten and clamp the post firmly into the post holder section to prevent any post movement as well as allowing for over / under sized post tolerance. The bolt system also allows for removal of the post at a later stage if required.
  • Prevents against post rot and decay as it will hold the base of the post above ground level
  • Hot dipped galvanised for maximum rust protection
  • Can be painted over
Documents
Technical Specifications
Product Specification
Base Plate Size L x W mm 175 x 115
Post Holder Length mm 150
Type Bolt Secure
To Suit Post Size inch 4 x 4
To Suit Post Size mm 100 x 100
Pack Dimensions L x W x H mm 175 x 124 x 150
Pack Weight kg 1.44
Carton Qty Packs 10
Pallet Qty Packs 240
Offers Sale
Product Code FBDB100G
SKU Barcode 5055893382783
Fixing Hole Dia mm 11
No of Bolt Holes 4
Product Specifications
Finish Hot Dipped Galvanised
Material Carbon Steel
Attribute Group 1
Brand TIMCO

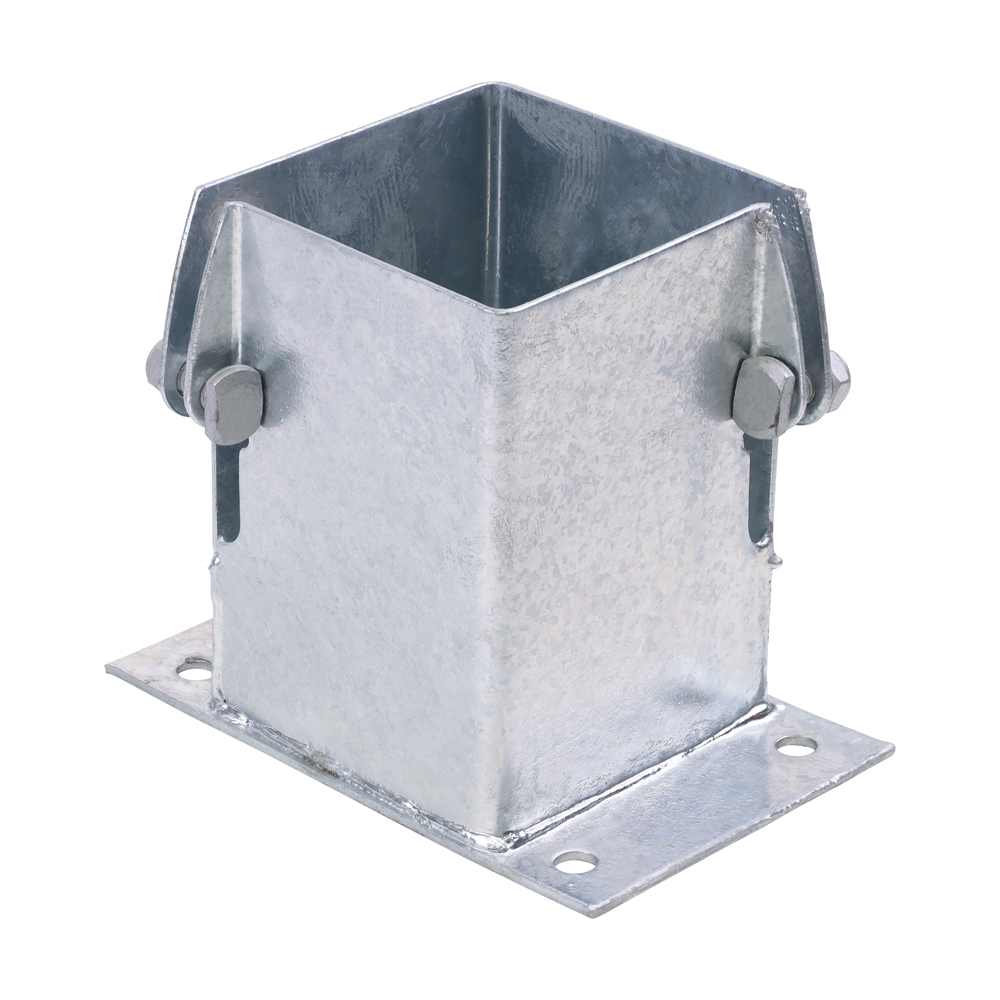

Flush Fit Bolt Down Shoe - Bolt Secure - Hot Dipped Galvanised

100mm

  • Product Code: FBDB100G
  • Pack Type: Unit
  • Pack Quantity: 1
  • Barcode: 5055893382783
