Product Information
Two 6mm holes and one 8mm hole. Manufactured from Galvanised Steel to give a high level of corrosion resistance.
Documents
Technical Specifications
Product Specification
| Projection mm | 100 |
| Thickness mm | 2.3 |
| Total Length mm | 150 |
| Upstand mm | 50 |
| Width mm | 25 |
| Corrosion Rating | 2 - Occasionally damp/wet, rural and sheltered areas |
| Pack Dimensions L x W x H mm | 100 x 25 x 50 |
| Pack Weight kg | 0.07 |
| Carton Qty Packs | 100 |
| Pallet Qty Packs | 6400 |
| Product Code | 100FFC |
| SKU Barcode | 5022456310125 |
Product Specifications
| Finish | Galvanised |
| Material | Carbon Steel |
Attribute Group 1
| Brand | TIMCO |

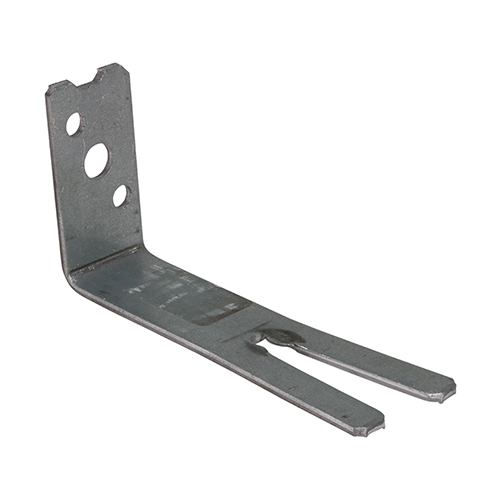

Fishtailed Frame Cramps - Heavy Duty - Galvanised
100/50
- Product Code: 100FFC
- Pack Type: Unit
- Pack Quantity: 1
- Barcode: 5022456310125
