Product Information
For use in structural applications using high quality paper collation for reduced nail jams. Rust protection to comply with building regulations and meet with service classes.
- 34° collation angle
- Diamond point for maximum penetration
- Clipped head to increase the number of nails per strip and therefore reduce tool loading times
- Suitable for indoor and covered outdoor applications
- Conforms to Eurocode 5 and Service Class 2
- Part ring shank type
Documents
Technical Specifications
Product Specifications
| Collation Angle | 34° |
| Finish | FirmaGalv + |
| Head Type | Clipped |
| Material | Carbon Steel |
| Nails Per Strip | 44 |
| Point Type | Diamond |
| Substrates | Timber Structure |
Product Specification
| Head Area mm | 35.6 |
| Length mm | 90 |
| Point Length mm | 4.88 |
| Size mm | 3.1 x 90 |
| Thread Length mm | 40.8 |
| Shank Type | Part Ring |
| Type | Trade Pack |
| Corrosion Rating | 2 - Occasionally damp/wet, rural and sheltered areas |
| Indoor Outdoor Usage | Indoor |
| Pack Dimensions L x W x H mm | 262 x 238 x 86 |
| Pack Weight kg | 12.2 |
| Carton Qty Packs | 2 |
| Pallet Qty Packs | 72 |
| CE Standard Web | BS EN 14592:2008 |
| Eurocode | 5 |
| Service Class | 2 |
| Product Code | CPLT90P |
| SKU Barcode | 5056110836478 |
Attribute Group 1
| Brand | TIMCO |

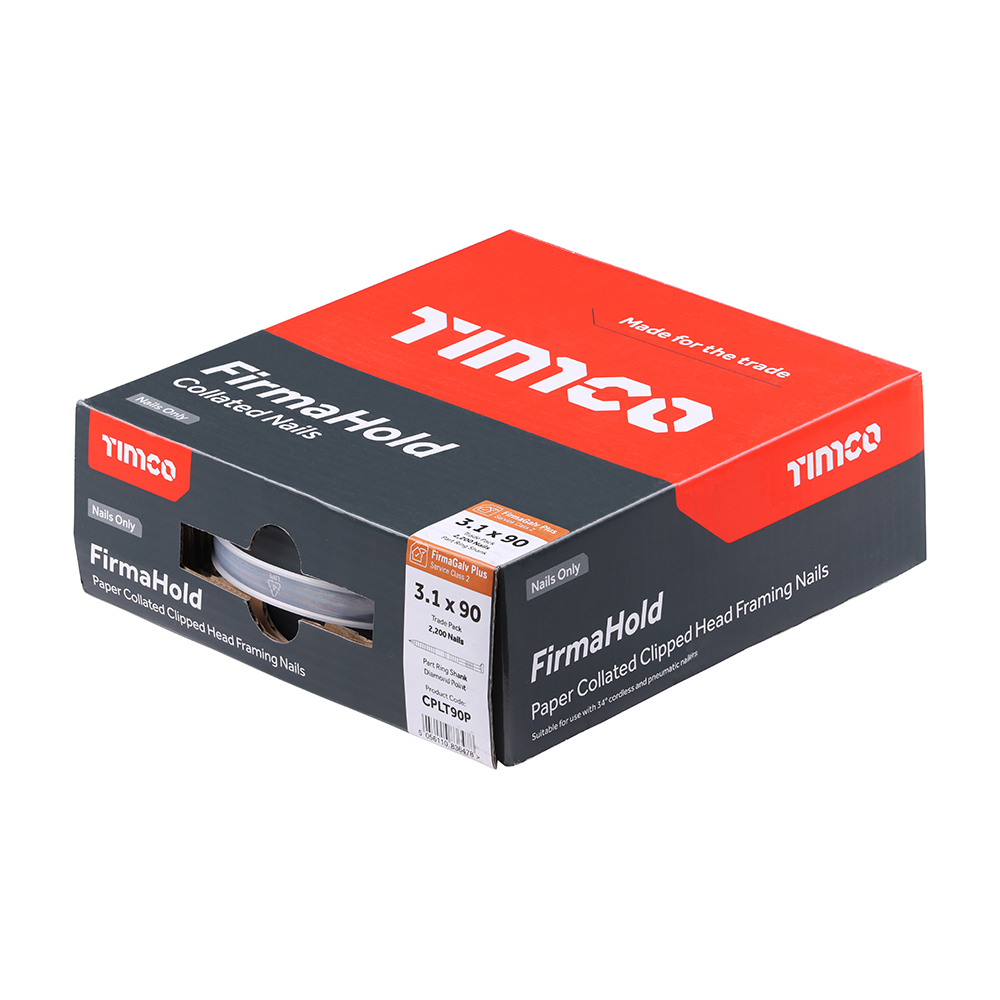

FirmaHold Collated Clipped Head Nails - Trade Pack - Part Ring Shank - FirmaGalv +
3.1 x 90
- Product Code: CPLT90P
- Pack Type: Box
- Pack Quantity: 2200
- Barcode: 5056110836478
