Product Information
For use in structural applications using high quality paper collation for reduced nail jams. Rust protection to comply with building regulations and meet with service classes.
- 34° collation angle
- Diamond point for maximum penetration
- Clipped head to increase the number of nails per strip and therefore reduce tool loading times
- Suitable for indoor applications
- Conforms to Eurocode 5 and Service Class 1
- Ring shank type
Documents
Technical Specifications
Product Specifications
| Collation Angle | 34° |
| Finish | FirmaGalv |
| Head Type | Clipped |
| Material | Carbon Steel |
| Nails Per Strip | 44 |
| Point Type | Diamond |
| Substrates | Timber Structure |
Product Specification
| Head Area mm | 33.8 |
| Length mm | 50 |
| Point Length mm | 4.06 |
| Size mm | 2.8 x 50 |
| Thread Length mm | 37.1 |
| Total Length mm | 50 |
| Shank Type | Ring |
| Type | Retail Pack |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Indoor Outdoor Usage | Indoor |
| Pack Dimensions L x W x H mm | 224 x 104 x 66 |
| Pack Weight kg | 2.86 |
| Carton Qty Packs | 4 |
| Pallet Qty Packs | 192 |
| CE Standard Web | BS EN 14592:2008 |
| Eurocode | 5 |
| Service Class | 1 |
| Product Code | CFGR50 |
| SKU Barcode | 5055017592364 |
Attribute Group 1
| Brand | TIMCO |

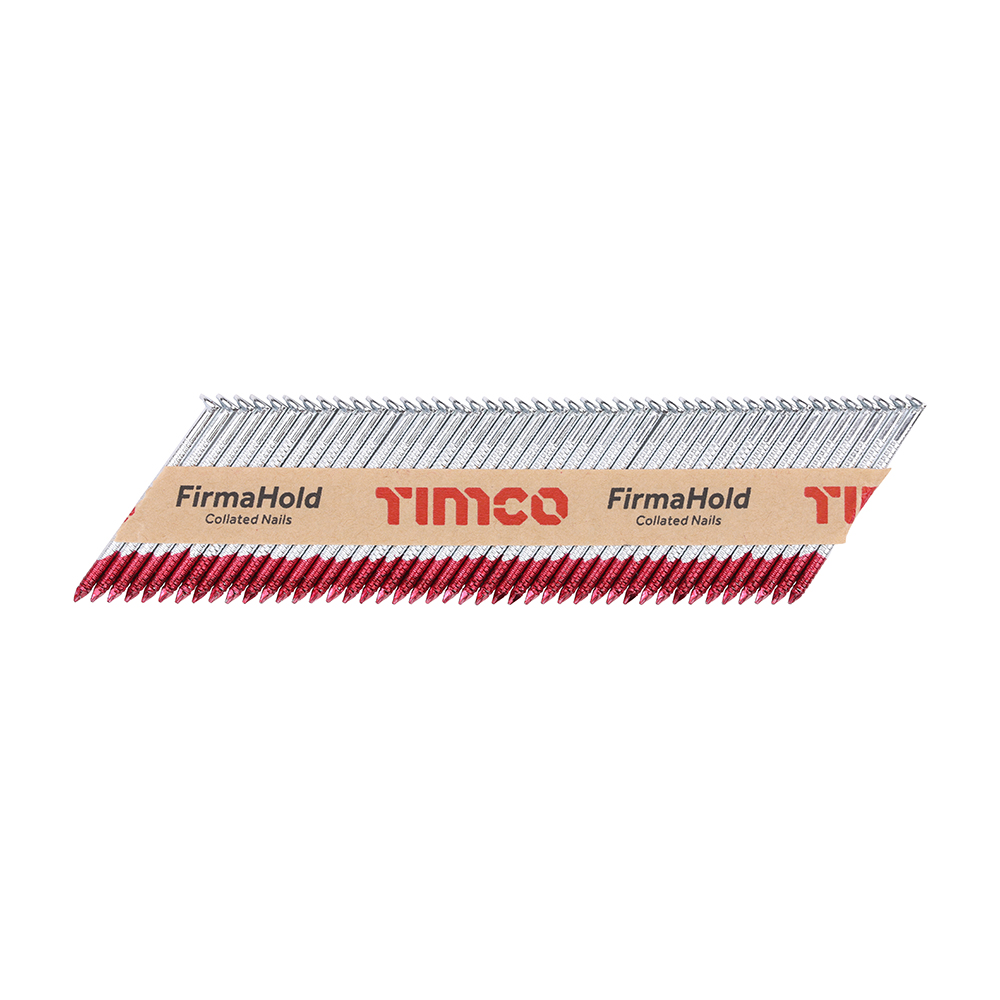

FirmaHold Collated Clipped Head Nails - Retail Pack - Ring Shank - FirmaGalv
2.8 x 50
- Product Code: CFGR50

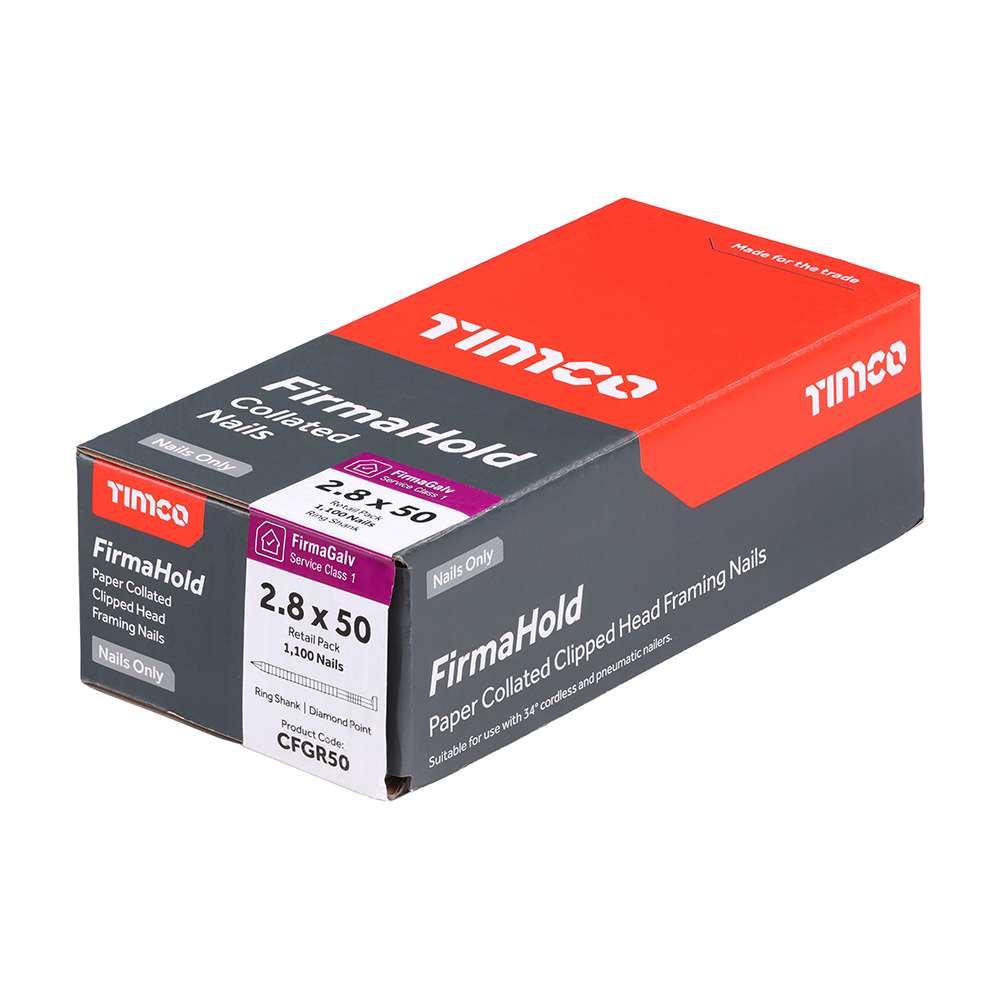

- Pack Type: Box
- Pack Quantity: 1100
- Barcode: 5055017592364
