Product Information
For use in structural applications using high quality paper collation for reduced nail jams. Rust protection to comply with building regulations and meet with service classes. Manufactured from A2 Stainless Steel offering superior corrosion resistance, perfect for external applications. Stainless steel must be used where there is corrosive environment and/or the base material has inherent corrosive characteristics e.g. Green Oak.
- 34° collation angle
- Diamond point for maximum penetration
- Clipped head to increase the number of nails per strip and therefore reduce tool loading times
- Suitable for outdoor applications
- Conforms to Eurocode 5 and Service Class 3
- Ring shank type
Documents
Technical Specifications
Product Specifications
| Collation Angle | 34° |
| Head Type | Clipped |
| Material | Austenitic Stainless Steel (A2-304) |
| Nails Per Strip | 44 |
| Point Type | Diamond |
| Substrates | Timber Structure |
Product Specification
| Head Area mm | 28.34 |
| Length mm | 80 |
| Point Length mm | 4.62 |
| Size mm | 3.1 x 80 |
| Thread Length mm | 61.3 |
| Total Length mm | 80 |
| Shank Type | Ring |
| Type | Retail Pack |
| Corrosion Rating | 4 - Urban & industrial areas with a moderate salt atmosphere |
| Indoor Outdoor Usage | Indoor, Outdoor |
| Pack Dimensions L x W x H mm | 242 x 110 x 82 |
| Pack Weight kg | 5.4 |
| Carton Qty Packs | 4 |
| Pallet Qty Packs | 144 |
| CE Standard Web | BS EN 14592:2008 |
| Eurocode | 5 |
| Service Class | 3 |
| Product Code | CSSR80 |
| SKU Barcode | 5056110814889 |
Attribute Group 1
| Brand | TIMCO |

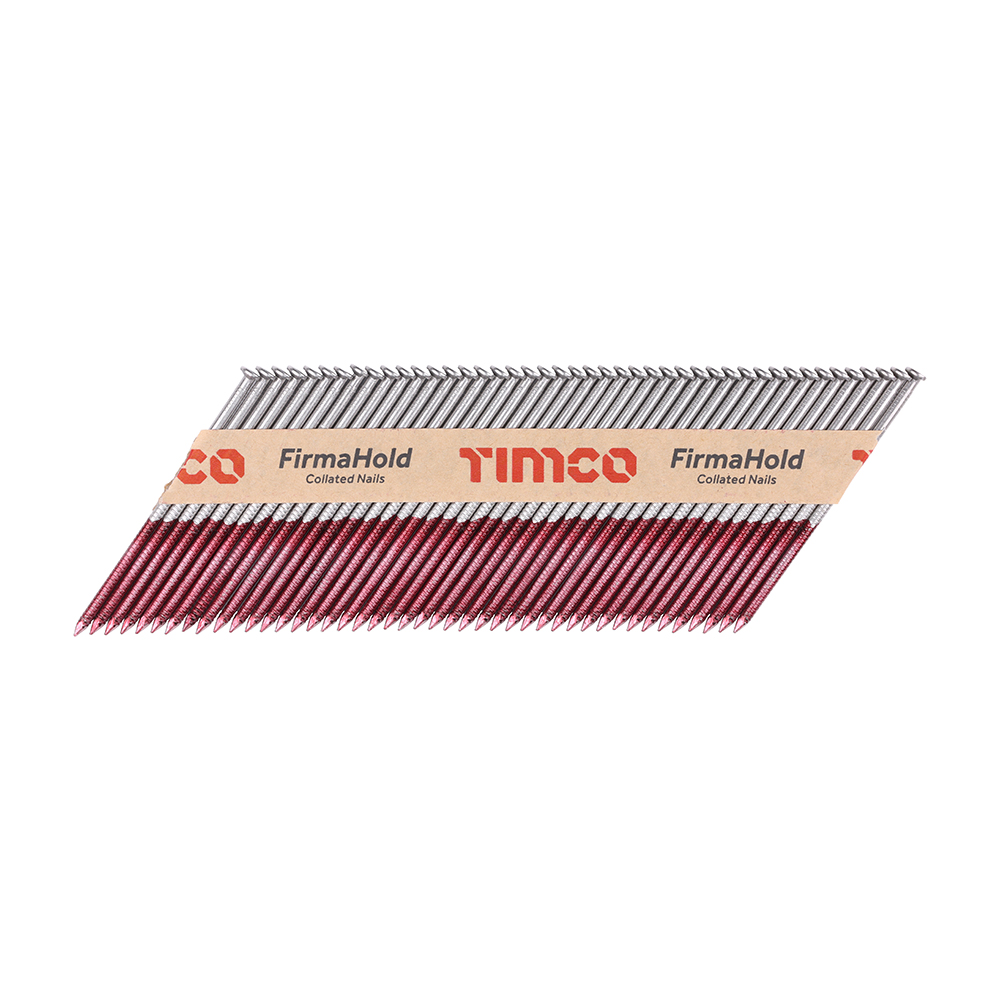

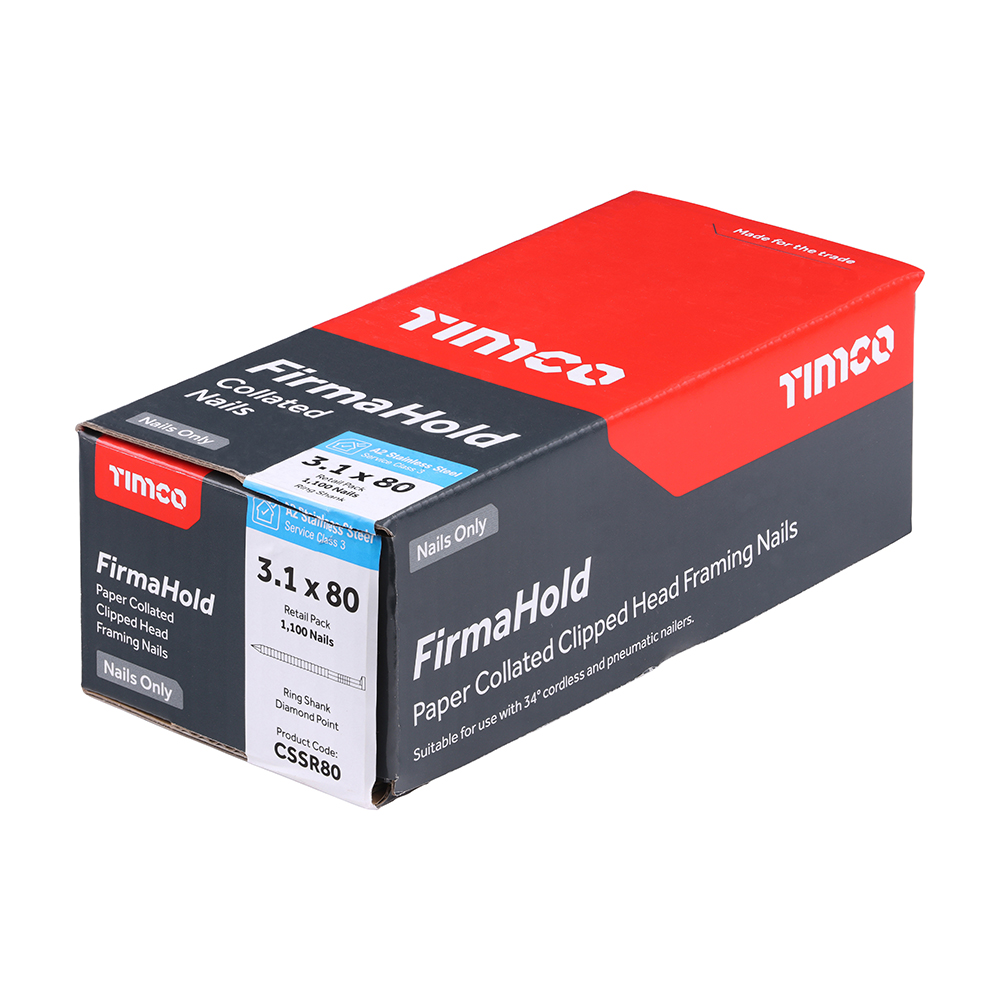

FirmaHold Collated Clipped Head Nails - Retail Pack - Ring Shank - A2 Stainless Steel
3.1 x 80
- Product Code: CSSR80
- Pack Type: Box
- Pack Quantity: 1100
- Barcode: 5056110814889
