Product Information
For use in structural applications using high quality paper collation for reduced nail jams. Rust protection to comply with building regulations and meet with service classes.
- 34° collation angle
- Diamond point for maximum penetration
- Clipped head to increase the number of nails per strip and therefore reduce tool loading times
- Suitable for indoor and outdoor applications
- Conforms to Eurocode 5 and Service Class 3
- Ring shank type
Technical Specifications
Product Specifications
| Collation Angle | 34° |
| Finish | Hot Dipped Galvanised |
| Head Type | Clipped |
| Material | Carbon Steel |
| Nails Per Strip | 44 |
| Point Type | Diamond |
| Fuel Cell Quantity | 3 |
| Included Items | Fuel Cell 80ml (Qty 3) |
| Substrates | Timber Structure |
| Proper Shipping Name | Aerosols, flammable (each not exceeding 1 L capacity) |
Product Specification
| Fuel Cell Volume ml | 80 |
| Head Area mm | 33.8 |
| Length mm | 50 |
| Point Length mm | 4.06 |
| Size mm | 2.8 x 50 |
| Thread Length mm | 37.1 |
| Total Length mm | 50 |
| Shank Type | Ring |
| Type | Trade Pack |
| Corrosion Rating | 4 - Urban & industrial areas with a moderate salt atmosphere |
| Indoor Outdoor Usage | Indoor, Outdoor |
| Pack Dimensions L x W x H mm | 266 x 234 x 94 |
| Pack Weight kg | 9.62 |
| Carton Qty Packs | 2 |
| Pallet Qty Packs | 72 |
| CE Standard Web | BS EN 14592:2008 |
| Eurocode | 5 |
| Service Class | 3 |
| Offers | Sale |
| Product Code | CHDT50G |
| SKU Barcode | 5055017596058 |
Attribute Group 1
| Brand | TIMCO |

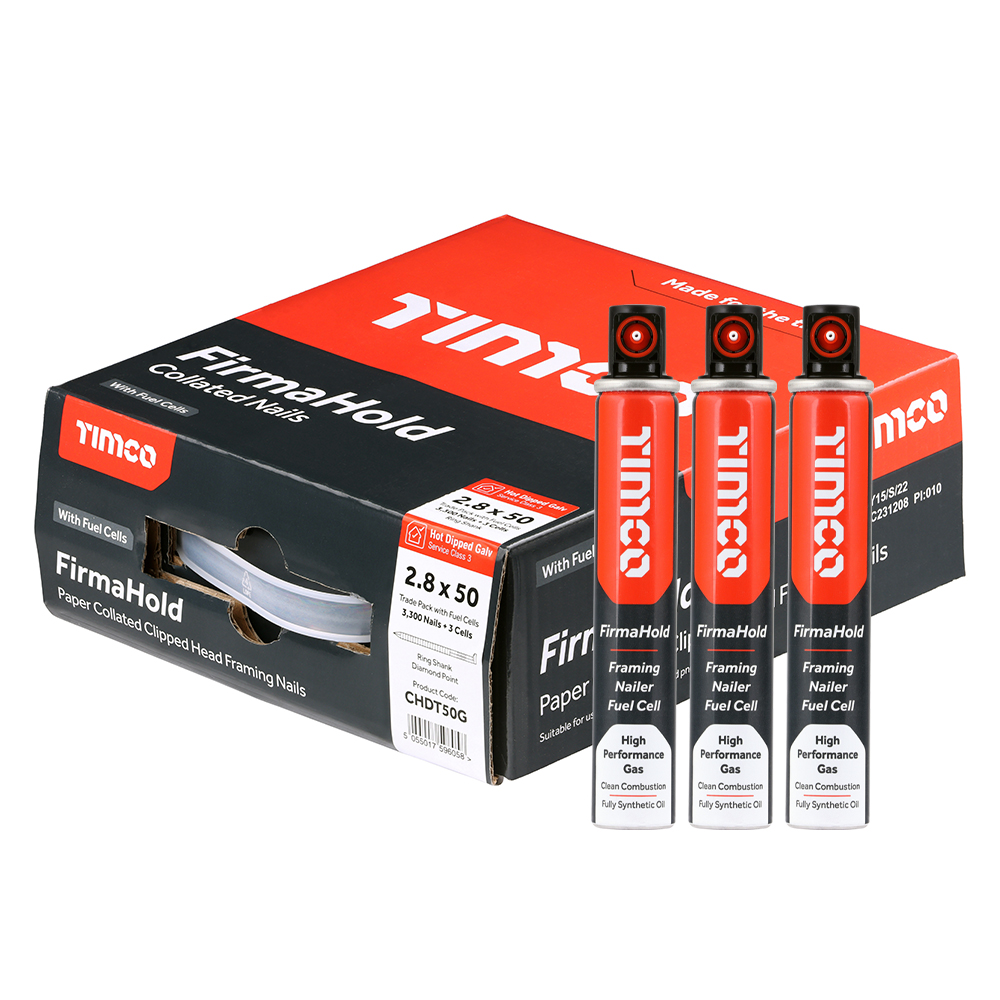

FirmaHold Collated Clipped Head Nails & Fuel Cells - Trade Pack - Ring Shank - Hot Dipped Galvanised
2.8 x 50/3CFC
- Product Code: CHDT50G
- Pack Type: Box
- Pack Quantity: 3300
- Barcode: 5055017596058
