Product Information
For use in structural applications using high quality paper collation for reduced nail jams. Rust protection to comply with building regulations and meet with service classes.
- 34° collation angle
- Diamond point for maximum penetration
- Clipped head to increase the number of nails per strip and therefore reduce tool loading times
- Suitable for indoor and covered outdoor applications
- Conforms to Eurocode 5 and Service Class 2
- Ring shank type
Technical Specifications
Product Specifications
| Collation Angle | 34° |
| Finish | FirmaGalv + |
| Head Type | Clipped |
| Material | Carbon Steel |
| Nails Per Strip | 44 |
| Point Type | Diamond |
| Fuel Cell Quantity | 3 |
| Included Items | Fuel Cell 80ml (Qty 3) |
| Substrates | Timber Structure |
| Proper Shipping Name | Aerosols, flammable (each not exceeding 1 L capacity) |
Product Specification
| Fuel Cell Volume ml | 80 |
| Head Area mm | 35.4 |
| Length mm | 63 |
| Point Length mm | 4.94 |
| Size mm | 3.1 x 63 |
| Thread Length mm | 43.9 |
| Total Length mm | 63 |
| Shank Type | Ring |
| Type | Trade Pack |
| Corrosion Rating | 2 - Occasionally damp/wet, rural and sheltered areas |
| Indoor Outdoor Usage | Indoor |
| Pack Dimensions L x W x H mm | 266 x 236 x 100 |
| Pack Weight kg | 13.36 |
| Carton Qty Packs | 2 |
| Pallet Qty Packs | 72 |
| CE Standard Web | BS EN 14592:2008 |
| Eurocode | 5 |
| Service Class | 2 |
| Product Code | CPLT63RG |
| SKU Barcode | 5055331860576 |
Attribute Group 1
| Brand | TIMCO |

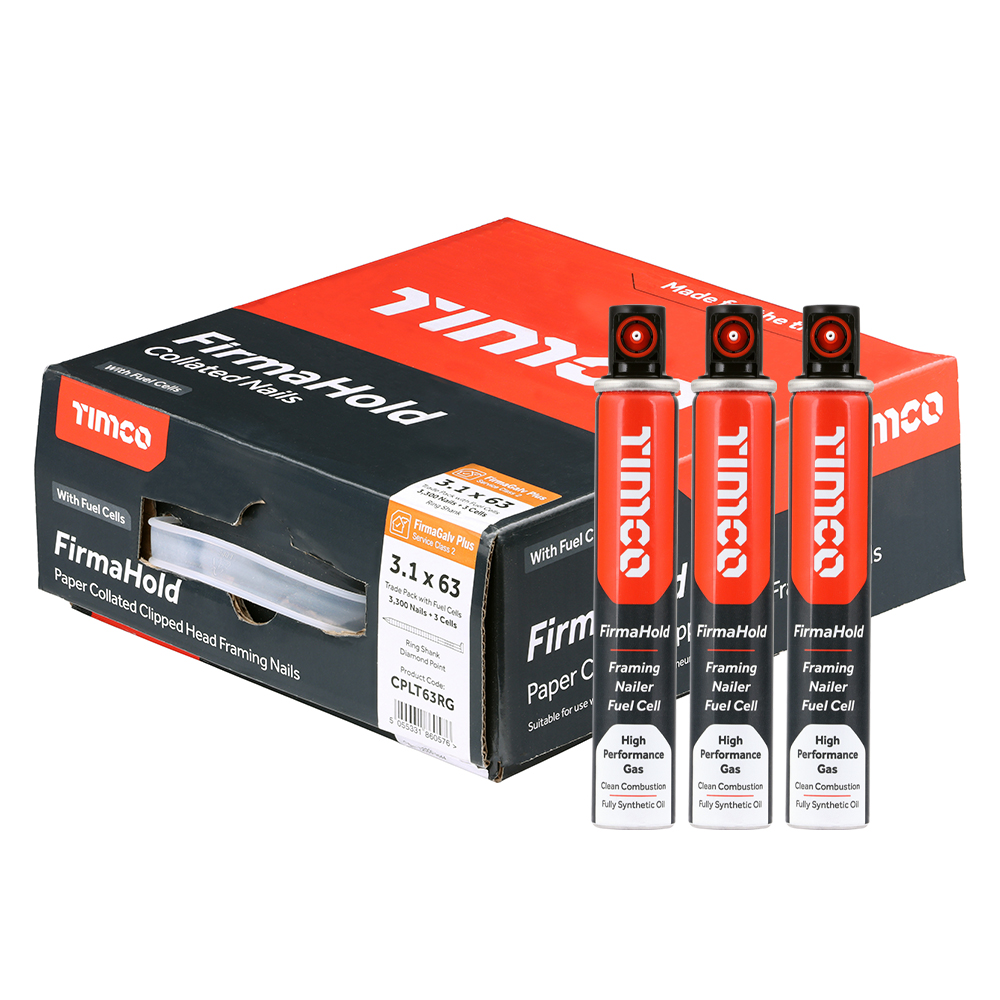

FirmaHold Collated Clipped Head Nails & Fuel Cells - Trade Pack - Ring Shank - FirmaGalv +
3.1 x 63/3CFC
- Product Code: CPLT63RG
- Pack Type: Box
- Pack Quantity: 3300
- Barcode: 5055331860576
