Product Information
Fantom is a revolutionary door stop and hold open device that alleviates the trip hazard of traditional door stops. A flush mounted pin is recessed into the floor and activated by a powerful magnet to locate the pin into the keep as the door passes over the pin when opening. To release, simply pull the door closed.
- Flush floor mounted
- Rare earth magnet induced hold-open device
- Alleviates trip hazards
- Available in various finishes to match existing ironmongery or flooring
- For doors with a door to floor gap of 3 - 10mm
Documents
Technical Specifications
Product Specification
| Strike Plate Size mm | 80 x 33 |
| Hole Depth mm | 50 |
| Pack Dimensions L x W x H mm | 80 x 110 x 160 |
| Pack Weight kg | 0.173 |
| Carton Qty Packs | 2 |
| Pallet Qty Packs | N/A |
| Offers | Clearance |
| Product Code | 200478 |
| SKU Barcode | 5056110812991 |
| Magnet Dia mm | 25 |
| Floor Sleeve Outer Dia x H mm | 28 x 43 |
| Drill Hole Dia mm | 14 |
Product Specifications
| Finish | Chrome |
| Contents | N33 Magnet (Qty 1), Stainless Steel Striker Plate (Qty 1), 4.2 x 25mm Stainless Steel Screws (Qty 2), Over Mould Pin (OMPIN) (Qty 1), Floor Sleeve (Qty 1), Installation Instructions |
Attribute Group 1
| Brand | TIMCO |

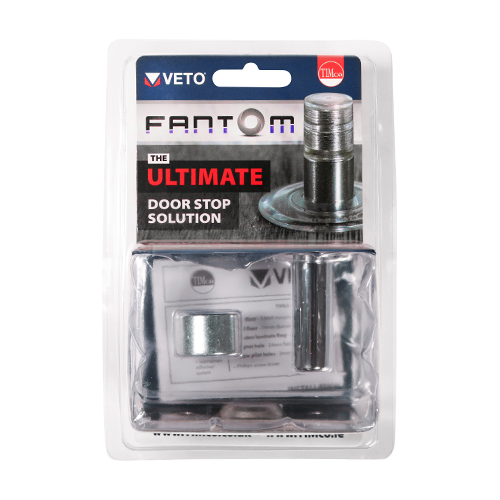

Fantom Door Stop - Chrome
25mm
- Product Code: 200478
- Pack Type: Clamshell
- Pack Quantity: 1
- Barcode: 5056110812991
