Product Information

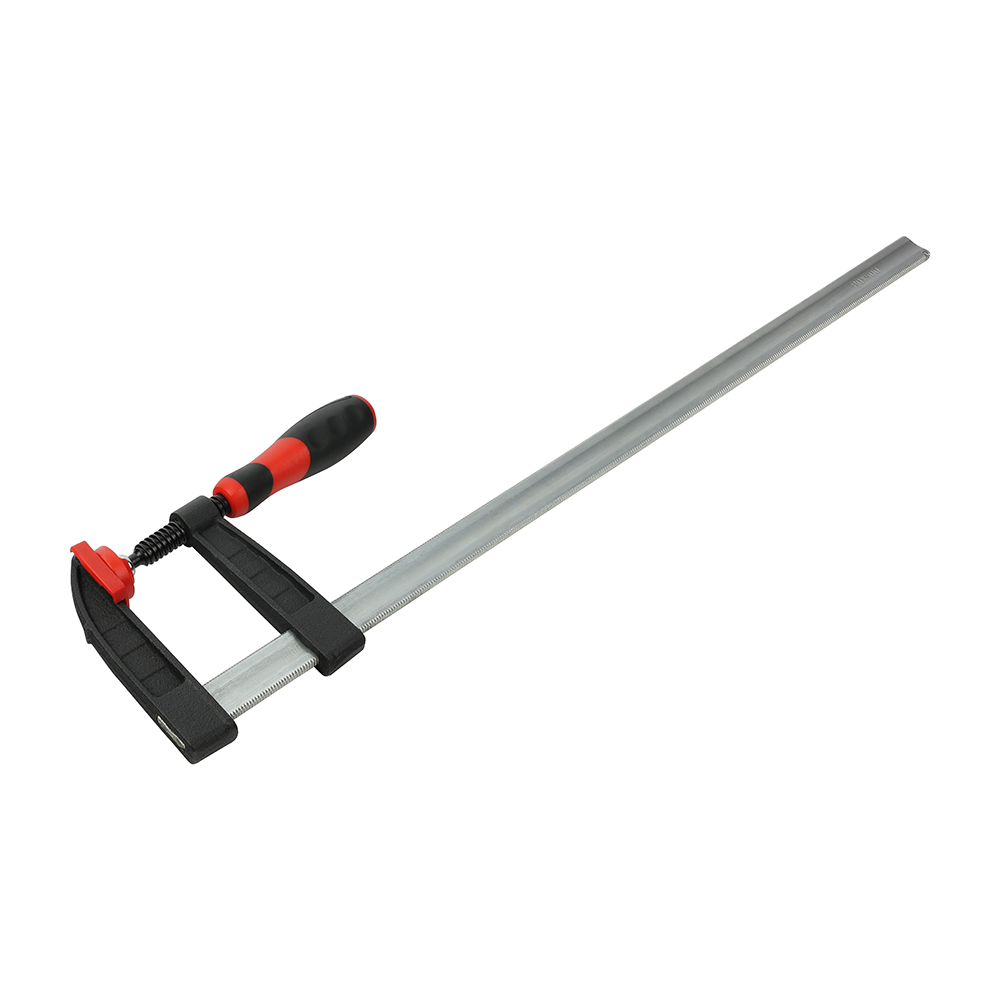

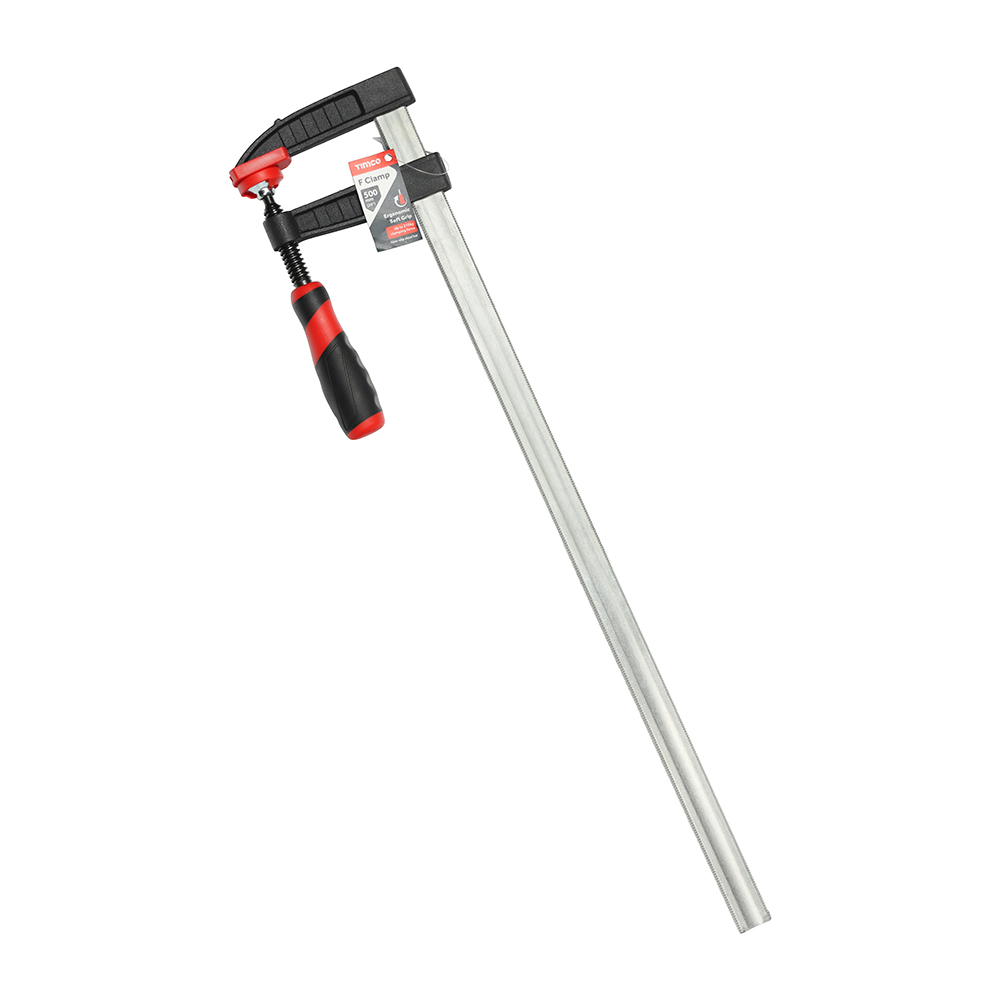

A heavy duty F clamp with super soft grip handles for ergonomic and comfortable use. Featuring a hardened slip resistant steel bar with solid jaws to provide a maximum clamping force of 270kg. Featuring soft plastic protective jaws to help prevent damage to the workpiece.
- Clamping force up to 270kg
- Ergonomic soft grip handles
- Non-slip steel bar
Documents
Technical Specifications
Product Specification
| Jaw Depth inch | 3 1/8 |
| Jaw Depth mm | 80 |
| Jaw Opening inch | 20 |
| Jaw Opening mm | 500 |
| Size inch | 20 |
| Size mm | 500 |
| Clamp Type | F Clamp |
| Clamping Capacity mm | 500 |
| Clamping Capacity inch | 20 |
| Clamping Force kg | 270 |
| Pack Dimensions L x W x H mm | 582 x 133 x 30 |
| Pack Weight kg | 0.98 |
| Carton Qty Packs | 10 |
| Pallet Qty Packs | N/A |
| Product Code | 468145 |
| SKU Barcode | 5056110860756 |
Product Specifications
| Material | Hardened Carbon Steel |
Attribute Group 1
| Brand | TIMCO |
F Clamp
500mm
- Product Code: 468145
- Pack Type: Unit
- Pack Quantity: 1
- Barcode: 5056110860756
