Product Information

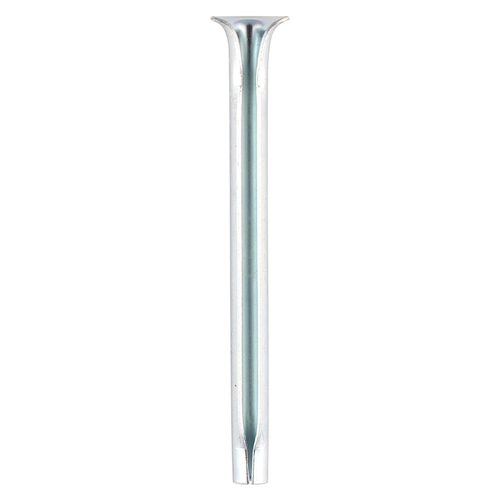

An underestimated rapid hammer-set anchor for concrete and masonry, ideal for interior timber-work such as battens and frames. Manufactured from a durable sprung steel.
- Special sprung steel to ensure uniform grip in substrate
- Zinc plated and passivated (3-5 microns)
Documents
Technical Specifications
Product Specification
| Length mm | 50 |
| Diameter mm | 6 |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Fixture Hole Diameter mm | 7 |
| Max Fixture Thickness mm | 30 |
| Min Drill Hole Depth mm | 40 |
| Pack Dimensions L x W x H mm | 15 x 90 x 133 |
| Pack Weight kg | 0.049 |
| Carton Qty Packs | 5 |
| Pallet Qty Packs | N/A |
| Product Code | 00660ENP |
| SKU Barcode | 5055893373774 |
| Size Dia x L mm | 6.0 x 60 |
| Drill Hole Dia mm | 6 |
Product Specifications
| Finish | Zinc |
| Material | Carbon Steel |
| Substrates | Concrete, Brick, Block |
Attribute Group 1
| Brand | TIMCO |

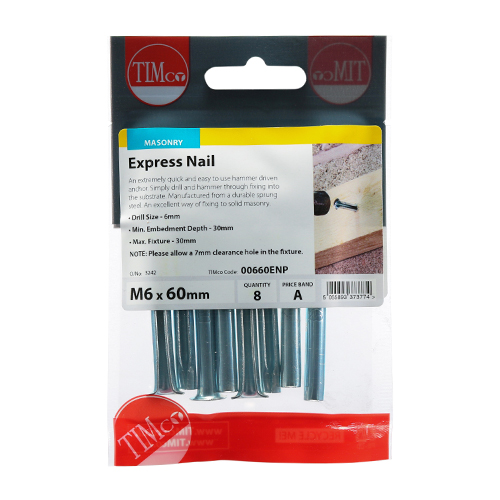

Express Nails - Zinc
6.0 x 60
- Product Code: 00660ENP
- Pack Type: TIMpac
- Pack Quantity: 8
- Barcode: 5055893373774
