Product Information

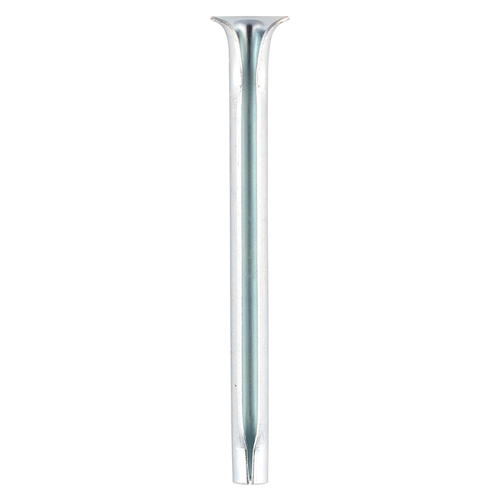

An underestimated rapid hammer-set anchor for concrete and masonry, ideal for interior timber-work such as battens and frames. Manufactured from a durable sprung steel.
- Special sprung steel to ensure uniform grip in substrate
- Zinc plated and passivated (3-5 microns)
Documents
Technical Specifications
Product Specification
| Length mm | 130 |
| Diameter mm | 8 |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Fixture Hole Diameter mm | 9 |
| Max Fixture Thickness mm | 90 |
| Min Drill Hole Depth mm | 50 |
| Pack Dimensions L x W x H mm | 140 x 94 x 63 |
| Pack Weight kg | 1.058 |
| Carton Qty Packs | 15 |
| Pallet Qty Packs | 540 |
| Product Code | 08130EN |
| SKU Barcode | 5055017565399 |
| Size Dia x L mm | 8.0 x 130 |
| Drill Hole Dia mm | 8 |
Product Specifications
| Finish | Zinc |
| Material | Carbon Steel |
| Substrates | Concrete, Brick, Block |
Attribute Group 1
| Brand | TIMCO |
Express Nails - Zinc
8.0 x 130
- Product Code: 08130EN
- Pack Type: Box
- Pack Quantity: 50
- Barcode: 5055017565399
