Product Information
Ideal for medium to high security doors in domestic and commercial applications. The lock features a heavy duty spring and can be used with both sprung and unsprung door handles and in conjunction with a euro profile cylinder.
Documents
Technical Specifications
Product Specification
| Backset mm | 56 |
| Bolt Throw mm | 15 |
| Centres mm | 47.5 |
| Faceplate Size H x W mm | 155 x 25 |
| Keep Size H x W mm | 152 x 29 |
| Lock Case Depth mm | 78 |
| Lock Case Height mm | 110 |
| Lock Case Size H x D mm | 110 x 78 |
| Lock Case Width mm | 15.5 |
| Lock Follower Backset mm | 56 |
| Screw Size mm | 4.0 x 25 |
| Size mm | 78 / 56 |
| Faceplate Type | Square |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Screws Required Per Pair | 4 |
| No of CSK Screws | 4 |
| Pack Dimensions L x W x H mm | 178 x 122 x 36 |
| Pack Weight kg | 0.62 |
| Carton Qty Packs | 10 |
| Pallet Qty Packs | 500 |
| BS EN Classification | 2M410F2BA10 |
| CE Standard Web | BS EN 12209:2003 |
| Certifire Number | CF5531 |
| Fire Rating | 30 & 60 Minutes |
| Product Code | 675852 |
| SKU Barcode | 5056110837437 |
| Screw Size imp | 8 x 1 |
| Rec Screw Dia mm | 4.0 |
Product Specifications
| Finish | Satin Nickel |
Attribute Group 1
| Brand | TIMCO |

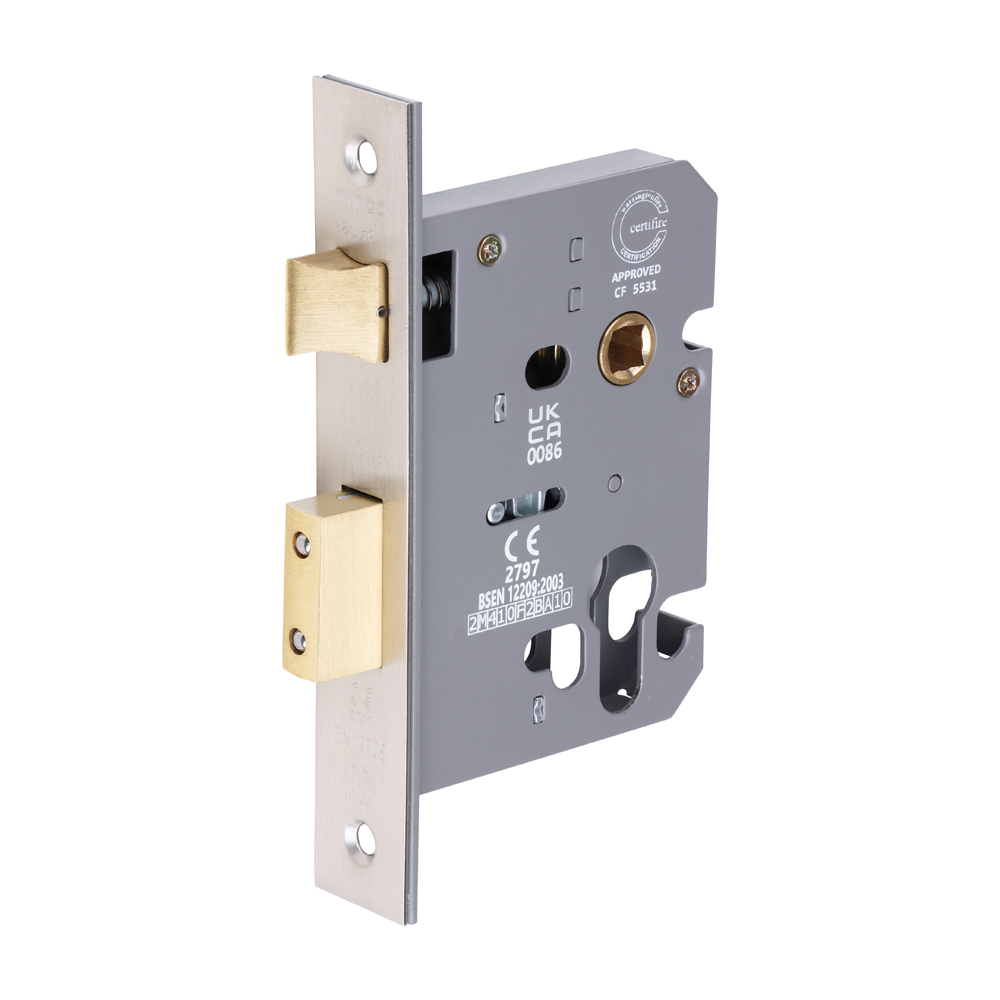

Euro Sashlock - Satin Nickel
78 case / 56 backset
- Product Code: 675852
- Pack Type: Box
- Pack Quantity: 1
- Barcode: 5056110837437
