Product Information

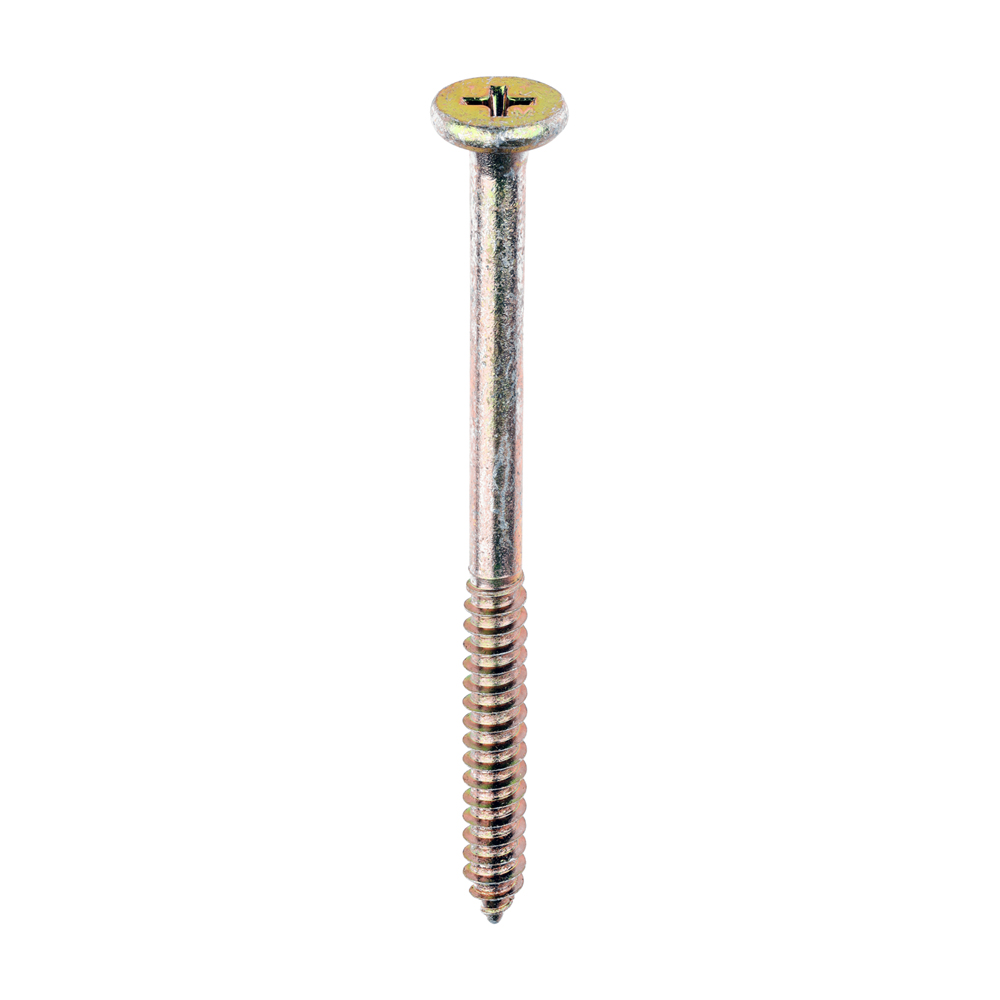

Mechanical jointing screw with special truncated head for fixing either frame to frame or frame to mullions.
Documents
Technical Specifications
Product Specification
| Length mm | 65 |
| Diameter mm | 4.8 |
| Size mm | 4.8 x 65 |
| Finish | Zinc & Yellow |
| Head Type | Shallow Pan Countersunk |
| Material | Carbon Steel |
| Point Type | AB Point |
| Recess Type | Phillips |
| Thread Coverage | Partially Threaded |
| Thread Type | Self-Tapping |
| Corrosion Rating | 2 - Occasionally damp/wet, rural and sheltered areas |
| Driver Bit Size | PH2 |
| Substrates | PVCu |
| Pack Dimensions L x W x H mm | 136 x 94 x 94 |
| Pack Weight kg | 1.42 |
| Carton Qty Packs | 16 |
| Pallet Qty Packs | 384 |
| Approval | All tested to BS EN ISO 9227:2006. UKAS Accredited. In accordance with BS 7412 and both the BPF and GGF guidelines. |
| Product Code | 192Y |
| SKU Barcode | 5055017528752 |
| Thread Dia mm | 4.8 |
Attribute Group 1
| Brand | TIMCO |

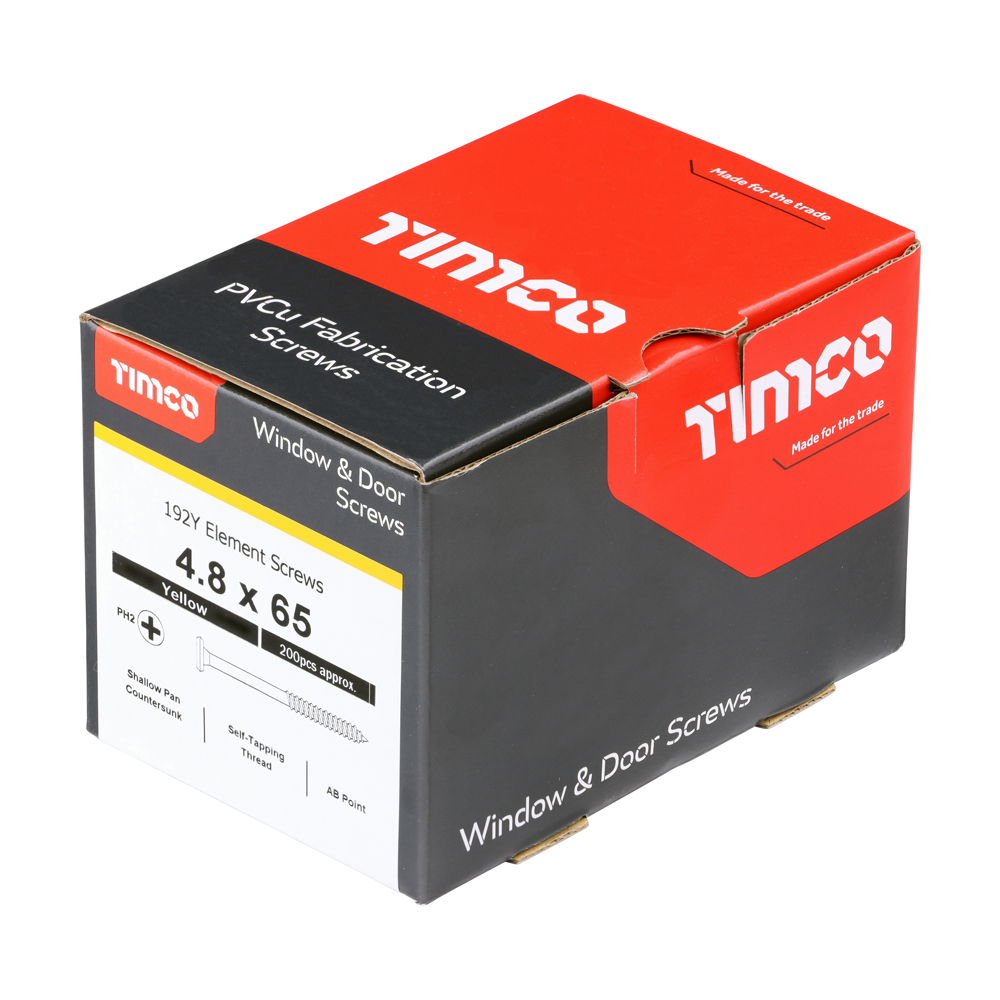

Element Screws - Shallow Pan Countersunk - PH - Self-Tapping Thread - AB Point - Yellow
4.8 x 65
- Product Code: 192Y
- Pack Type: Box
- Pack Quantity: 200
- Barcode: 5055017528752
