Product Information
A simple yet reliable latch for use in domestic applications along with well sprung door handles.
Documents
Technical Specifications
Product Specification
| Backset mm | 57.5 |
| Faceplate Size H x W mm | 59 x 27 |
| Keep Size H x W mm | 56 x 27 |
| Lock Case Depth mm | 79.5 |
| Lock Case Height mm | 20 |
| Lock Case Size H x D mm | 20 x 79.5 |
| Lock Case Width mm | 15 |
| Lock Follower Backset mm | 57.5 |
| Screw Size mm | 4.0 x 25 |
| Size mm | 79.5 / 57.5 |
| Faceplate Type | Square |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Screws Required Per Pair | 4 |
| No of CSK Screws | 4 |
| Pack Dimensions L x W x H mm | 112 x 74 x 27 |
| Pack Weight kg | 0.098 |
| Carton Qty Packs | 10 |
| Pallet Qty Packs | 2400 |
| Product Code | 675647 |
| SKU Barcode | 5056110837499 |
| Screw Size imp | 8 x 1 |
| Rec Screw Dia mm | 4.0 |
Product Specifications
| Finish | Nickel |
| Material | Zinc |
Attribute Group 1
| Brand | TIMCO |

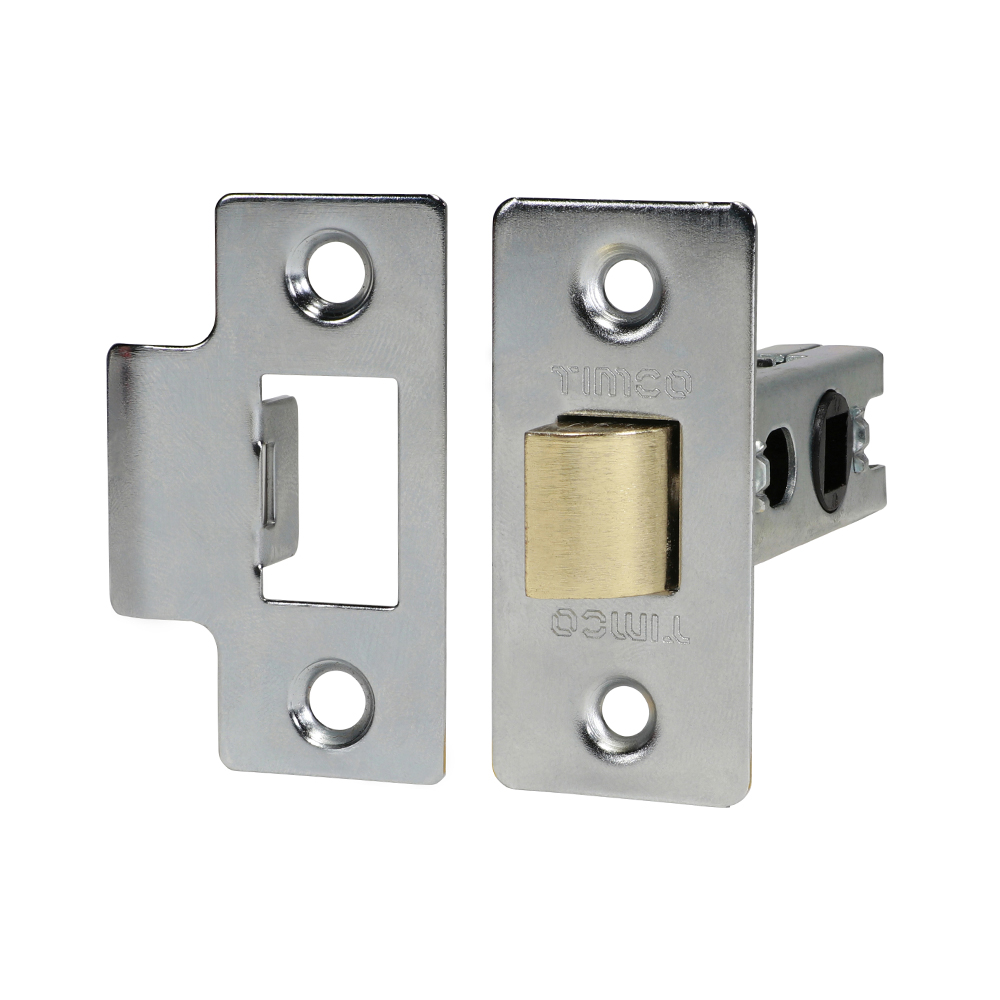

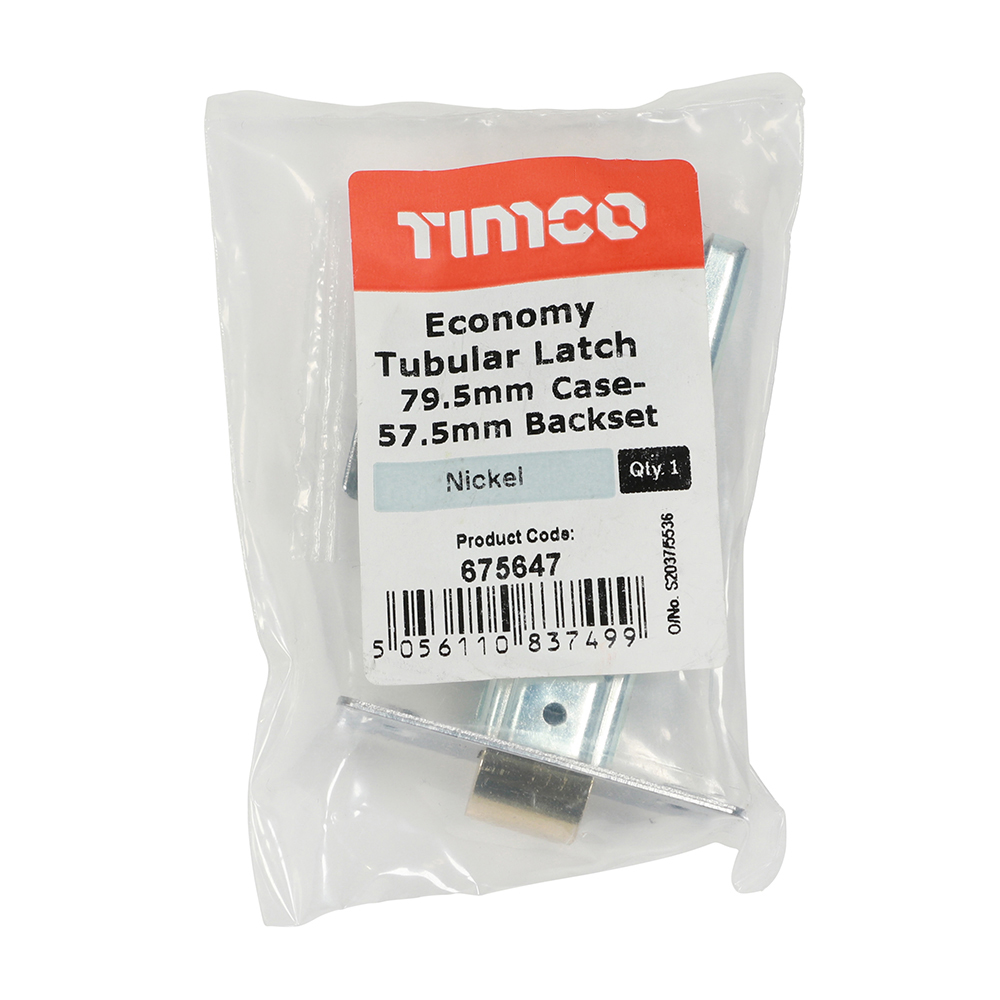

Economy Tubular Latch - Nickel
79.5 case / 57.5 backset
- Product Code: 675647
- Pack Type: Plain Bag
- Pack Quantity: 1
- Barcode: 5056110837499
