Product Information
Self-drilling point to aid fixing plasterboard to wall/ceiling track systems with a max. of 2.0mm thickness.
- Phillips No.2 recess for a positive drive
- Bugle head to reduce likelihood of damaging the board surface
- No.2 drill point gives excellent drilling performance into thicker gauge steel (2.0mm).
- Fire Classification - A1
Documents
Technical Specifications
Product Specification
| Length mm | 25 |
| Diameter mm | 3.5 |
| Size mm | 3.5 x 25 |
| Thread Length mm | 20 |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Max Drilling Thickness mm | 2 |
| Pack Dimensions L x W x H mm | 135 x 90 x 90 |
| Pack Weight kg | 1.48 |
| Carton Qty Packs | 16 |
| Pallet Qty Packs | 384 |
| CE Standard Web | BS EN 14566:2008 |
| Product Code | 00025PSDD |
| SKU Barcode | 5055017520541 |
| Thread Dia mm | 3.5 |
Product Specifications
| Finish | Zinc |
| Head Type | Bugle |
| Material | Carbon Steel |
| Point Type | Self-Drilling |
| Recess Type | Phillips |
| Thread Coverage | Fully Threaded |
| Thread Type | Self-Tapping |
| Driver Bit Size | PH2 |
| Included Items | PH2 S2 Bit (Qty 1) |
| Substrates | Thin Sheet Metal, Drywall |
Attribute Group 1
| Brand | TIMCO |

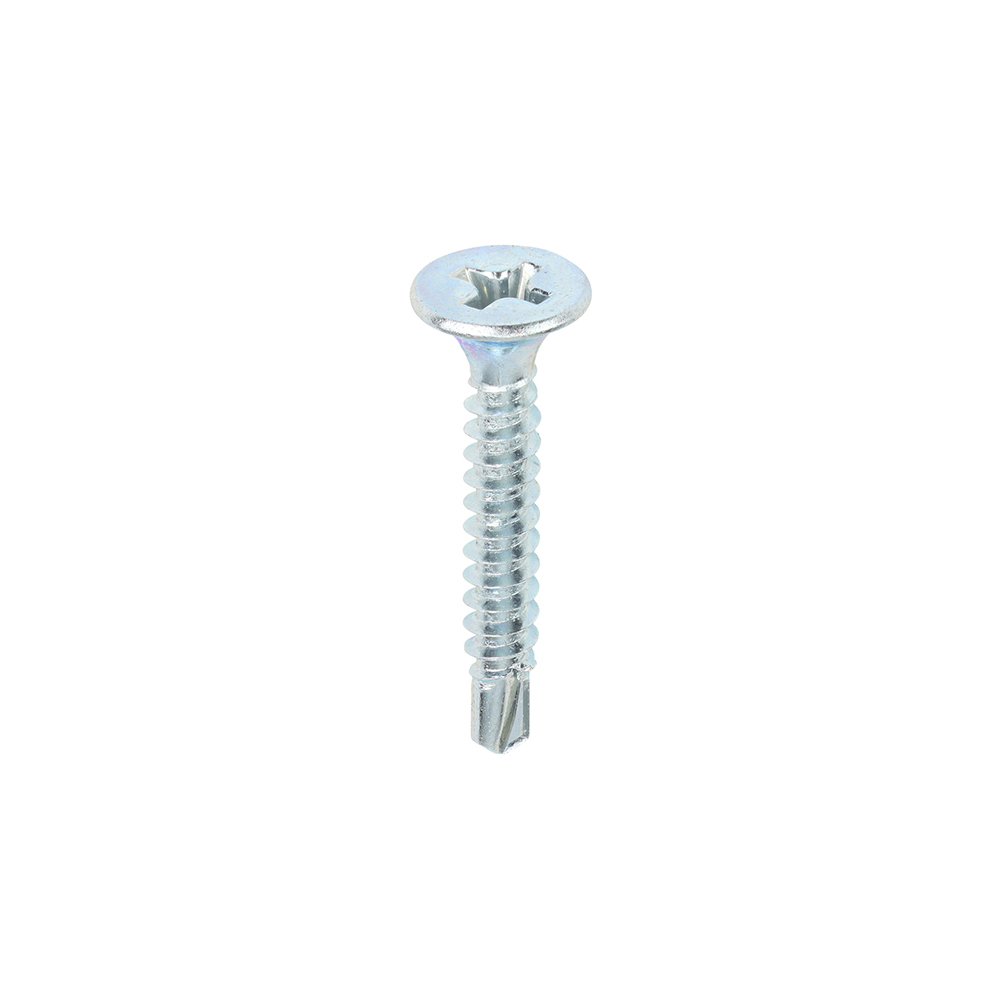

Drywall Screws - PH - Bugle - Self Drilling - Zinc
3.5 x 25
- Product Code: 00025PSDD
- Pack Type: Box
- Pack Quantity: 1000
- Barcode: 5055017520541
