Product Information
Used to secure plasterboard to drywall and ceiling track systems with a max. of 0.6mm thickness. NOTE: Partially threaded.
- Phillips No.2 recess for a positive drive
- Bugle head to reduce likelihood of damaging the board surface
- 25° super sharp point for ease of penetration
- 60° twin-thread offers excellent pull-out values and insertion speed
- Fire Classification - A1
Documents
Technical Specifications
Product Specification
| Length inch | 2 7/8 |
| Length mm | 75 |
| Diameter mm | 4.2 |
| Size mm | 4.2 x 75 |
| Thread Length mm | 50 |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Max Drilling Thickness mm | 0.6 |
| Pack Dimensions L x W x H mm | 190 x 130 x 90 |
| Pack Weight kg | 2.44 |
| Carton Qty Packs | 8 |
| Pallet Qty Packs | 192 |
| CE Standard Web | BS EN 14566:2008 |
| Product Code | 00075DRY |
| SKU Barcode | 5055017510085 |
| Thread Dia mm | 4.2 |
Product Specifications
| Colour | Dark Grey |
| Finish | Dark Grey Phosphate |
| Head Type | Bugle |
| Material | Carbon Steel |
| Point Type | 25° Sharp |
| Recess Type | Phillips |
| Thread Coverage | Partially Threaded |
| Thread Type | Fine |
| Driver Bit Size | PH2 |
| Included Items | PH2 S2 Bit (Qty 1) |
| Substrates | Thin Sheet Metal, Drywall |
Attribute Group 1
| Brand | TIMCO |

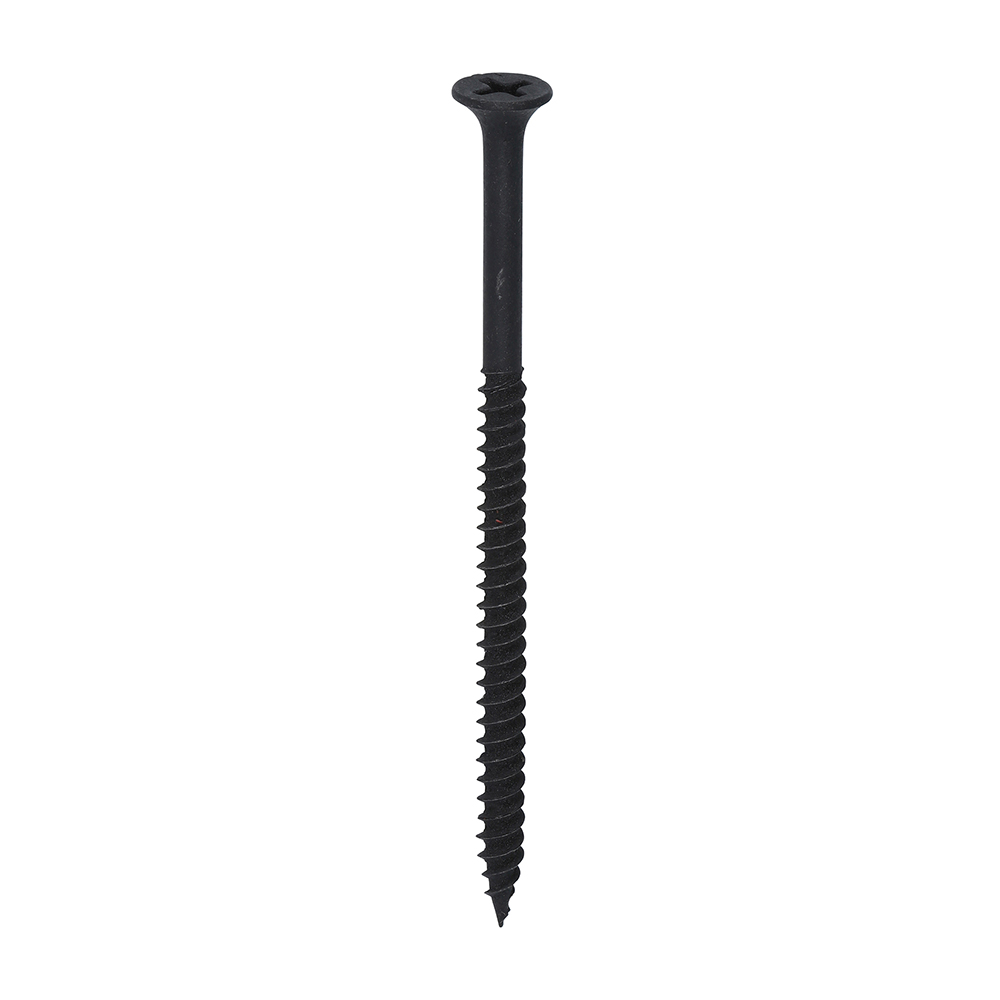

Drywall Screws - PH - Bugle - Fine Thread - Grey
4.2 x 75
- Product Code: 00075DRY

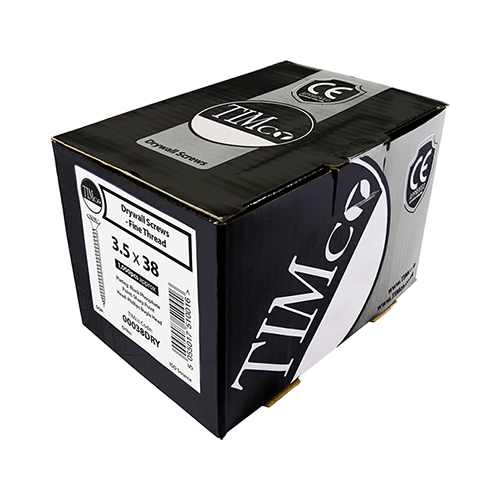

- Pack Type: Box
- Pack Quantity: 500
- Barcode: 5055017510085
