Product Information
Used to secure plasterboard to wall/ceiling track systems with a max of 0.6mm thickness.
- Phillips No.2 recess for a positive drive
- Bugle head to reduce likelihood of damaging the board surface
- 25° super sharp point for ease of penetration
- 60° twin-thread offers excellent pull-out values and insertion speed
- Fire Classification - A1
Documents
Technical Specifications
Product Specification
| Length inch | 1 1/4 |
| Length mm | 32 |
| Diameter mm | 3.5 |
| Size mm | 3.5 x 32 |
| Thread Length mm | 27 |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Max Drilling Thickness mm | 0.6 |
| Pack Dimensions L x W x H mm | 261 x 144 x 52 |
| Pack Weight kg | 0.61 |
| Carton Qty Packs | 5 |
| Pallet Qty Packs | 600 |
| CE Standard Web | BS EN 14566:2008 |
| Product Code | 00032DRYB |
| SKU Barcode | 5055331851017 |
| Thread Dia mm | 3.5 |
Product Specifications
| Finish | Black Phosphate |
| Head Type | Bugle |
| Material | Carbon Steel |
| Point Type | 25° Sharp |
| Recess Type | Phillips |
| Thread Coverage | Fully Threaded |
| Thread Type | Fine |
| Driver Bit Size | PH2 |
| Substrates | Softwood, Thin Sheet Metal, Drywall |
Attribute Group 1
| Brand | TIMCO |

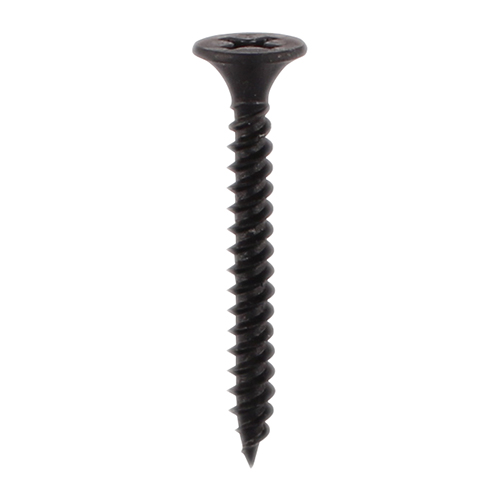

Drywall Screws - Fine Thread - PH - Bugle - Black
3.5 x 32
- Product Code: 00032DRYB

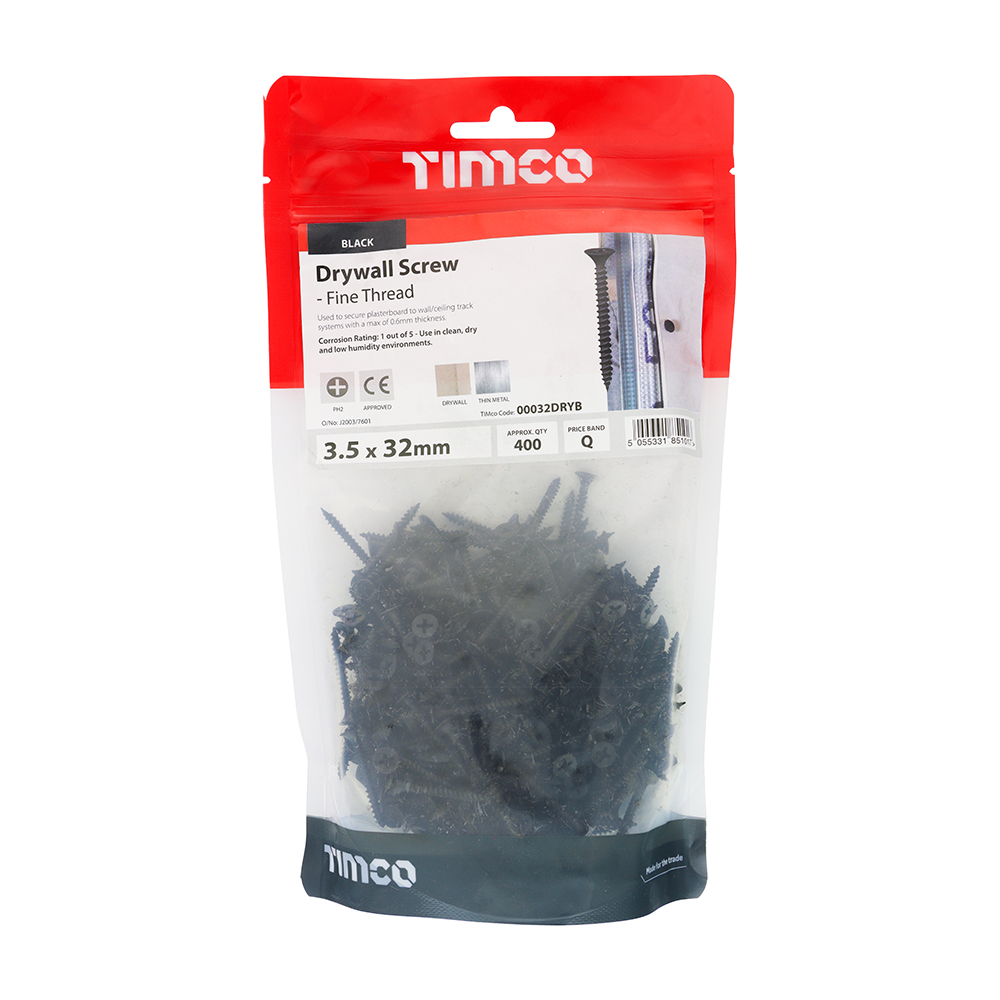

- Pack Type: TIMbag
- Pack Quantity: 400
- Barcode: 5055331851017
