Product Information
Designed for attaching dense board to timber stud work. The super sharp point and high low thread is specially designed for an excellent fixing into timber.
- Phillips No.2 recess for a positive drive
- Countersunk head for improved countersinking into the dense board
- High-Low thread for increased pull-out value into both timber and thin sheet metal
- Coarse thread for extreme hold
- Fire Classification - A1
Documents
Technical Specifications
Product Specification
| Length inch | 2 3/8 |
| Length mm | 55 |
| Diameter mm | 3.9 |
| Size mm | 3.9 x 55 |
| Thread Length mm | 50 |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Max Drilling Thickness mm | 0.6 |
| Pack Dimensions L x W x H mm | 234 x 138 x 90 |
| Pack Weight kg | 2.84 |
| Carton Qty Packs | 6 |
| Pallet Qty Packs | 144 |
| CE Standard Web | BS EN 14566:2008 |
| Product Code | 00055DRYD |
| SKU Barcode | 5055331802361 |
| Thread Dia mm | 3.9 |
Product Specifications
| Finish | Black Phosphate |
| Head Type | Reduced Countersunk |
| Material | Carbon Steel |
| Point Type | 25° Sharp |
| Recess Type | Phillips |
| Thread Coverage | Fully Threaded |
| Thread Type | High-Low |
| Driver Bit Size | PH2 |
| Included Items | PH2 S2 Bit (Qty 1) |
| Substrates | Softwood, Thin Sheet Metal, Drywall |
Attribute Group 1
| Brand | TIMCO |

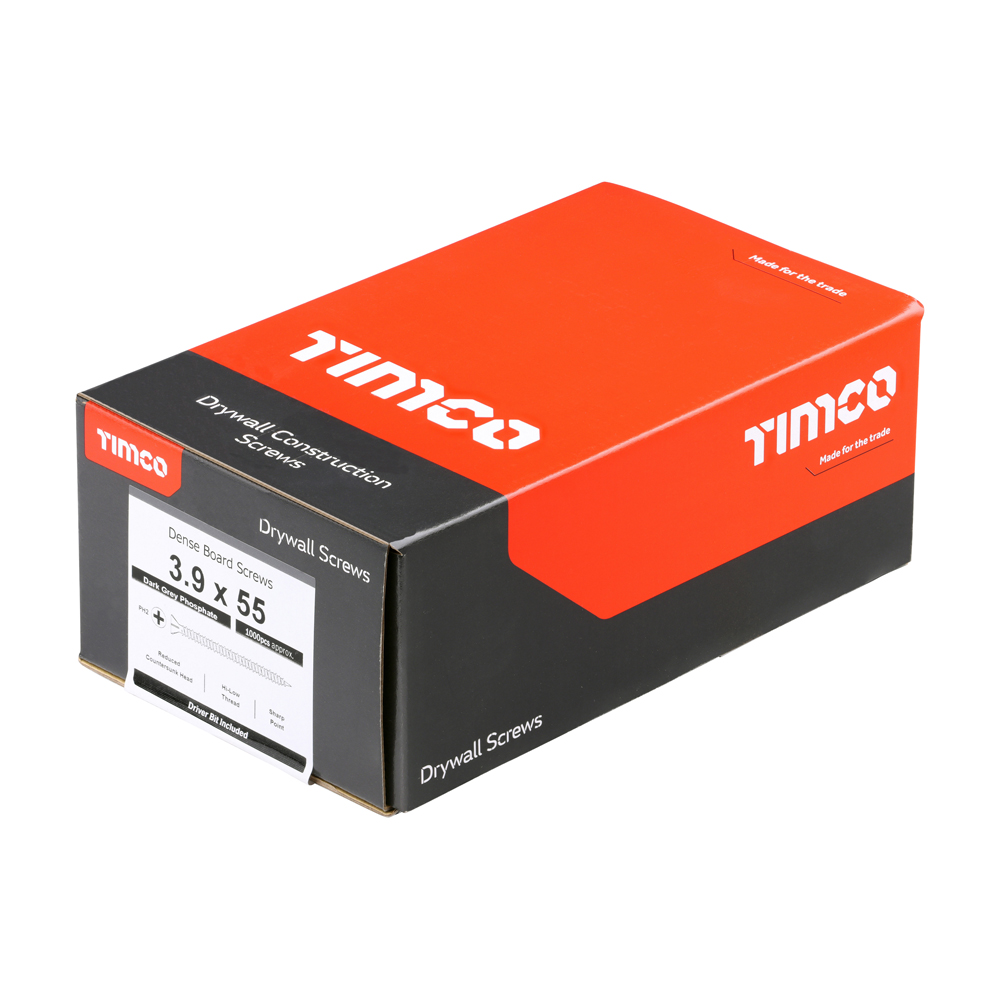

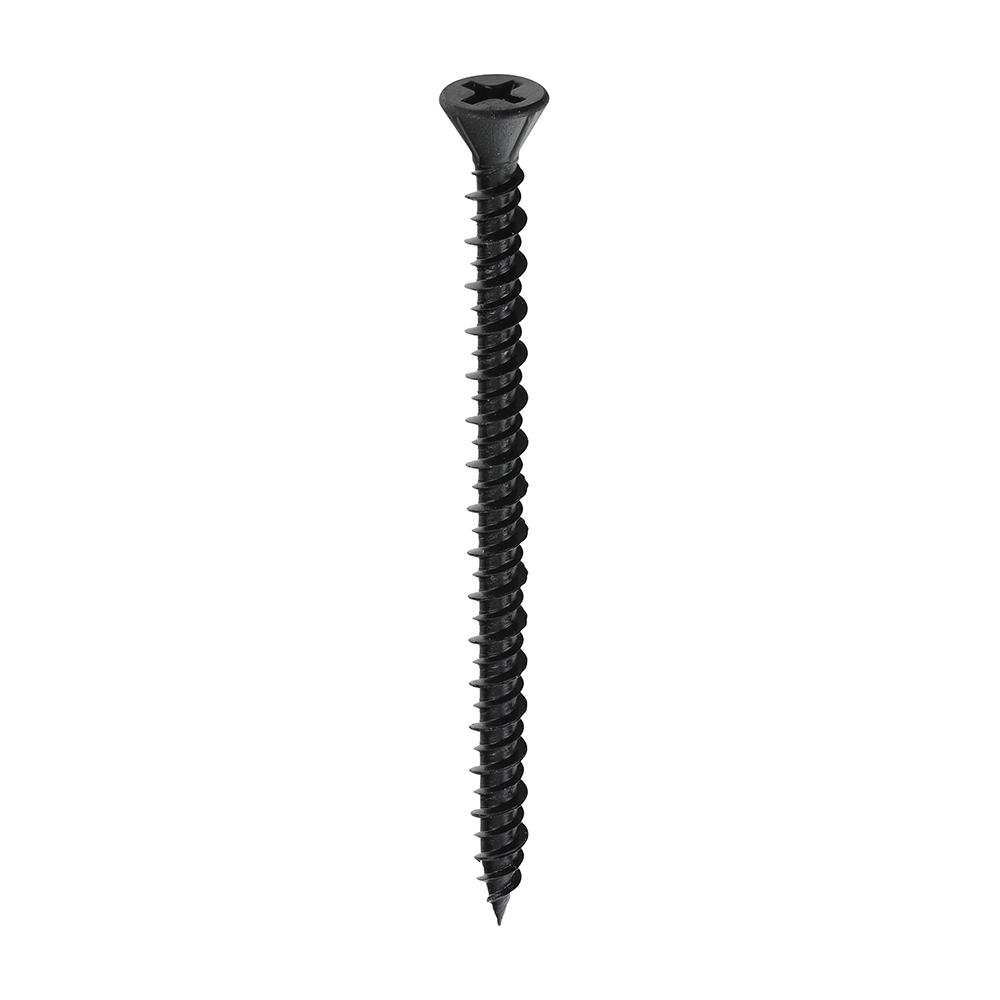

Drywall Dense Board Screws - PH - Reduced Countersunk - High-Low Thread - Black
3.9 x 55
- Product Code: 00055DRYD
- Pack Type: Box
- Pack Quantity: 1000
- Barcode: 5055331802361
