Product Information

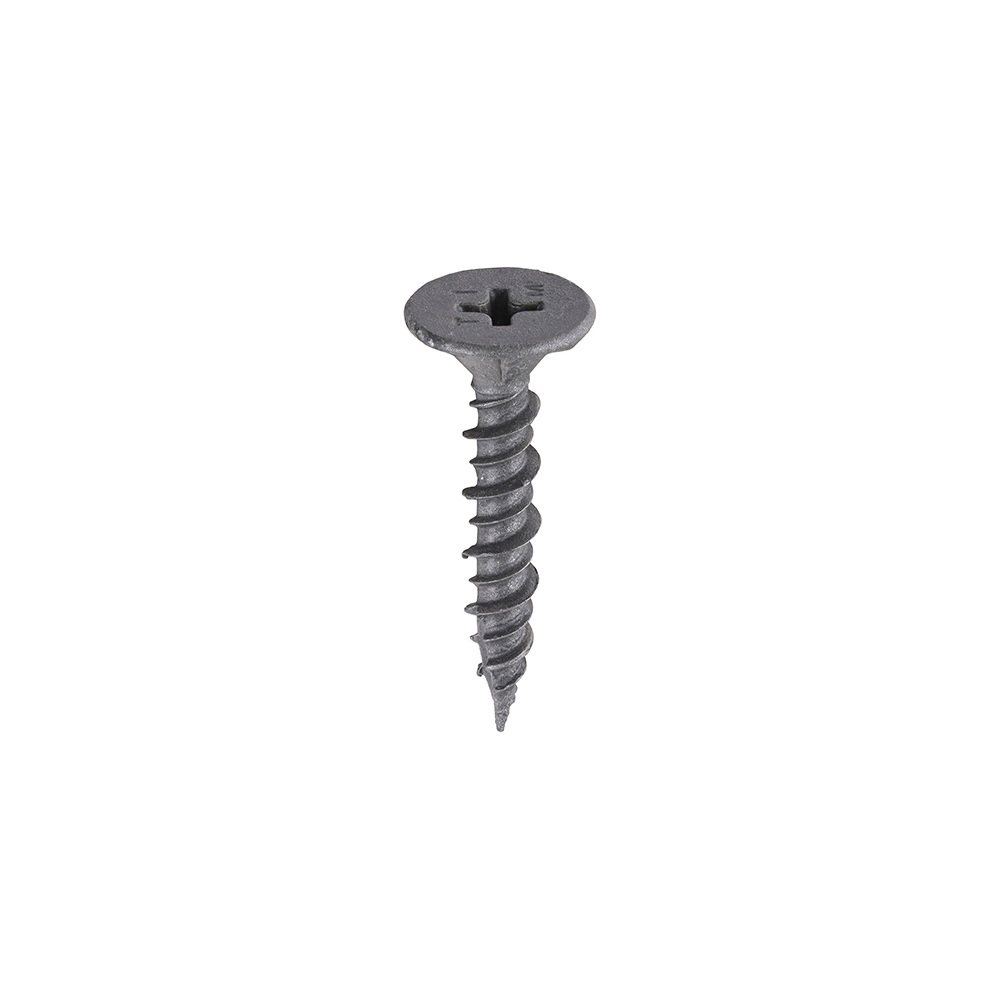

Specifically designed for fixing cement board to timber and thin sheet metal (max. 0.6mm). Self countersinking head for a secure and flush finish. Twin-cut point with a hi-low thread. Exterior grade coating for superior corrosion resistance in damp or corrosive environments, when compared to standard fasteners.
- Organic plating withstands 1,500 hours in salt spray test
- Twin-cut point - Ideal for 6mm tile cement boards
- Fixing to timber and thin sheet metal (max. 0.6mm)
- Twin-cut for rapid “pick-up” and reduce torque
- Ribs under the head for improved countersinking
- Fire Classification - A1
Documents
Technical Specifications
Product Specification
| Effective Thread Length mm | 21 |
| Head Height mm | 4 |
| Length inch | 1 |
| Length mm | 25 |
| Diameter mm | 4.2 |
| Size mm | 4.2 x 25 |
| Thread Length mm | 21 |
| Corrosion Rating | 3 - Urban & industrial areas with a low salt atmosphere |
| Max Drilling Thickness mm | 0.6 |
| Pack Dimensions L x W x H mm | 92 x 74 x 58 |
| Pack Weight kg | 0.4 |
| Carton Qty Packs | 50 |
| Pallet Qty Packs | 1200 |
| CE Standard Web | BS EN 14566:2008 |
| Product Code | 217789 |
| SKU Barcode | 5056110883403 |
| Size imp | 8 x 1 |
| Thread Dia mm | 4.2 |
| Inner Thread Dia mm | 2.5 |
| Head Dia mm | 10 |
Product Specifications
| Gauge | 8 |
| Colour | Grey |
| Finish | Exterior Plus |
| Head Type | Countersunk Wafer |
| Material | Carbon Steel |
| Point Type | Twin-Cut |
| Recess Type | Phillips |
| Thread Coverage | Fully Threaded |
| Thread Type | High-Low |
| Driver Bit Size | PH2 |
| Included Items | PH2 S2 Bit (Qty 1) |
| Substrates | Softwood, Thin Sheet Metal, Cement Board |
Attribute Group 1
| Brand | TIMCO |

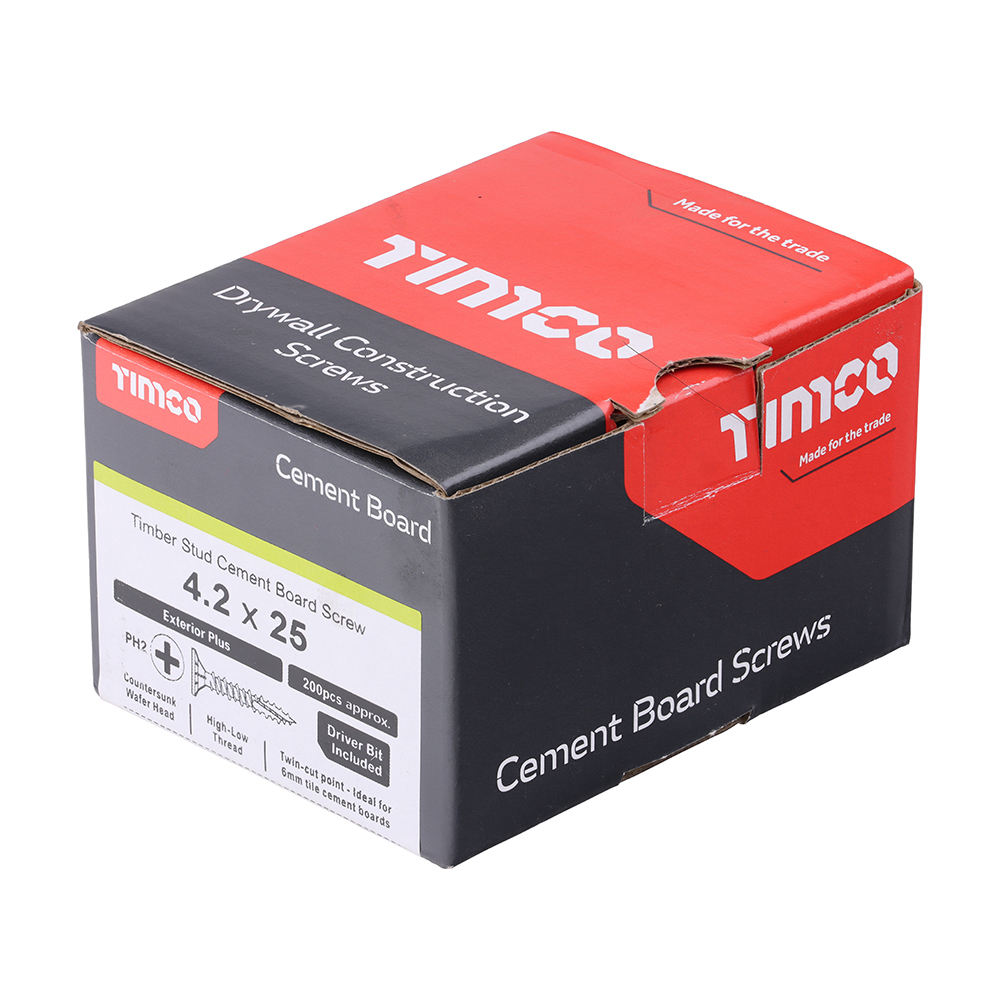

Drywall Construction Timber Stud Cement Board Screws - PH - Countersunk Wafer - Twin-Cut - Exterior - Silver Organic
4.2 x 25
- Product Code: 217789
- Pack Type: Box
- Pack Quantity: 200
- Barcode: 5056110883403
