Product Information
Specifically designed for fixing cement board steel dry-lining frames (max. 3.0mm). Self countersinking head for a secure and flush finish. Self-drilling point with a self-tapping thread. Exterior grade coating for superior corrosion resistance in damp or corrosive environments, when compared to standard fasteners.
- Organic plating withstands 1,500 hours in salt spray test
- Self-drilling point for fixing to light section steel (Max. 3mm)
- Ribs under the head for improved countersinking
- Fire Classification - A1
Documents
Technical Specifications
Product Specification
| Drill Tip Length mm | 5 |
| Effective Thread Length mm | 19 |
| Head Height mm | 4 |
| Length inch | 1 1/4 |
| Length mm | 32 |
| Diameter mm | 4.2 |
| Size mm | 4.2 x 32 |
| Thread Length mm | 23 |
| Drill Tip Angle degree | 110 |
| Drill Tip Width mm | 3.4 |
| Corrosion Rating | 3 - Urban & industrial areas with a low salt atmosphere |
| Max Drilling Thickness mm | 3 |
| Rec RPM | 1,800 - 2,500 |
| Pack Dimensions L x W x H mm | 92 x 72 x 58 |
| Pack Weight kg | 0.585 |
| Carton Qty Packs | 22 |
| Pallet Qty Packs | 1056 |
| CE Standard Web | BS EN 14566:2008 |
| Product Code | 217154 |
| SKU Barcode | 5056110815725 |
| Size imp | 8 x 1 1/4 |
| Thread Dia mm | 4.2 |
| Inner Thread Dia mm | 2.9 |
| Head Dia mm | 10 |
Product Specifications
| Gauge | 8 |
| Colour | Grey |
| Finish | Exterior Plus |
| Head Type | Countersunk Wafer |
| Material | Carbon Steel |
| Point Type | Self-Drilling |
| Recess Type | Phillips |
| Thread Coverage | Fully Threaded |
| Thread Type | 60° Self-Tapping |
| Driver Bit Size | PH2 |
| Included Items | PH2 S2 Bit (Qty 1) |
| Substrates | Steel, Cement Board |
Attribute Group 1
| Brand | TIMCO |

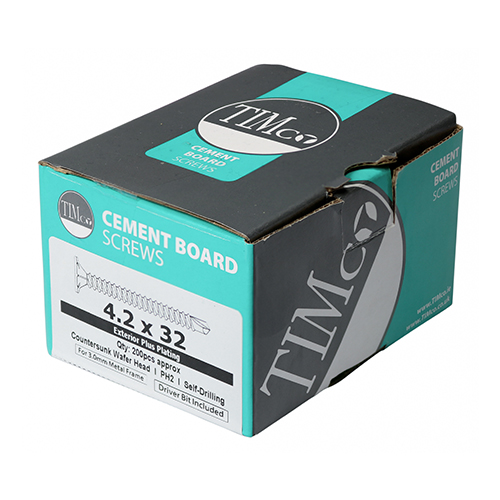

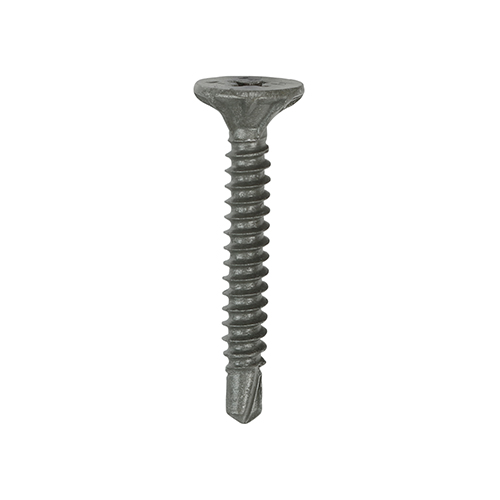

Drywall Construction Metal Stud Cement Board Screws - PH - Countersunk Wafer - Self-Drilling - Exterior - Silver Organic
4.2 x 32
- Product Code: 217154
- Pack Type: Box
- Pack Quantity: 200
- Barcode: 5056110815725
