Product Information

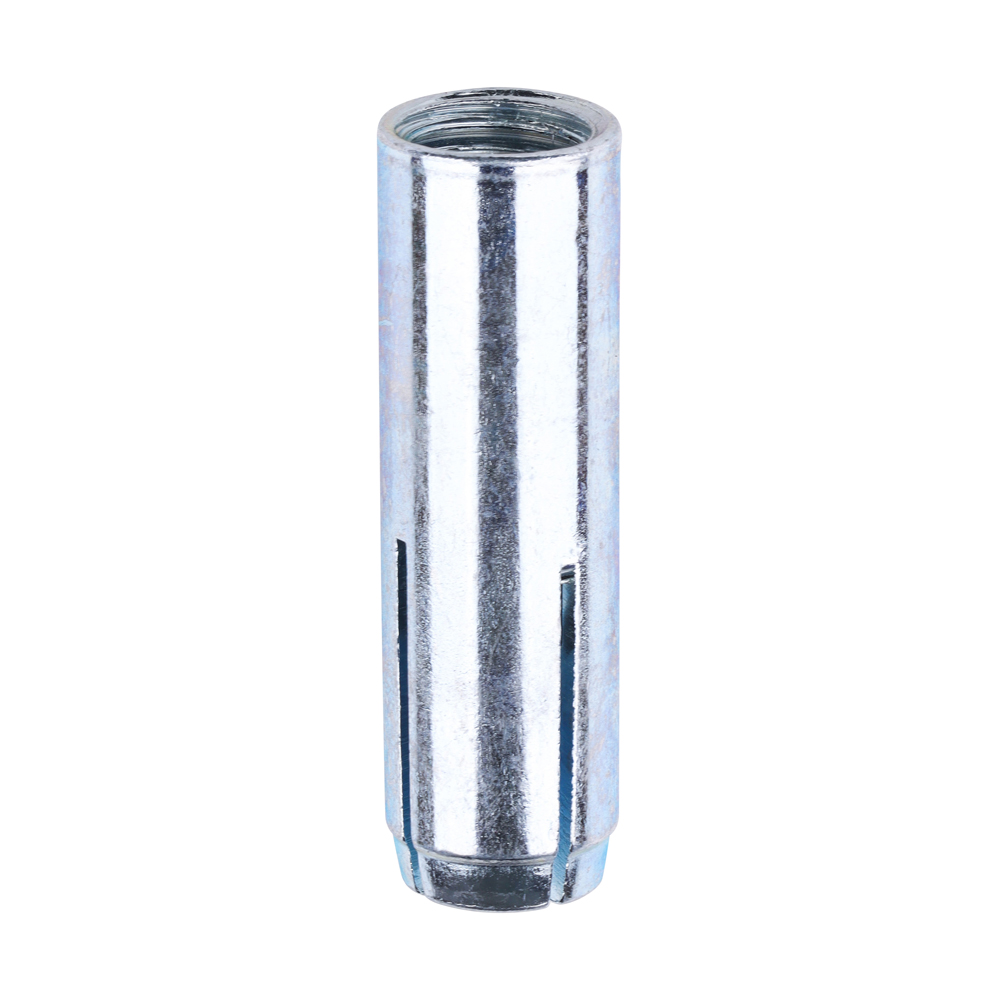

An internally threaded hammer set expansion anchor for heavy duty anchoring into concrete. This standard version can be inserted below the surface. Also known as wedge anchors.
- All steel, non-flammable fixing conforming to BS 7671 standard's 18th edition, which requires wiring systems to be supported by materials which are unlikely to prematurely collapse in the event of a fire.
Documents
Technical Specifications
Product Specification
| Anchor Length mm | 40 |
| Length mm | 40 |
| Thread Length mm | 15 |
| Finish | Zinc |
| Material | Carbon Steel |
| Thread Type | Metric |
| Type | Not Lipped |
| Centre Spacing mm | 120 |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Fixture Hole Diameter mm | 12 |
| Min Drill Hole Depth mm | 40 |
| Min Thread Length mm | 15 |
| Substrates | Concrete |
| Pack Dimensions L x W x H mm | 136 x 72 x 48 |
| Pack Weight kg | 1.1 |
| Carton Qty Packs | 12 |
| Pallet Qty Packs | 816 |
| Approval | BS 7671:2018 |
| Product Code | 10WA |
| SKU Barcode | 5055017563104 |
| Size Thread Dia x L mm | M10 x 40 |
| Thread Dia mm | M10 |
| Drill Hole Dia mm | 12 |
Attribute Group 1
| Brand | TIMCO |

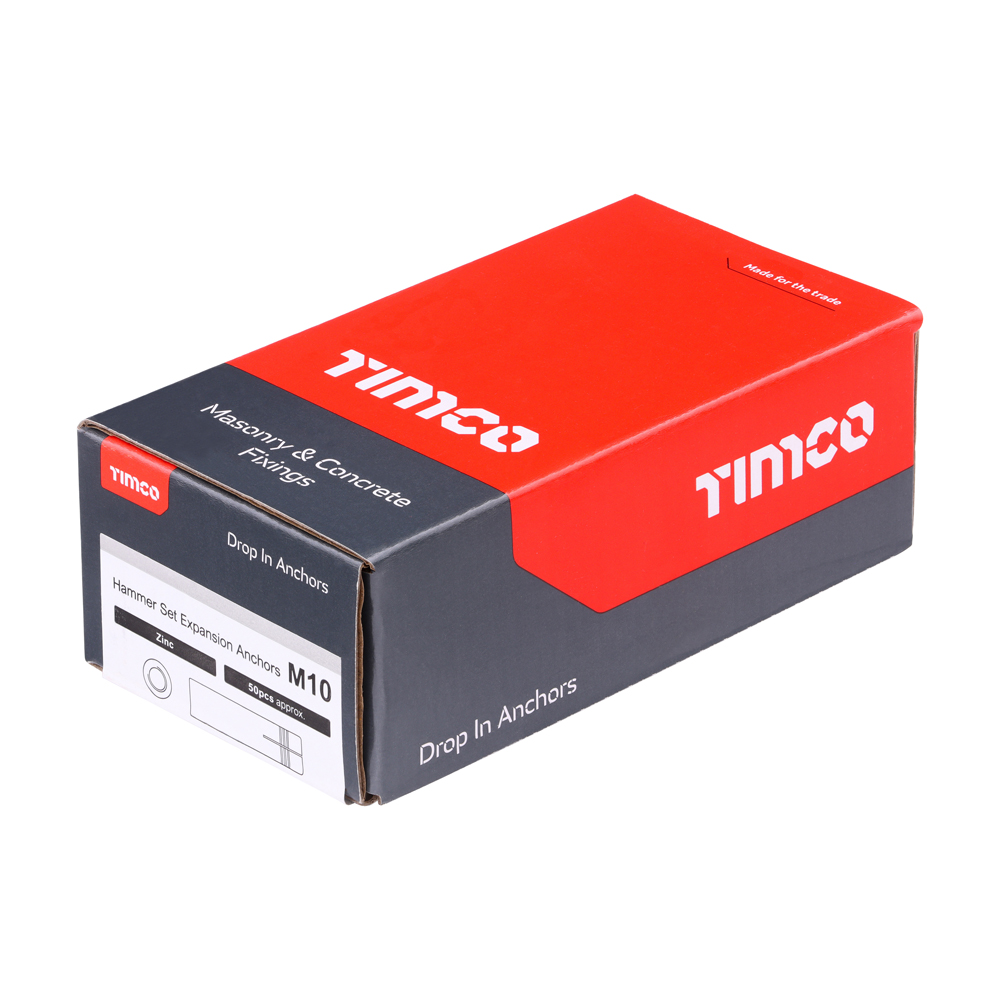

Drop In Anchors - Zinc
M10
- Product Code: 10WA
- Pack Type: Box
- Pack Quantity: 50
- Barcode: 5055017563104
