Product Information

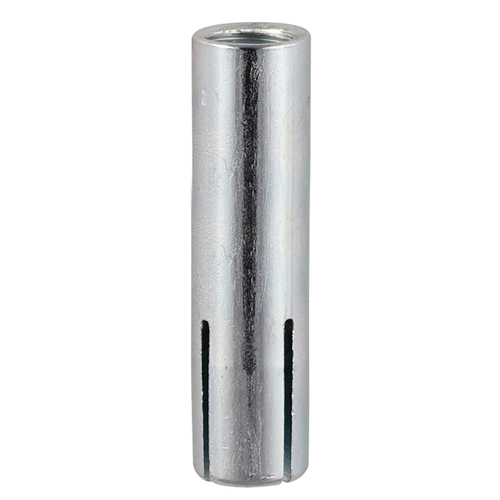

An internally threaded hammer set expansion anchor for heavy duty anchoring into concrete. This standard version can be inserted below the surface. Also known as wedge anchors.
- All steel, non-flammable fixing conforming to BS 7671 standard's 18th edition, which requires wiring systems to be supported by materials which are unlikely to prematurely collapse in the event of a fire.
Documents
Technical Specifications
Product Specification
| Anchor Length mm | 50 |
| Length mm | 50 |
| Thread Length mm | 20 |
| Type | Not Lipped |
| Centre Spacing mm | 150 |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Fixture Hole Diameter mm | 14 |
| Min Drill Hole Depth mm | 50 |
| Min Thread Length mm | 20 |
| Pack Dimensions L x W x H mm | 182 x 78 x 58 |
| Pack Weight kg | 2.58 |
| Carton Qty Packs | 6 |
| Pallet Qty Packs | 324 |
| Product Code | 12WA |
| SKU Barcode | 5055017563111 |
| Size Thread Dia x L mm | M12 x 50 |
| Thread Dia mm | M12 |
| Drill Hole Dia mm | 16 |
Product Specifications
| Finish | Zinc |
| Material | Carbon Steel |
| Thread Type | Metric |
| Substrates | Concrete |
| Approval | BS 7671:2018 |
Attribute Group 1
| Brand | TIMCO |
Drop In Anchors - Zinc
M12
- Product Code: 12WA
- Pack Type: Box
- Pack Quantity: 50
- Barcode: 5055017563111
