Product Information
Used when fixing roofing and cladding sheets to timber purlins.
- For medium duty rust protection
- Conforms to Eurocode 5 and service class 2
Documents
Technical Specifications
Product Specification
| Head Area mm | 115.98 |
| Length mm | 100 |
| Point Length mm | 6.33 |
| Size mm | 100 x 5.40 |
| Weight kg | 1 |
| Type | Drive Screw |
| Corrosion Rating | 2 - Occasionally damp/wet, rural and sheltered areas |
| Pack Dimensions L x W x H mm | 265 x 152 x 50 |
| Pack Weight kg | 1.02 |
| Carton Qty Packs | 5 |
| Pallet Qty Packs | 600 |
| CE Standard Web | BS EN 14592:2008 |
| Service Class | 2 |
| Product Code | DSN100B |
| SKU Barcode | 5055331856524 |
| Approx Pcs Per 1kg | 51 |
| Approx Qty pcs | 51 |
Product Specifications
| Finish | Galvanised |
| Head Type | Pan |
| Material | Carbon Steel |
| Substrates | Cladding |
Attribute Group 1
| Brand | TIMCO |

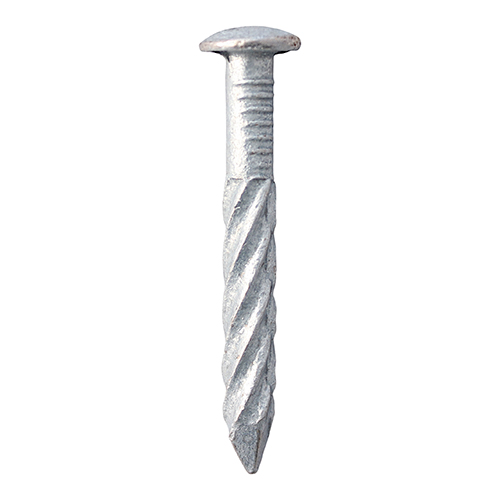

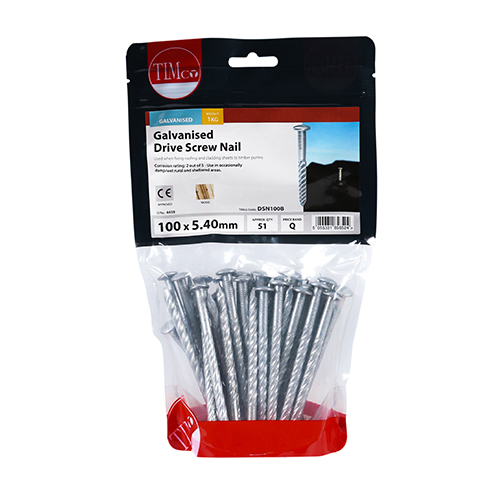

Drive Screws - Galvanised
100 x 5.40
- Product Code: DSN100B
- Pack Type: TIMbag
- Pack Quantity: 1
- Barcode: 5055331856524
