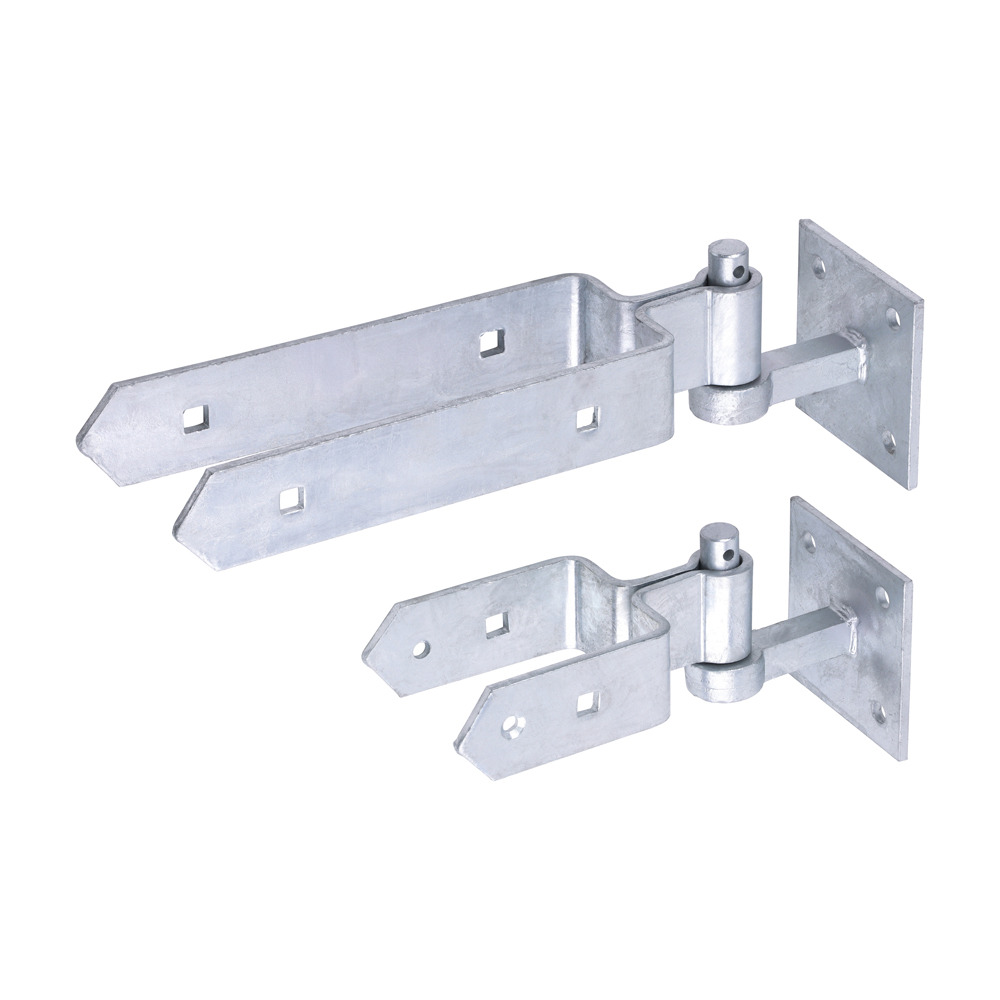

Product Image 1
Product Information
Ideal for use on fieldgates and driveway gates that are to be hung on timber, concrete or masonry posts. The hinge set provides exceptional support to the gate as the top band and bottom strap wrap around the gate and are fixed with cup square bolts to firmly secure in place. Depending on the weight distribution of the gate, the top or bottom pin can be mounted upside down to prevent unwanted removal of the gate. Fixings included.
Documents
Brochure Page
Technical Specifications
Product Specification
Bottom Strap L inch 6
Bottom Strap L mm 150
Carriage Bolt Size mm M10 x 95
Coach Screw Size mm M10 x 65
Hook Plate Size L x W mm 100 x 100
Nut Size mm M10
Strap Thickness mm 6
Top Strap L inch 12
Top Strap L mm 300
Washer Size mm M10
Type Double Strap
Washer Type Form A
Corrosion Rating 4 - Urban & industrial areas with a moderate salt atmosphere
CSK Screw Size mm 6.0 x 40
No of Nuts 3
No of CSK Screws 2
No of Coach Screws 8
No of Carriage Bolts 3
No of Washers 3
To Suit Gate Thickness inch 3
To Suit Gate Thickness mm 75
To Suit Gate Width ft 03/04/2024
To Suit Gate Width mm 900 - 1200
Pack Dimensions L x W x H mm 580 x 196 x 99
Pack Weight kg 4.326
Carton Qty Packs 4
Pallet Qty Packs 120
Product Code DSFH300G
SKU Barcode 5055893361221
Pin Dia mm 19
Pin Dia inch 3/4
To Fit Carriage Bolt Dia mm M10
Product Specifications
Finish Hot Dipped Galvanised
Material Carbon Steel
Nut Type Hex Full
Contents 300mm Top Strap (Qty 1), 150mm Bottom Strap (Qty 1), 100 x 100mm Hook on Plates (Qty 2), M10 x 95mm Carriage Bolts (Qty 3), M10 Full Hex Nuts (Qty 3), M10 Washers (Qty 3), M10 x 65mm Coach Screws (Qty 8), 6.0 x 40mm TIMco Exterior Woodscrews (Qty 2)
Attribute Group 1
Brand TIMCO

Double Strap Hinge Set with Hook on Plate - Hot Dipped Galvanised

300mm

  • Product Code: DSFH300G
  • Pack Type: Plain Bag
  • Pack Quantity: 1
  • Barcode: 5055893361221
