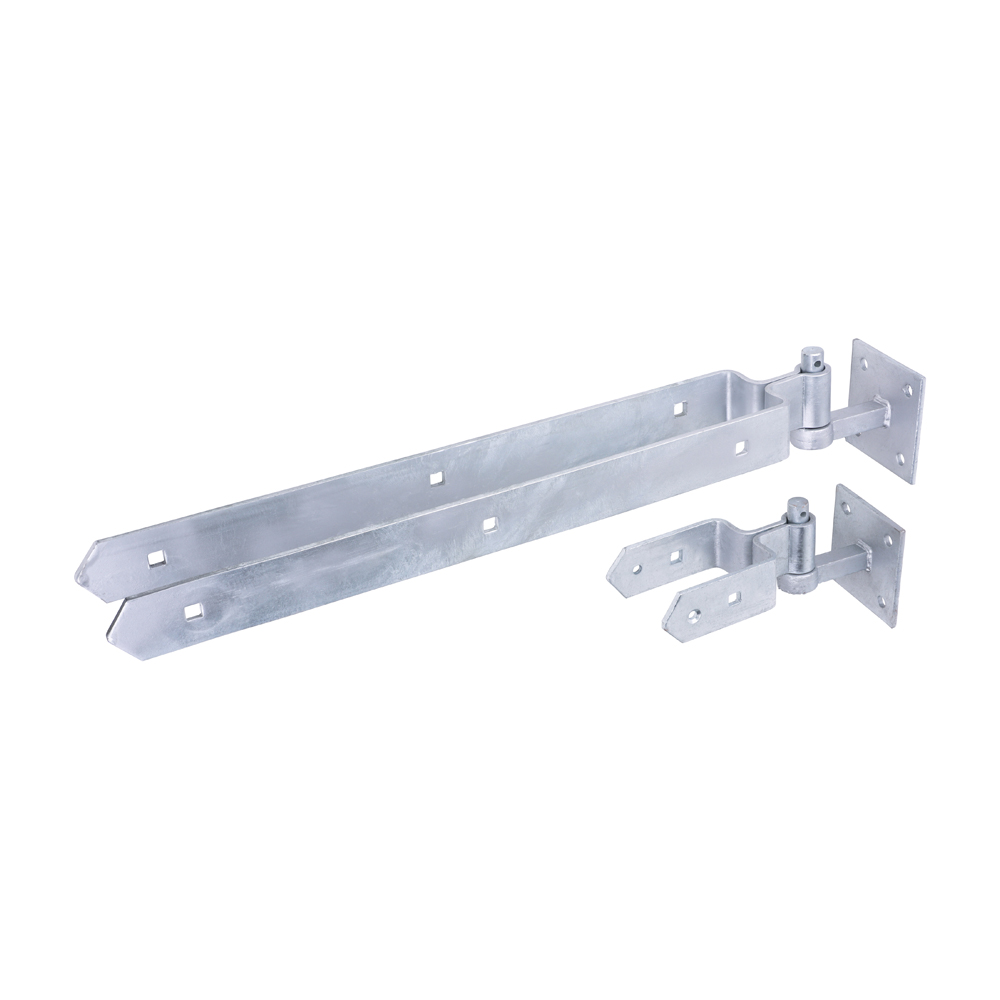

Product Image 1

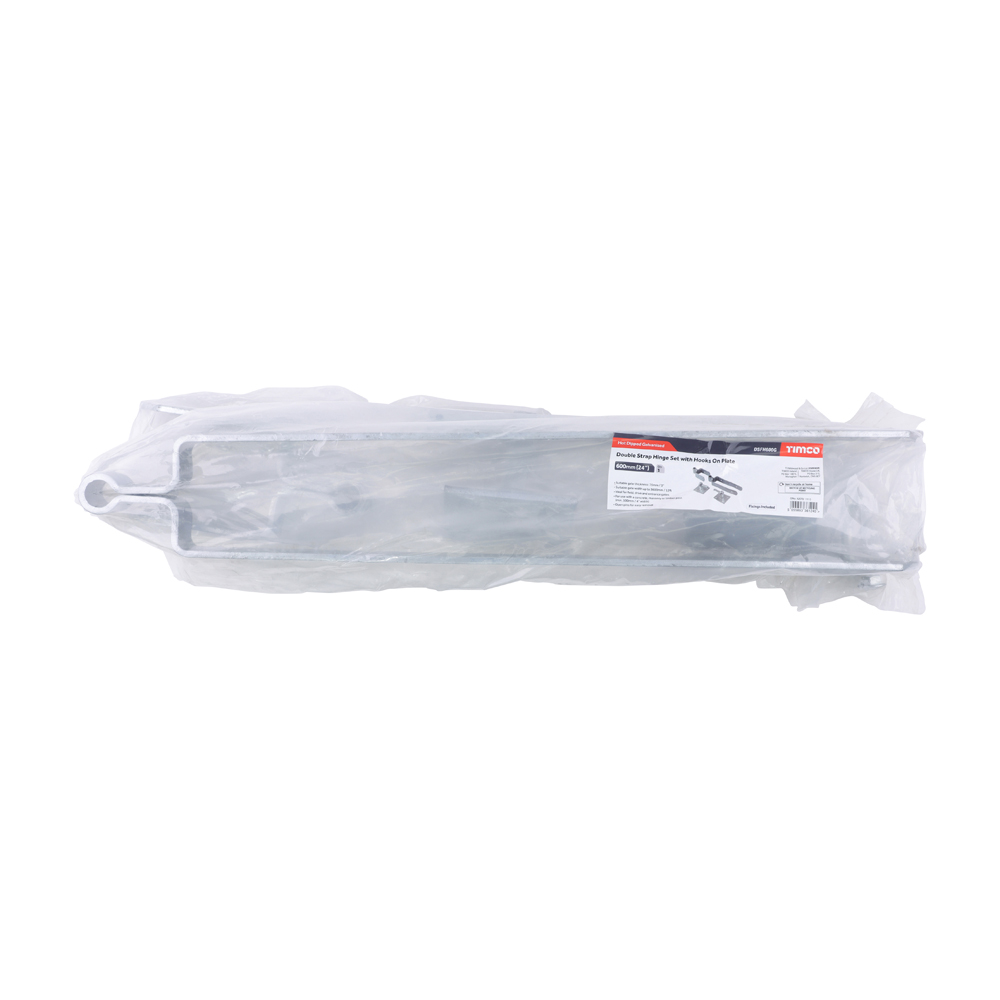

Product Image 2
Product Information
Ideal for use on fieldgates and driveway gates that are to be hung on timber, concrete or masonry posts. The hinge set provides exceptional support to the gate as the top band and bottom strap wrap around the gate and are fixed with cup square bolts to firmly secure in place. Depending on the weight distribution of the gate, the top or bottom pin can be mounted upside down to prevent unwanted removal of the gate. Fixings included.
Documents
Brochure Page
Technical Specifications
Product Specification
Bottom Strap L inch 6
Bottom Strap L mm 150
Carriage Bolt Size mm M10 x 95
Coach Screw Size mm M10 x 65
Hook Plate Size L x W mm 100 x 100
Nut Size mm M10
Strap Thickness mm 6
Top Strap L inch 24
Top Strap L mm 600
Washer Size mm M10
Type Double Strap
Washer Type Form A
Corrosion Rating 4 - Urban & industrial areas with a moderate salt atmosphere
CSK Screw Size mm 6.0 x 40
No of Nuts 4
No of CSK Screws 2
No of Coach Screws 8
No of Carriage Bolts 4
No of Washers 4
To Suit Gate Thickness inch 3
To Suit Gate Thickness mm 75
To Suit Gate Width ft 09/12/2024
To Suit Gate Width mm 2700 - 3600
Pack Dimensions L x W x H mm 661 x 140 x 215
Pack Weight kg 5.67
Carton Qty Packs 4
Pallet Qty Packs 80
Product Code DSFH600G
SKU Barcode 5055893361245
Pin Dia mm 19
Pin Dia inch 3/4
To Fit Carriage Bolt Dia mm M10
Product Specifications
Finish Hot Dipped Galvanised
Material Carbon Steel
Nut Type Hex Full
Contents 600mm Top Strap (Qty 1), 150mm Bottom Strap (Qty 1), 100 x 100mm Hook on Plates (Qty 2), M10 x 95mm Carriage Bolts (Qty 4), M10 Full Hex Nuts (Qty 4), M10 Washers (Qty 4), M10 x 65mm Coach Screws (Qty 8), 6.0 x 40mm TIMco Exterior Woodscrews (Qty 2)
Attribute Group 1
Brand TIMCO

Double Strap Hinge Set with Hook on Plate - Hot Dipped Galvanised

600mm

  • Product Code: DSFH600G
  • Pack Type: Plain Bag
  • Pack Quantity: 1
  • Barcode: 5055893361245
