Product Information
Ideal for hanging internal doors in domestic applications.
- Double washers prevent knuckle wear for long lasting performance
- Economy steel pin and washers
- Hinge manufactured from solid brass to guarantee no rust and a superior finish
- Available in a variety of finishes
Documents
Technical Specifications
Product Specification
| Length inch | 4 |
| Length mm | 102 |
| Open Width mm | 67 |
| Screw Size mm | 5.0 x 30 |
| Size L x W mm | 102 x 67 |
| Thickness mm | 2.2 |
| Corner Type | Square |
| Knuckle Type | Washered |
| Pin Material | Steel |
| Washer | Steel Washer |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Screws Required Per Pair | 16 |
| No of CSK Screws | 16 |
| Pack Dimensions L x W x H mm | 236 x 116 x 16 |
| Pack Weight kg | 0.314 |
| Carton Qty Packs | 5 |
| Pallet Qty Packs | N/A |
| Product Code | 234898P |
| SKU Barcode | 5056110890869 |
| Size imp | 4 |
| Screw Size imp | 10 x 1 1/4 |
| Knuckle Dia mm | 8 |
| Hole Dia mm | 5.3 |
| Rec Screw Dia mm | 5.0 |
Product Specifications
| Finish | Polished Brass |
| Material | Solid Brass |
Attribute Group 1
| Brand | TIMCO |

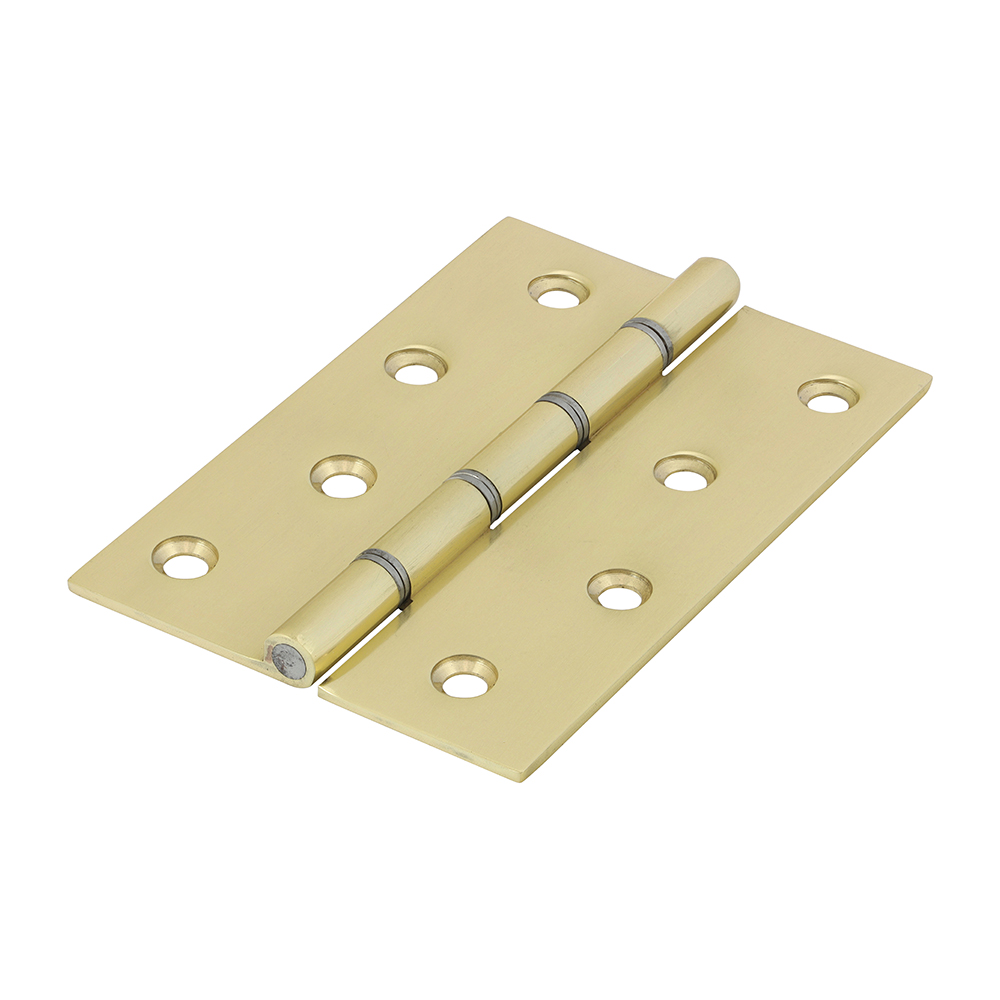

Double Steel Washered Butt Hinge - Solid Brass - Polished Brass
102 x 67
- Product Code: 234898P
- Pack Type: TIMbag
- Pack Quantity: 1
- Barcode: 5056110890869
