Product Information
Ideal for hanging internal doors in domestic applications.
- Double washers prevent knuckle wear for long lasting performance
- Stainless steel pin and washers for superior rust protection
- Hinge manufactured from solid brass to guarantee no rust and a superior finish
- Available in a variety of finishes
Documents
Technical Specifications
Product Specification
| Length inch | 3 |
| Length mm | 76 |
| Open Width mm | 50 |
| Screw Size mm | 4.0 x 25 |
| Size L x W mm | 76 x 50 |
| Thickness mm | 2.5 |
| Corner Type | Square |
| Knuckle Type | Washered |
| Pin Material | Stainless Steel |
| Washer | Stainless Steel Washer |
| Corrosion Rating | 4 - Urban & industrial areas with a moderate salt atmosphere |
| Screws Required Per Pair | 12 |
| No of CSK Screws | 12 |
| Pack Dimensions L x W x H mm | 122 x 42 x 22 |
| Pack Weight kg | 0.22 |
| Carton Qty Packs | 80 |
| Pallet Qty Packs | N/A |
| Product Code | 234381 |
| SKU Barcode | 5056110823317 |
| Size imp | 3 |
| Screw Size imp | 8 x 1 |
| Knuckle Dia mm | 8 |
| Hole Dia mm | 4.8 |
| Rec Screw Dia mm | 4.0 |
Product Specifications
| Finish | Polished Chrome |
| Material | Solid Brass |
Attribute Group 1
| Brand | TIMCO |

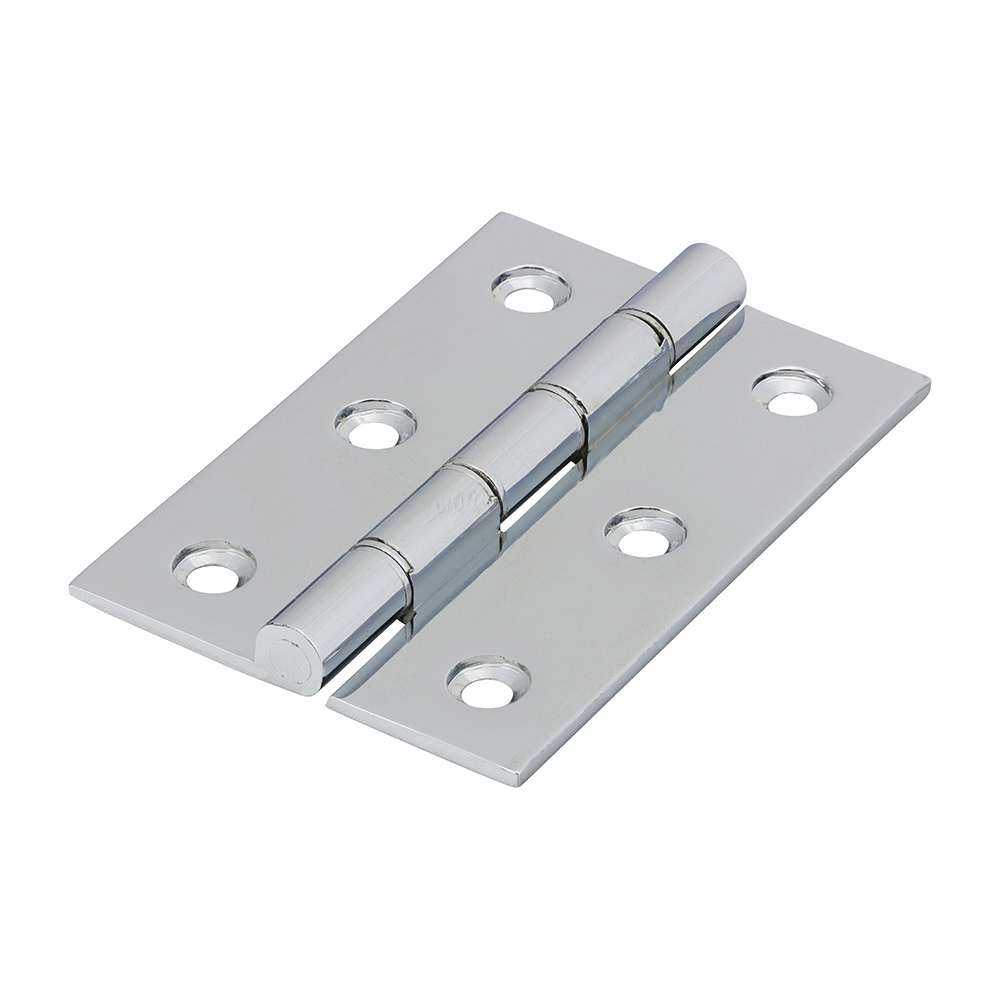

Double Stainless Steel Washered Butt Hinge - Solid Brass - Polished Chrome
76 x 50
- Product Code: 234381
- Pack Type: Box
- Pack Quantity: 1
- Barcode: 5056110823317
