Product Information
Ideal for hanging internal doors in domestic applications.
- Double washers prevent knuckle wear for long lasting performance
- Brass pin and phosphor bronze washers guarantee no rust
- Hinge manufactured from solid brass to guarantee no rust and a superior finish
- Available in a variety of finishes
Documents
Technical Specifications
Product Specification
| Length inch | 4 |
| Length mm | 102 |
| Open Width mm | 75 |
| Screw Size mm | 5.0 x 30 |
| Size L x W mm | 102 x 75 |
| Thickness mm | 3.5 |
| Corner Type | Square |
| Knuckle Type | Washered |
| Pin Material | Brass |
| Washer | Phosphor Bronze Washer |
| Corrosion Rating | 4 - Urban & industrial areas with a moderate salt atmosphere |
| Screws Required Per Pair | 16 |
| No of CSK Screws | 16 |
| Pack Dimensions L x W x H mm | 156 x 68 x 30 |
| Pack Weight kg | 0.56 |
| Carton Qty Packs | 40 |
| Pallet Qty Packs | N/A |
| Offers | Clearance |
| Product Code | 234762 |
| SKU Barcode | 5056110823300 |
| Size imp | 4 |
| Screw Size imp | 10 x 1 1/4 |
| Knuckle Dia mm | 10 |
| Hole Dia mm | 5.3 |
| Rec Screw Dia mm | 5.0 |
Product Specifications
| Finish | Bronze |
| Material | Solid Brass |
Attribute Group 1
| Brand | TIMCO |

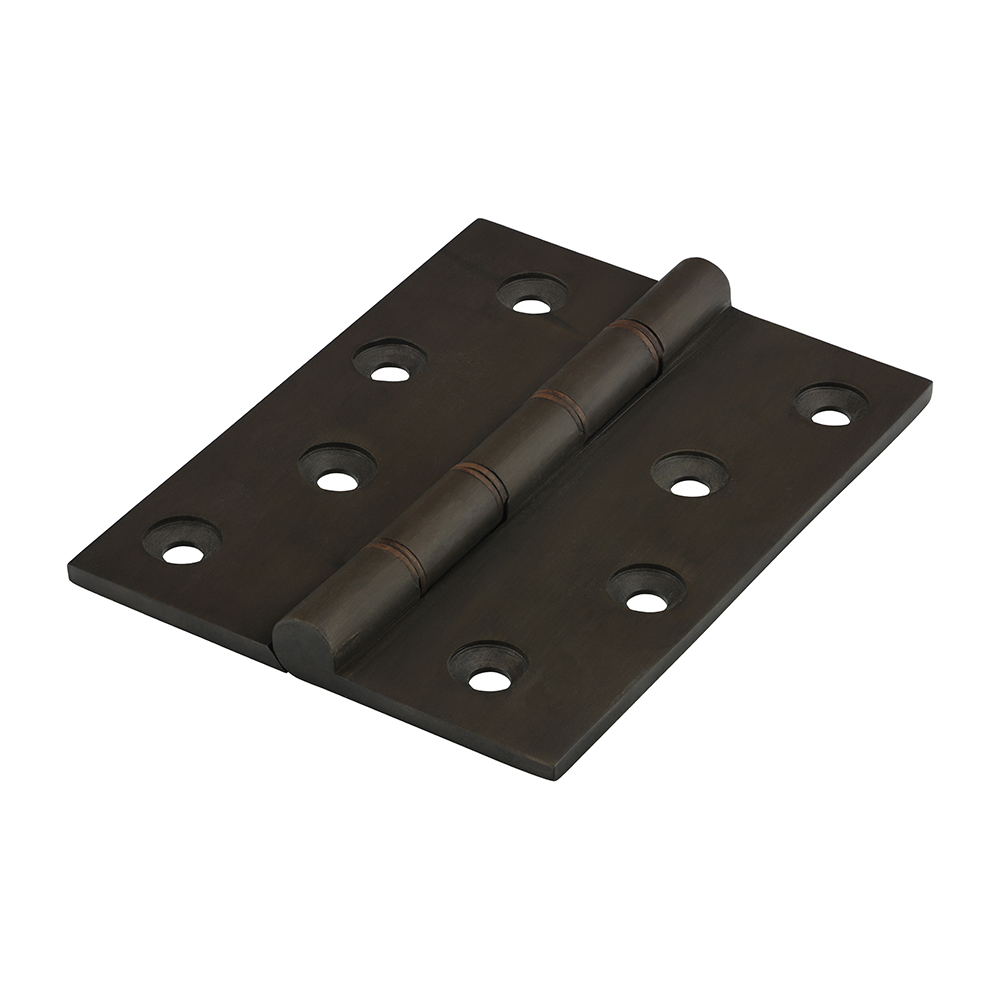

Double Phosphor Bronze Washered Butt Hinge - Solid Brass - Bronze
102 x 75
- Product Code: 234762

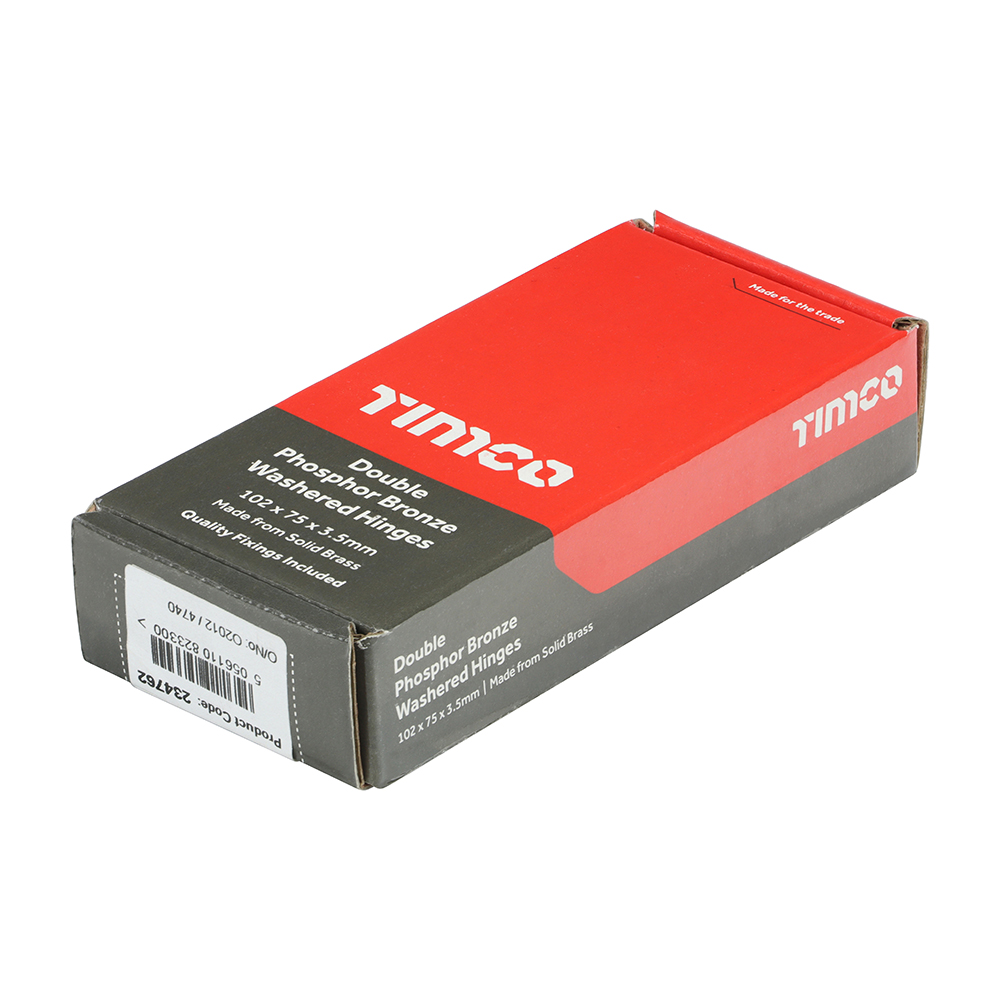

- Pack Type: Box
- Pack Quantity: 1
- Barcode: 5056110823300
