Product Information

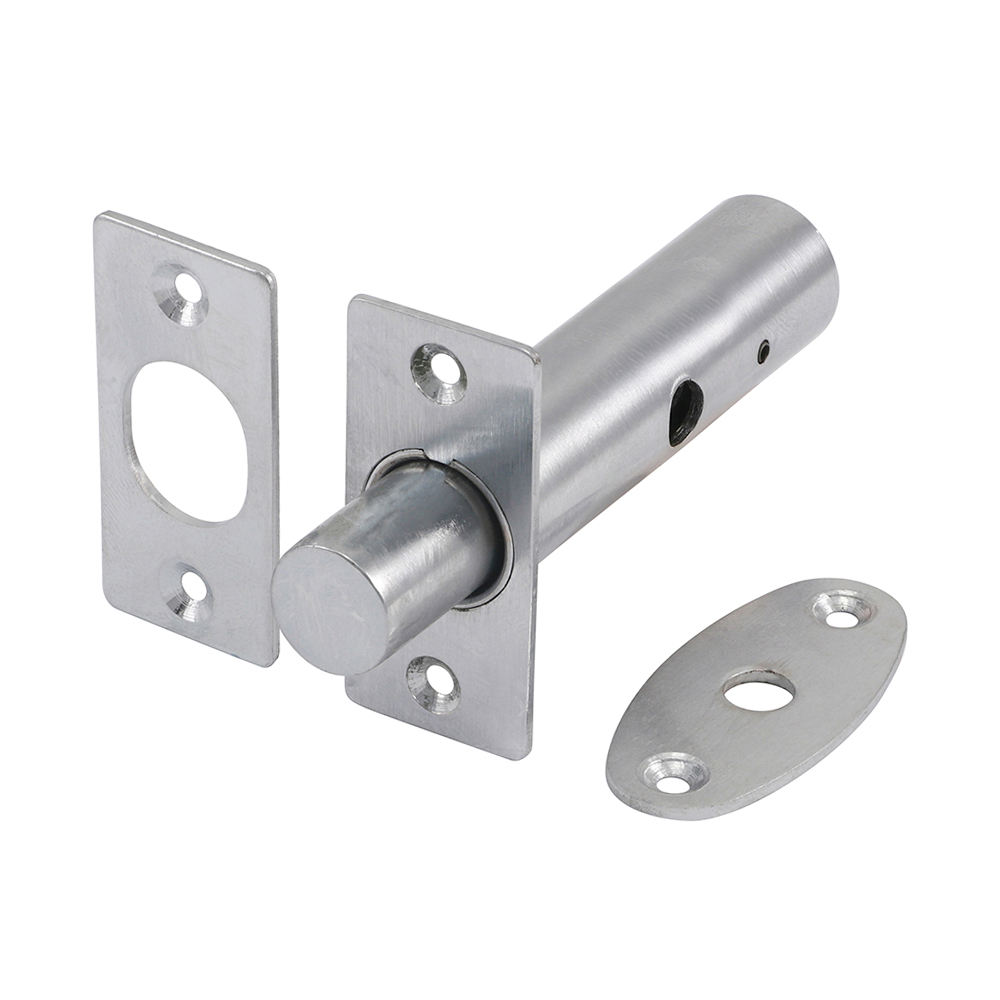

Door rack bolts are an ideal way to increase security on timber doors. They are morticed into the door and operated by a spline key that throws the bolt into the frame. For optimum security it is recommended that the bolts are fitted to the top and the bottom of the door.
- Extra security
- 60mm length
- Used with spline key
- Fixings included
Documents
Technical Specifications
Product Specification
| Backset mm | 31 |
| Bolt Throw mm | 18 |
| Case Depth mm | 60 |
| Faceplate Size H x W mm | 42 x 20 |
| Keep Size H x W mm | 42 x 20 |
| Screw Size mm | 3.0 x 15 |
| Faceplate Type | Square |
| Corrosion Rating | 2 - Occasionally damp/wet, rural and sheltered areas |
| No of CSK Screws | 6 |
| Pack Dimensions L x W x H mm | 189 x 86 x 22 |
| Pack Weight kg | 0.206 |
| Carton Qty Packs | 10 |
| Pallet Qty Packs | N/A |
| Product Code | 200789P |
| SKU Barcode | 5056110885872 |
| Screw Size imp | 4 x 5/8 |
| Case Dia mm | 16 |
| Bolt Dia mm | 13 |
Product Specifications
| Finish | Satin Chrome |
| Material | Steel |
| Included Items | Key (Qty 1) |
Attribute Group 1
| Brand | TIMCO |

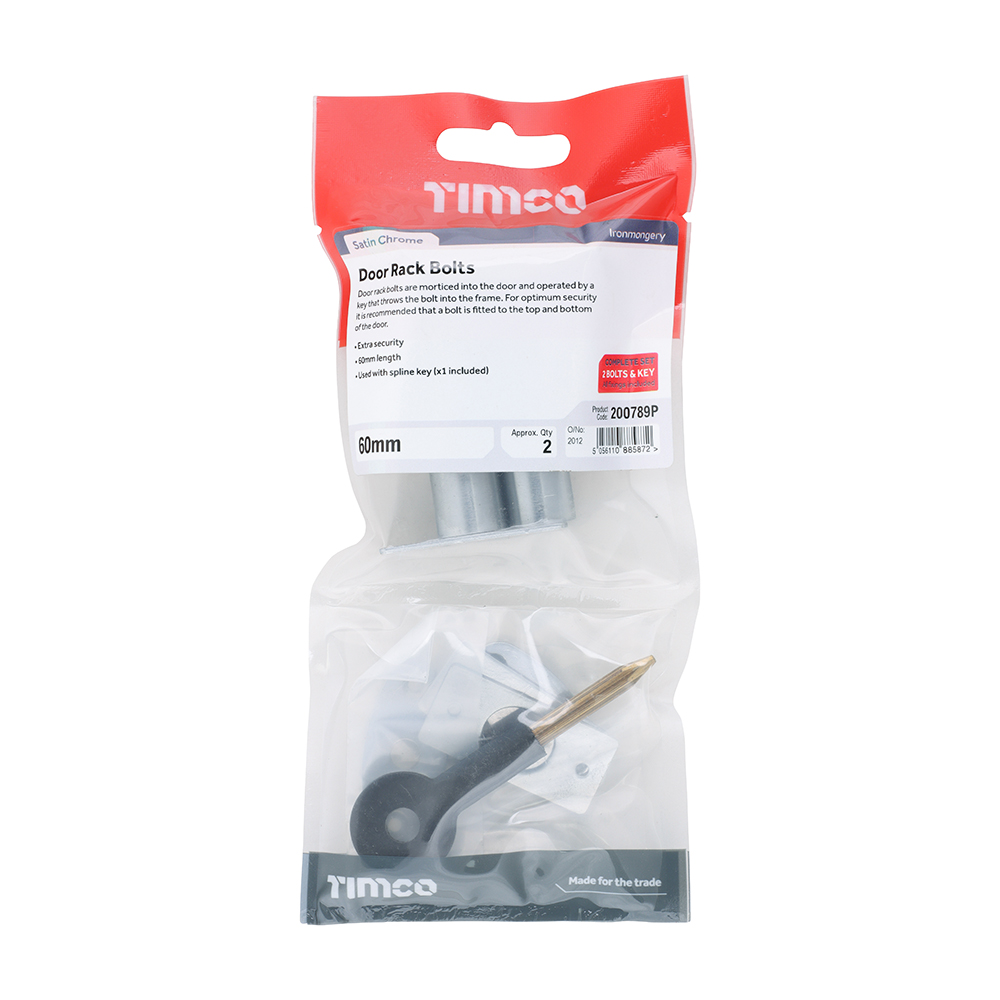

Door Rack Bolts - Satin Chrome
60mm
- Product Code: 200789P
- Pack Type: TIMpac
- Pack Quantity: 2
- Barcode: 5056110885872
