Product Information

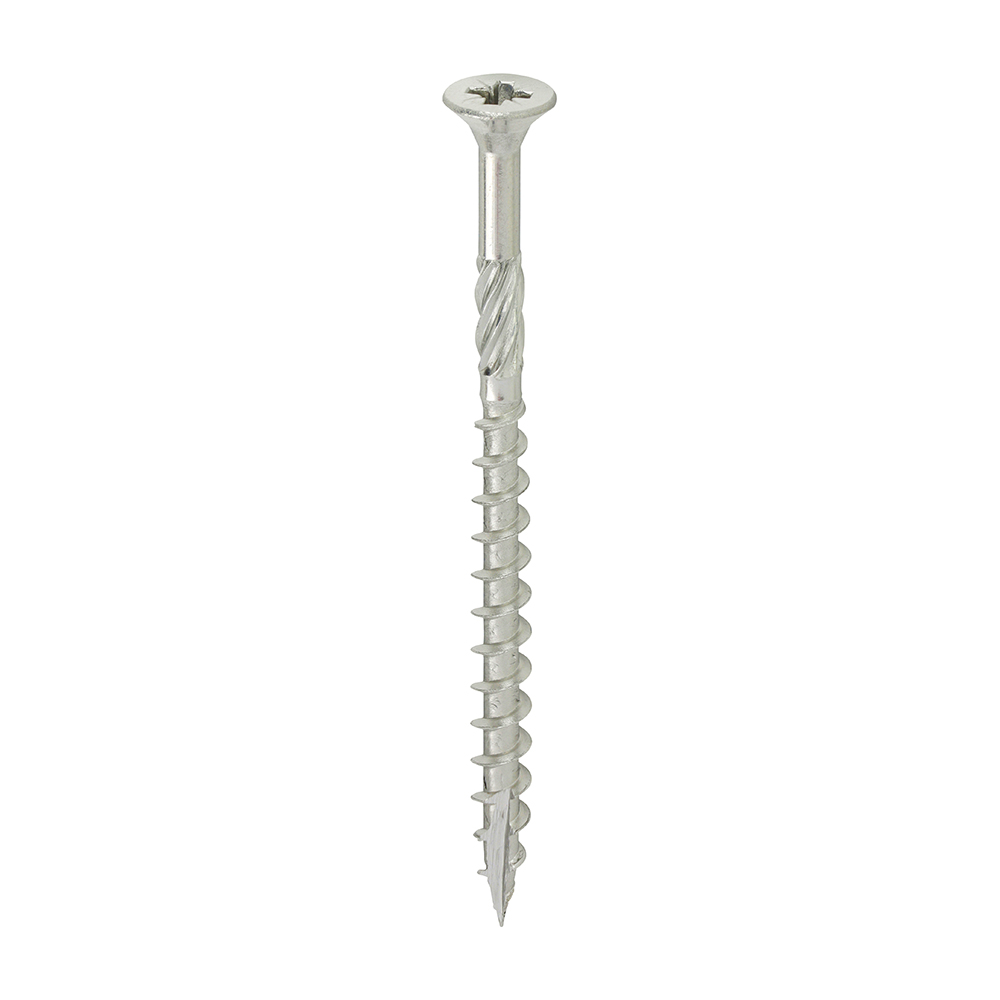

An economic but highly effective softwood decking screw. Manufactured from A2 Stainless Steel. Offering superior corrosion resistance making it ideal for multiple external applications, especially for the construction of decking platforms. Stainless steel must be used where there is a corrosive environment and/or the base material has inherent corrosive characteristics e.g. Green Oak.
- Double countersunk head reduces the likelihood of head shear and assists completion of countersinking
- Helix shank for removing debris and to improve clamping
- Single slash point to reduce torque and the risk of timber splitting at low edge distance
Documents
Technical Specifications
Product Specifications
| Gauge | 9 |
| Colour | Silver |
| Head Type | Double Countersunk with Ribs |
| Material | Austenitic Stainless Steel (A2-304) |
| Point Type | 25° Sharp with Single Slash |
| Recess Type | Pozi |
| Thread Coverage | Partially Threaded |
| Thread Type | 40° Single Deep |
| Driver Bit Size | PZ2 |
| Included Items | PZ2 S2 Bit (Qty 1) |
| Substrates | Hardwood, Softwood, Corrosive Wood (e.g. Oak, Cedar) |
Product Specification
| Length inch | 2 1/2 |
| Length mm | 65 |
| Diameter mm | 4.5 |
| Size mm | 4.5 x 65 |
| Thread Length mm | 42 |
| Shank Type | Helix |
| Corrosion Rating | 4 - Urban & industrial areas with a moderate salt atmosphere |
| Pack Dimensions L x W x H mm | 149 x 119 x 78 |
| Pack Weight kg | 1.022 |
| Carton Qty Packs | 8 |
| Pallet Qty Packs | 288 |
| CE Standard Web | BS EN 14592:2008 |
| Offers | Sale |
| Product Code | 65TDECKSS |
| SKU Barcode | 5056110864419 |
| Size imp | 9 x 2 1/2 |
| Thread Dia mm | 4.5 |
| Inner Thread Dia mm | 2.7 |
| Head Dia mm | 8.76 |
Attribute Group 1
| Brand | TIMCO |

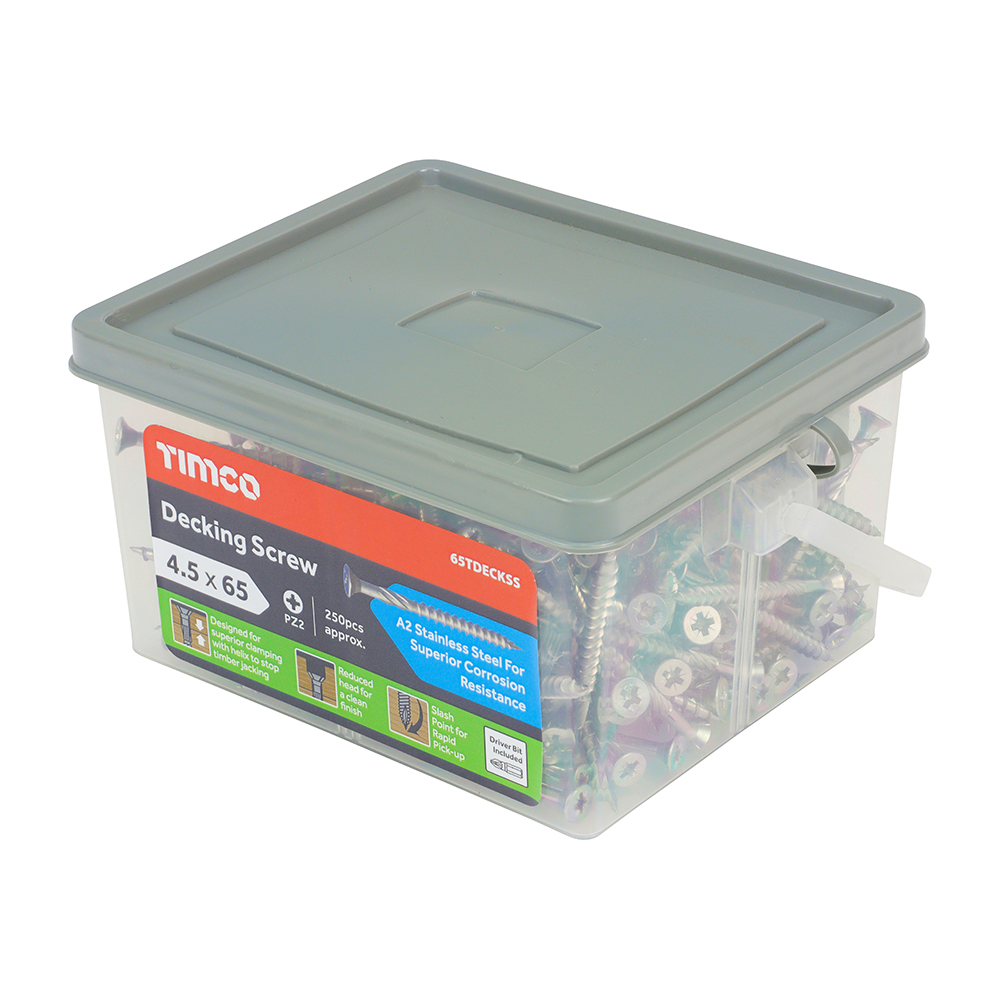

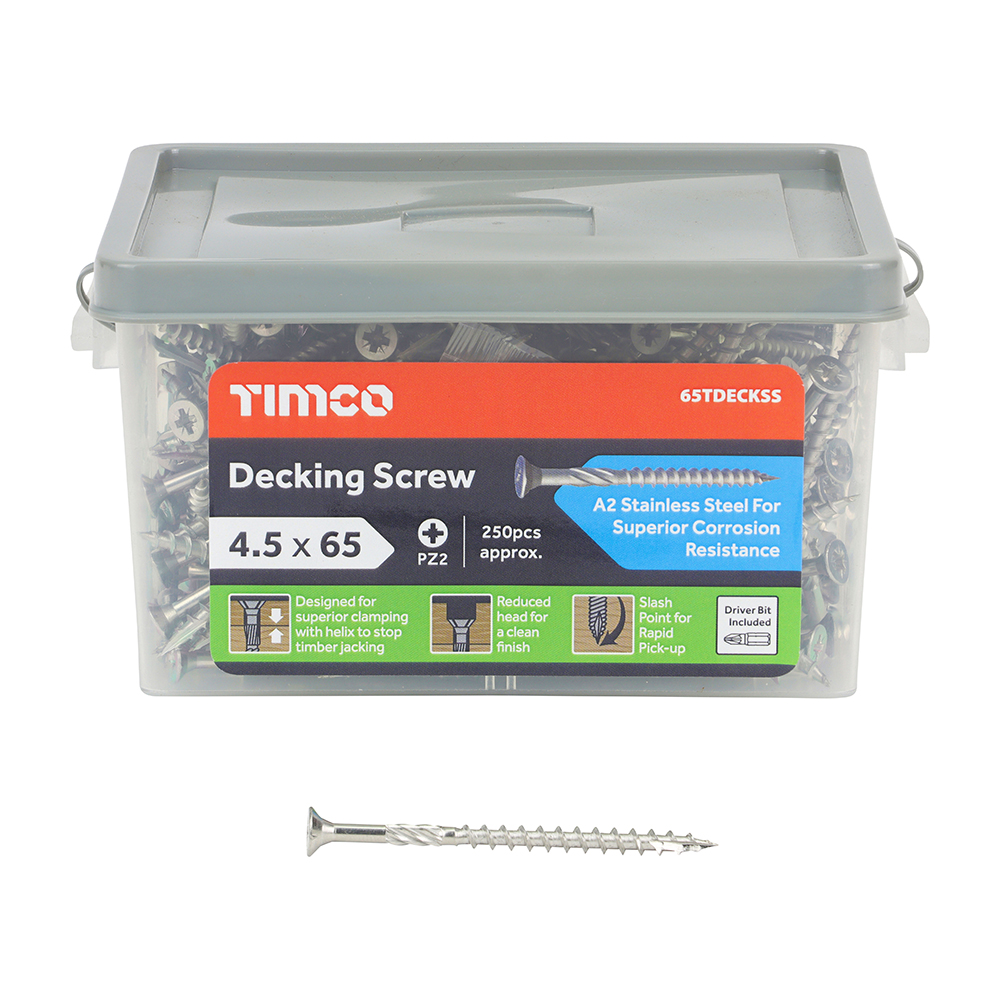

Decking Screws - PZ - Double Countersunk - Stainless Steel
4.5 x 65
- Product Code: 65TDECKSS
- Pack Type: Tub
- Pack Quantity: 250
- Barcode: 5056110864419
