Product Information

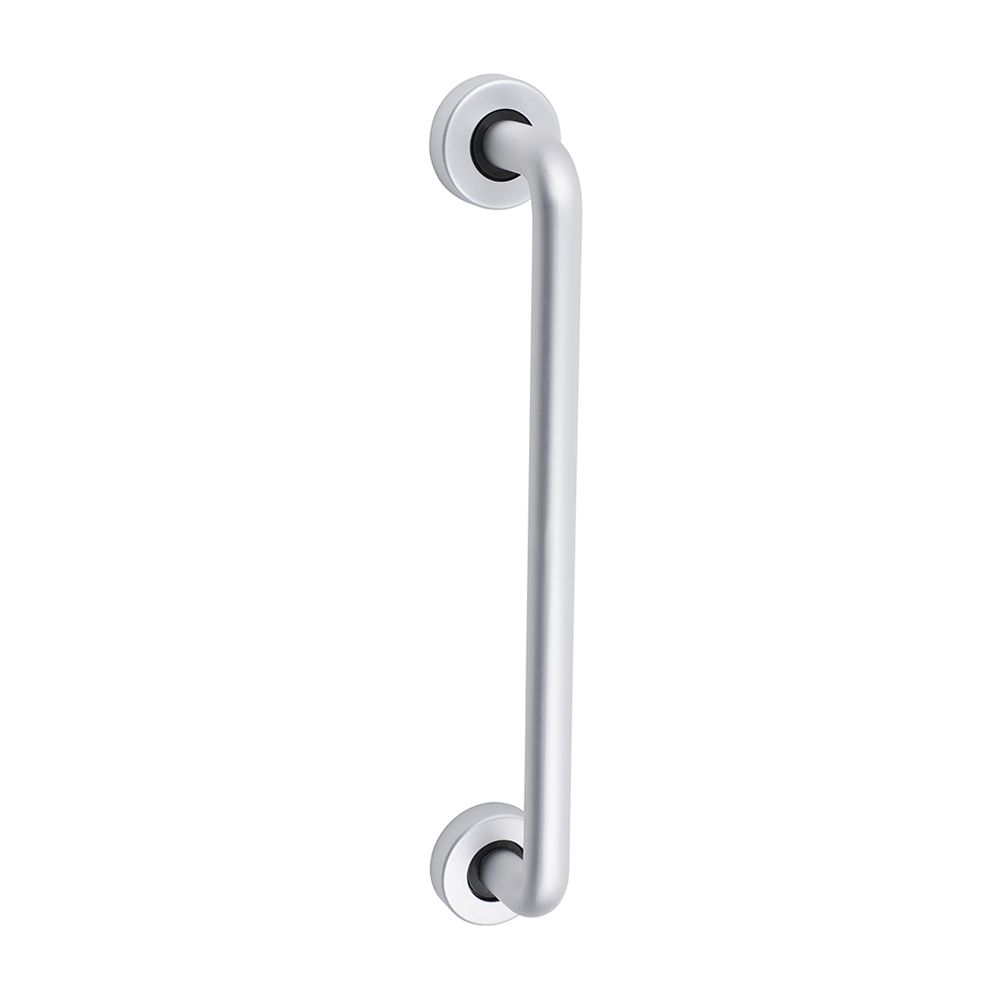

D shaped pull handle on rose suitable for internal and external applications. Featuring concealed fixings under the screw on rose.
  • Concealed screw on roses
  • Face fixing
  • Suitable for internal & external applications
  • Fixings included
Documents
Brochure Page
Technical Specifications
Product Specification
Centres mm 305
Handle Length mm 305
Length mm 305
Diameter mm 19
Projection mm 69
Size mm 305
Material Satin Anodised Aluminium
Corrosion Rating 1 - Clean, dry & low humidity environments
No of CSK Screws 8
No of Bolts 2
Pack Dimensions L x W x H mm 382 x 105 x 63
Pack Weight kg 0.34
Carton Qty Packs 10
Pallet Qty Packs N/A
Product Code 725094BX
SKU Barcode 5056110897691
Rose Dia mm 54
No of Bolt Holes 2
Attribute Group 1
Brand TIMCO

D Shaped Pull Handle On Rose - Satin Anodised Aluminium

305 x 19

  • Product Code: 725094BX

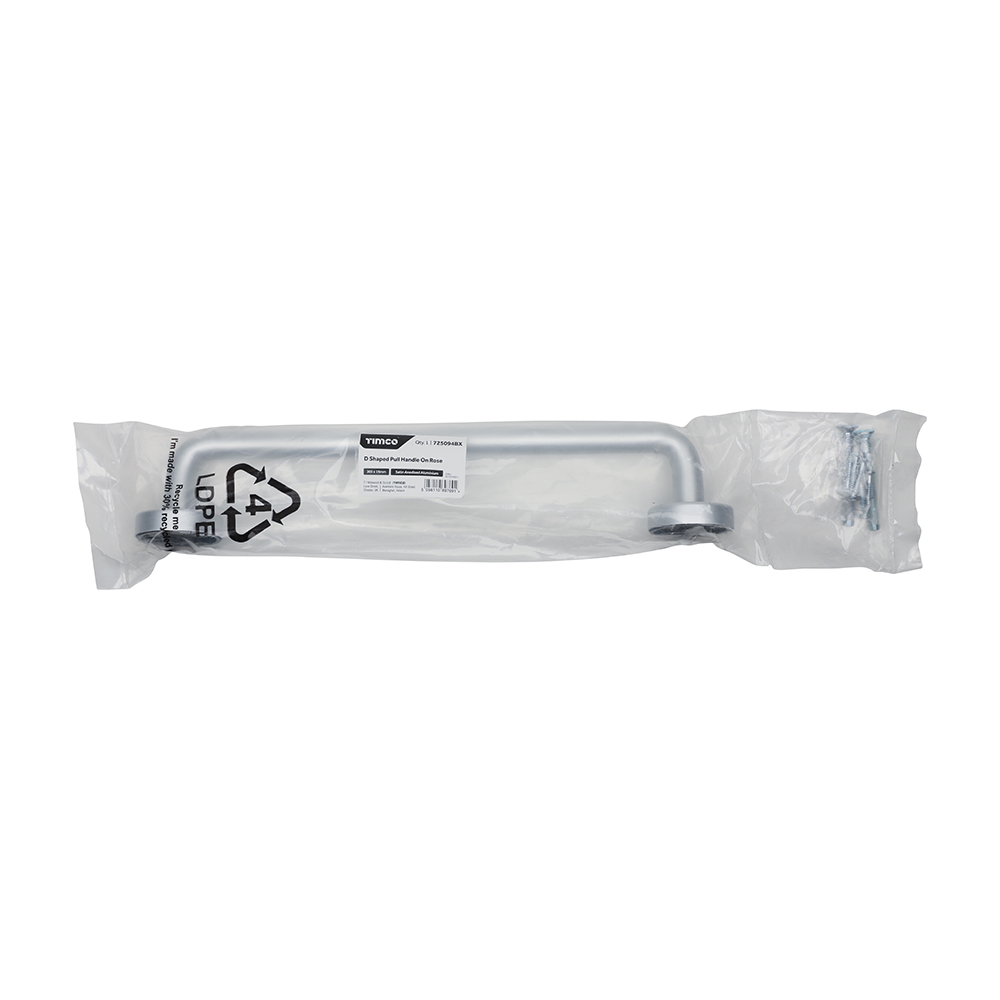

  • Pack Type: Bag
  • Pack Quantity: 1
  • Barcode: 5056110897691
