Product Information
Designed for all counter types. A popular choice for public bars.
- Lies flat when open
- Manufactured from high quality extruded brass to guarantee no rust and a superior finish
- Available in a variety of finishes
Documents
Technical Specifications
Product Specification
| Length inch | 4 |
| Length mm | 100 |
| Open Width mm | 40 |
| Screw Size mm | 4.0 x 25 |
| Size L x W mm | 100 x 40 |
| Thickness mm | 2.5 |
| Corner Type | Square |
| Knuckle Type | Plain |
| Pin Material | Brass |
| Corrosion Rating | 4 - Urban & industrial areas with a moderate salt atmosphere |
| Screws Required Per Pair | 12 |
| No of CSK Screws | 12 |
| Pack Dimensions L x W x H mm | 124 x 56 x 30 |
| Pack Weight kg | 0.24 |
| Carton Qty Packs | 100 |
| Pallet Qty Packs | N/A |
| Product Code | 234999 |
| SKU Barcode | 5056110823720 |
| Size imp | 4 |
| Screw Size imp | 8 x 1 |
| Hole Dia mm | 5.9 |
| Rec Screw Dia mm | 4.0 |
Product Specifications
| Finish | Polished Brass |
| Material | Solid Brass |
Attribute Group 1
| Brand | TIMCO |

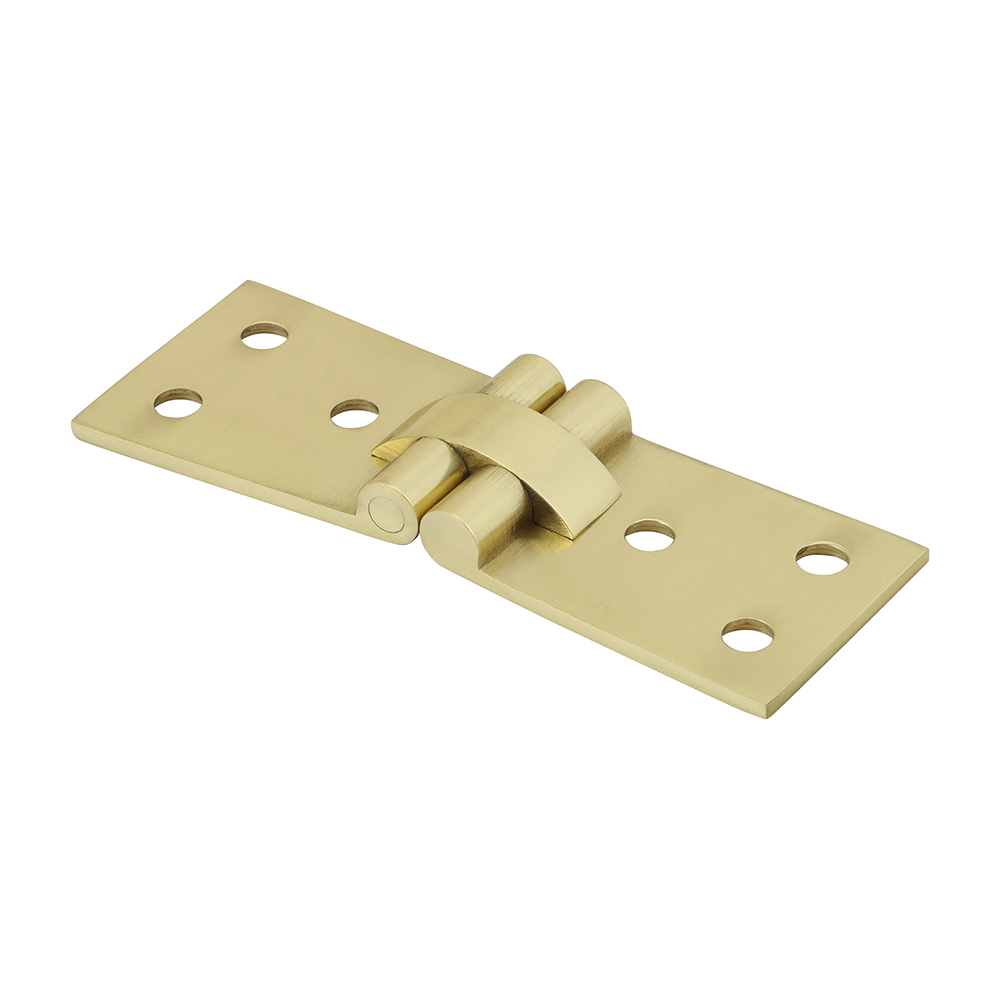

Counterflap Hinge - Solid Brass - Polished Brass
100 x 40
- Product Code: 234999

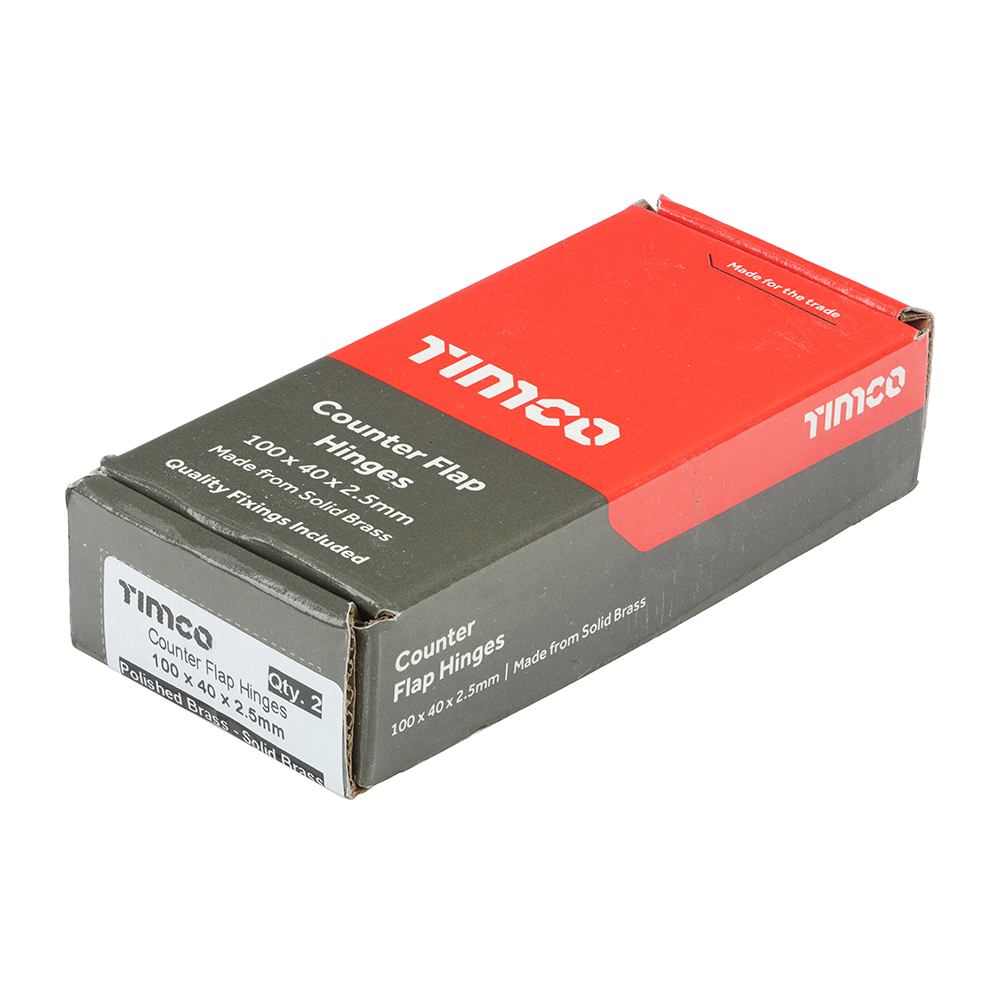

- Pack Type: Box
- Pack Quantity: 1
- Barcode: 5056110823720
