Product Information

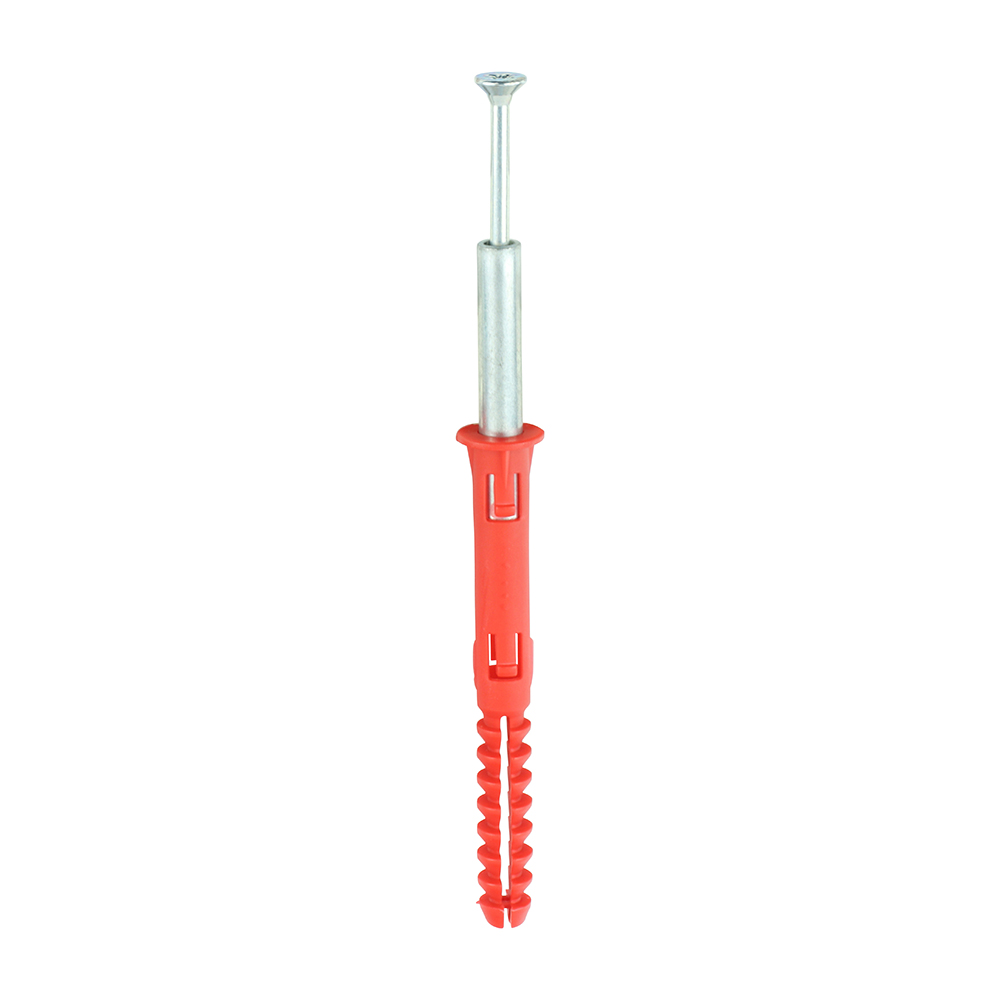

This highly effective and innovative product was developed to safely secure heavy loads including cabinets and brackets to dot and dab plasterboard walls or board supported on battens. Quick to install, this patented product works by securing the load to the brick or block behind the board, bridging the problematic gap that dot and dab creates, by way of a zinc plated steel tube insert.
- Suitable for most modern homes with plasterboard / dot & dab walls
- Trusted and independently tested
- Fast installation, no specialist tools required, drill, 10mm bit, hammer & screwdriver
- For all wall types, brick, block and light weight concrete
Documents
Technical Specifications
Product Specification
| Drill Bit Size mm | 10.0 x 150 |
| Plug Length mm | 95 |
| Plug Size mm | 10 x 95 |
| Screw Size mm | 5.0 x 100 |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Max Fixture Thickness mm | 10 |
| Min Drill Hole Depth mm | 100 |
| Pack Dimensions L x W x H mm | 192 x 73 x 24 |
| Pack Weight kg | 0.2 |
| Carton Qty Packs | 30 |
| Pallet Qty Packs | 1200 |
| Product Code | CFX006RVT |
| SKU Barcode | 5056110852270 |
| Plug Dia mm | 10 |
| Core Insert Size Dia x Length mm | 8.0 x 50 |
| Drill Hole Dia mm | 10 |
Product Specifications
| Finish | Zinc |
| Head Type | Countersunk |
| Material | Carbon Steel Screw, Impact Resistant PP Copolymer Plug, Carbon Steel Core |
| Recess Type | Pozi |
| Driver Bit Size | PZ2 |
| Substrates | Brick, Block, Stone |
Attribute Group 1
| Brand | TIMCO Corefix |

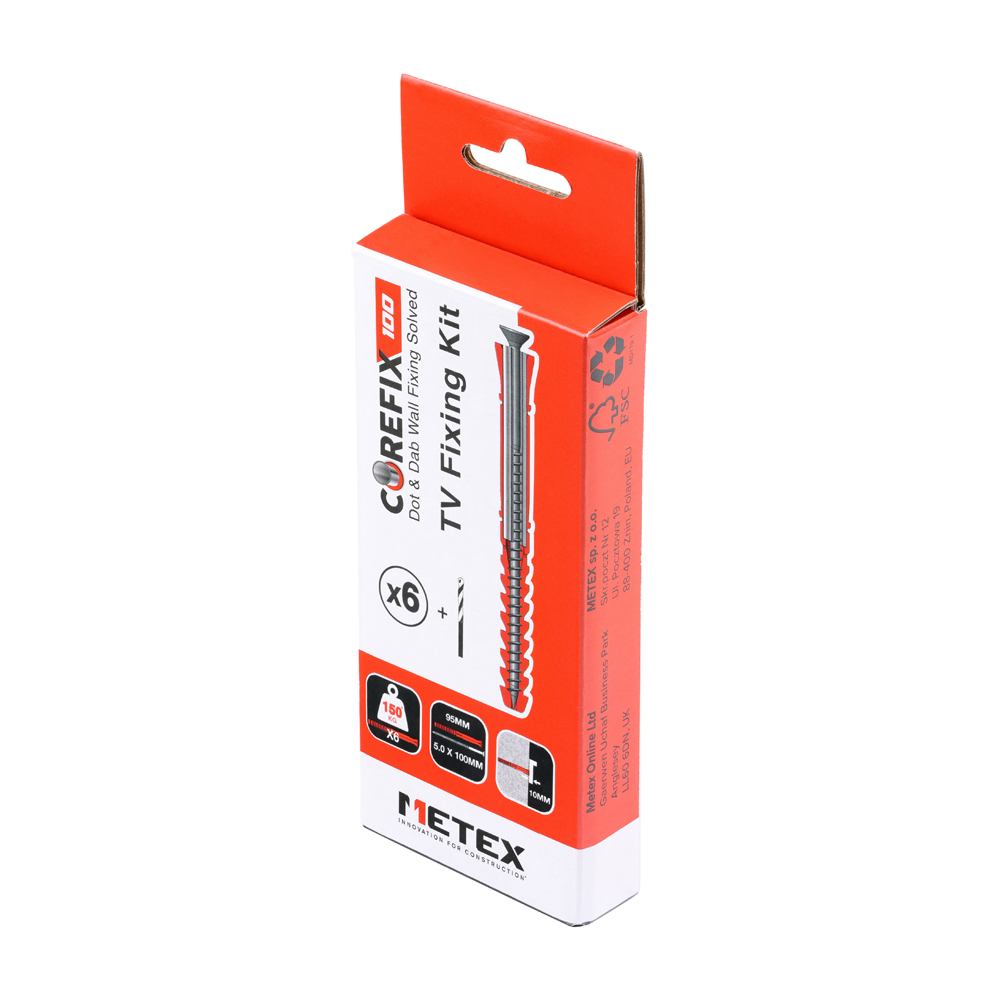

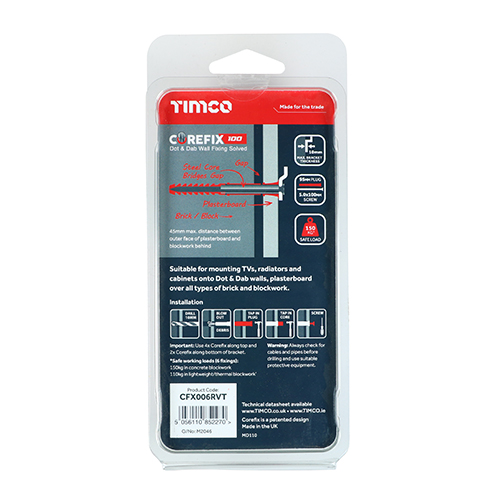

Corefix 100 TV & Radiator Kit
5.0 x 100
- Product Code: CFX006RVT
- Pack Type: Box
- Pack Quantity: 6
- Barcode: 5056110852270
