Product Information
For drilling, enlarging and de-burring holes in thin sheet metal up to a thickness of 2mm.
- High quality M2 grade High Speed Steel (HSS)
- 3 flat shank to prevent slipping in the chuck
Documents
Technical Specifications
Product Specification
| Diameter mm | 5.0 - 31.0 |
| Shank Type | Three Flat |
| Max Drilling Thickness mm | 2 |
| Pack Dimensions L x W x H mm | 35 x 35 x 386 |
| Pack Weight kg | 0.21 |
| Carton Qty Packs | 10 |
| Pallet Qty Packs | N/A |
| Product Code | CC531 |
| SKU Barcode | 5055017552740 |
Product Specifications
| Material | M2 Grade HSS Steel |
| Substrates | Aluminium, Thin Sheet Metal |
Attribute Group 1
| Brand | TIMCO |

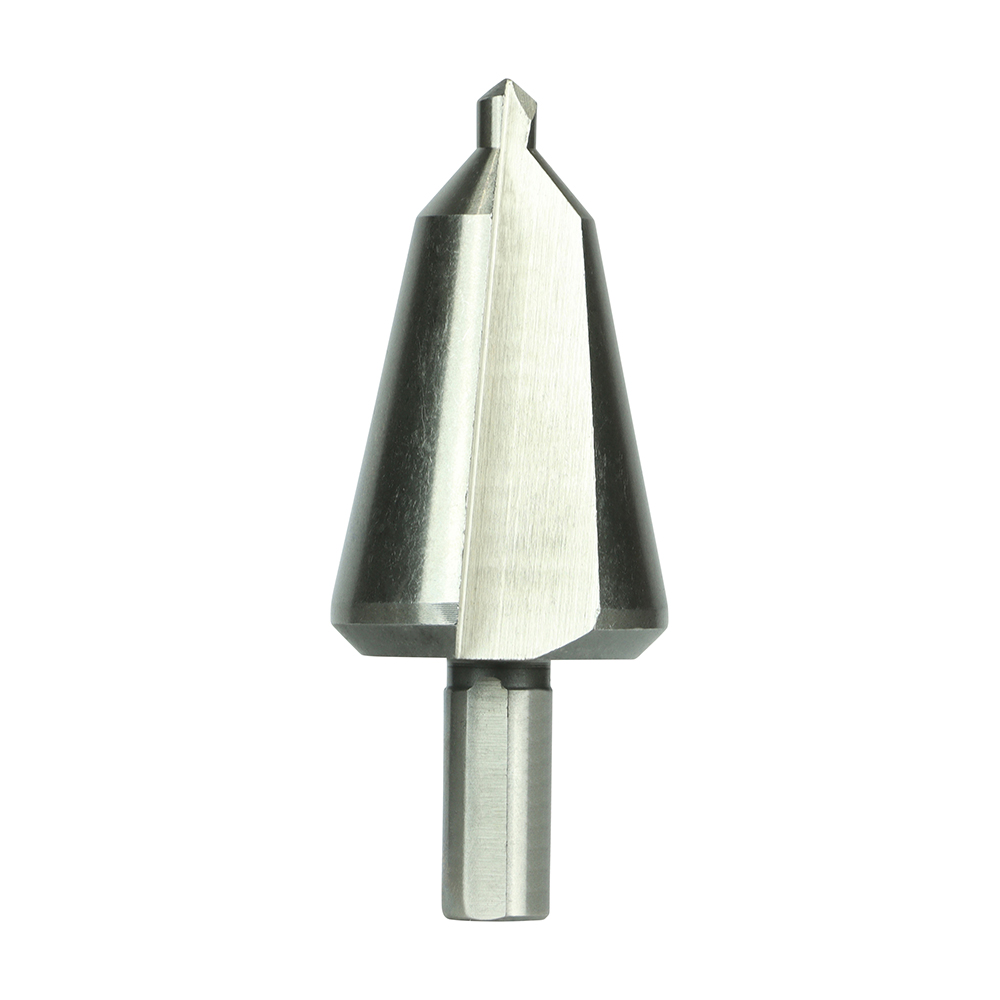

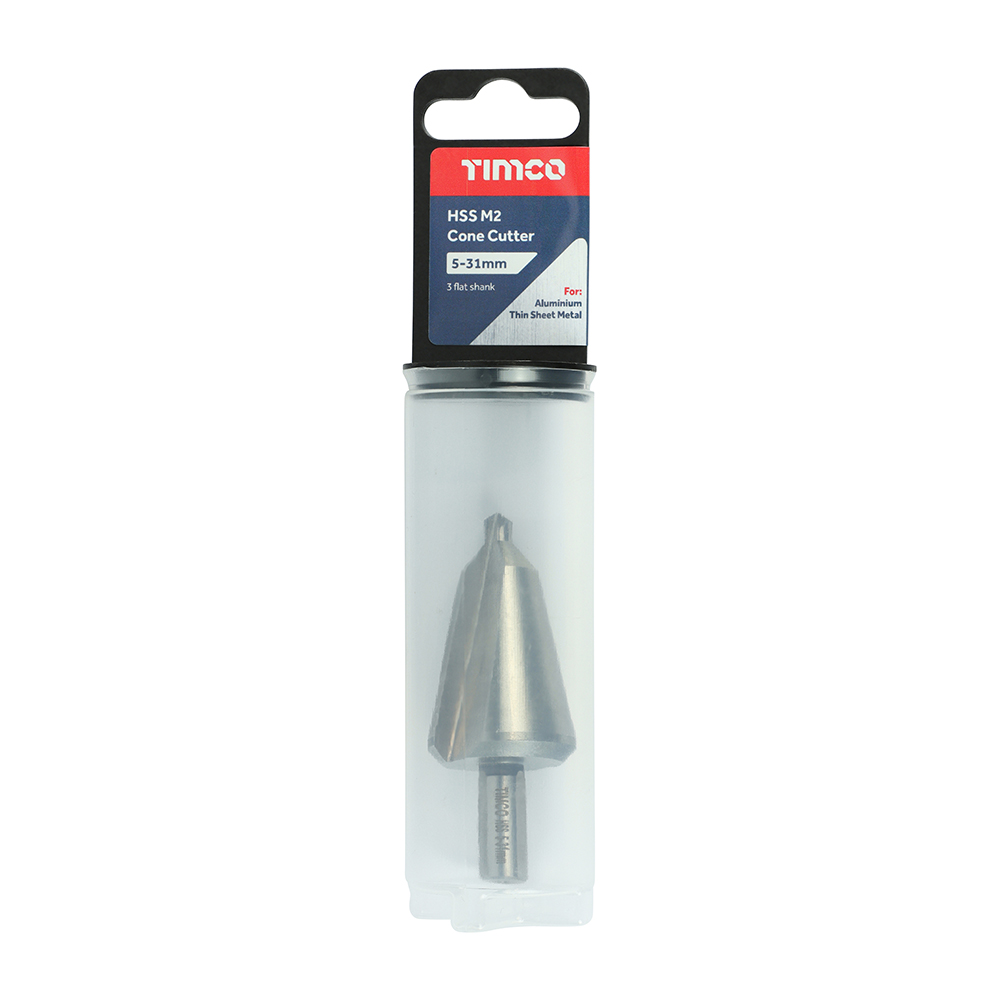

Cone Cutter
5-31mm
- Product Code: CC531
- Pack Type: Tube
- Pack Quantity: 1
- Barcode: 5055017552740
