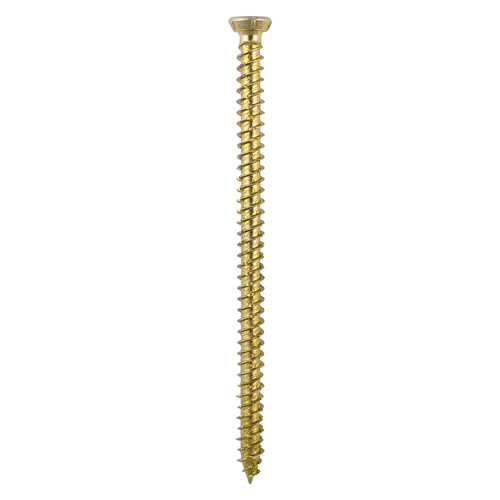

Product Information
A rapid and effective light duty anchoring system for fixing into concrete, brick, stone, concrete block and wood. This through fixing provides a single solution and replaces traditional fixings such as nylon frame and hammer fixings.
- Designed to replace traditional masonry fixings
- TX30 TX Drive recess to reduce driver wear & prevent camming-out
- Serrated V-threads to achieve optimum insertion into all masonry types
- Zinc plated and yellow passivated for increased corrosion resistance
- High-Low thread on first 30mm to aid insertion and reduce torque
- Ideal for fitting windows and door frames
- Flat countersunk head with five locking ribs
- All steel, non-flammable fixing conforming to BS 7671 standard's 18th edition, which requires wiring systems to be supported by materials which are unlikely to prematurely collapse in the event of a fire.
Documents
Technical Specifications
Product Specification
| Length mm | 80 |
| Diameter mm | 7.5 |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Fixture Hole Diameter mm | 8 |
| Max Fixture Thickness mm | 30 |
| Min Drill Hole Depth mm | 60 |
| Min Embedment Depth mm | 50 |
| Pack Dimensions L x W x H mm | 15 x 90 x 163 |
| Pack Weight kg | 0.08 |
| Carton Qty Packs | 10 |
| Pallet Qty Packs | 6000 |
| Product Code | 00080TCONP |
| SKU Barcode | 5055331828415 |
| Size Dia x L mm | 7.5 x 80 |
| Thread Dia mm | 7.5 |
| Drill Hole Dia mm | 6 |
Product Specifications
| Finish | Zinc & Yellow |
| Head Type | Flat Countersunk with Ribs |
| Material | Carbon Steel |
| Point Type | Sharp |
| Recess Type | TX Drive |
| Thread Coverage | Fully Threaded |
| Thread Type | High-Low Start with V Flutes |
| Driver Bit Size | TX30 |
| Substrates | Wood, Concrete, Brick, Block, Stone |
| Approval | BS 7671:2018 |
Attribute Group 1
| Brand | TIMCO |

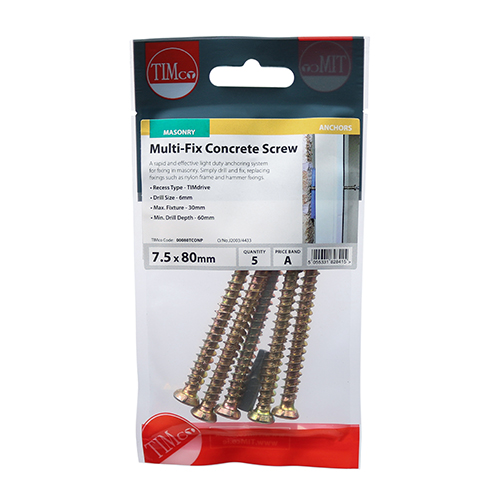

Concrete Screws - TX - Flat Countersunk - Yellow
7.5 x 80
- Product Code: 00080TCONP
- Pack Type: TIMpac
- Pack Quantity: 5
- Barcode: 5055331828415
