Product Information

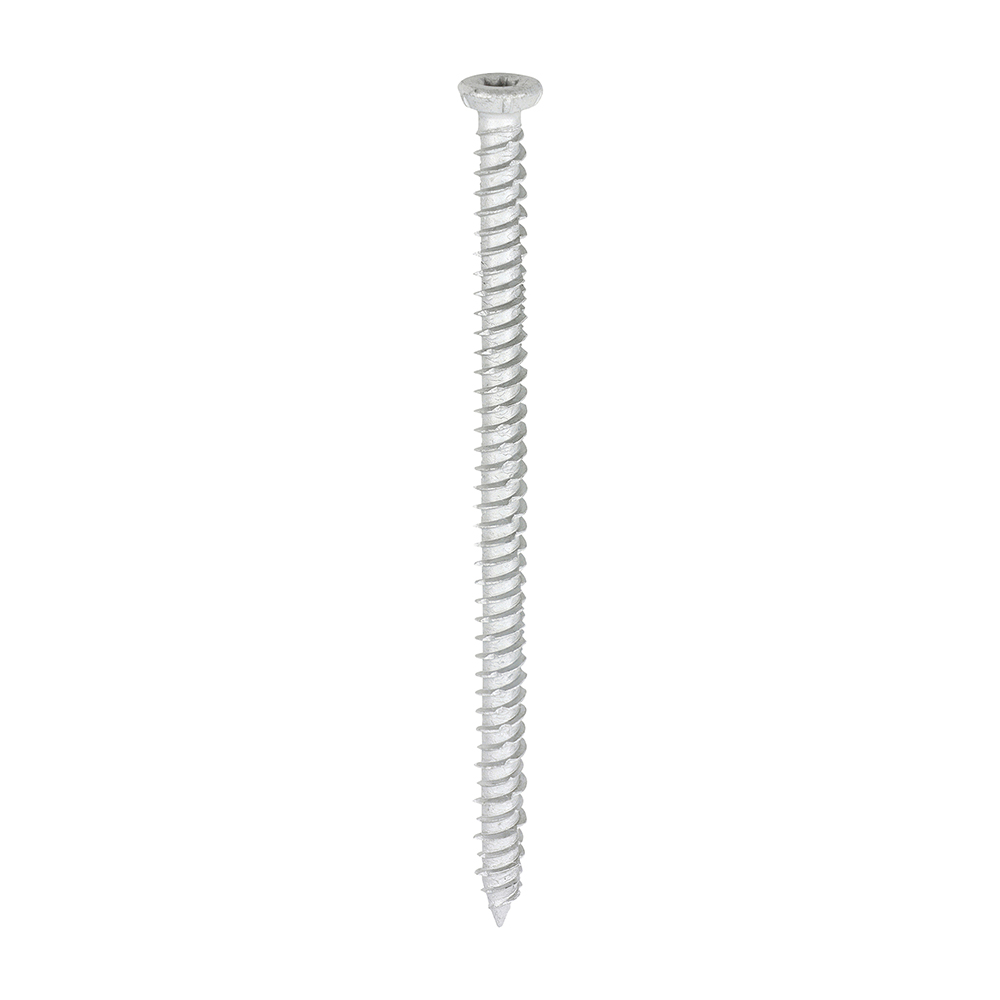

A rapid and effective light duty anchoring system for fixing into concrete, brick, stone, concrete block and wood. This through fixing provides a single solution and replaces traditional fixings such as nylon frame and hammer fixings.
- Designed to replace traditional masonry fixings
- TX30 TX Drive recess to reduce driver wear & prevent camming out
- Serrated V-threads to achieve optimum insertion into all masonry types
- Exterior plating gives a reliable and durable corrosion resistant coating which resists 500 hours salt-spray.
- High Low threads for ease of insertion
- Ideal for fitting windows and door frames
- All steel, non-flammable fixing conforming to BS 7671 standard's 18th edition, which requires wiring systems to be supported by materials which are unlikely to prematurely collapse in the event of a fire.
Documents
Technical Specifications
Product Specification
| Length mm | 120 |
| Diameter mm | 7.5 |
| Finish | Exterior (Silver Organic) |
| Head Type | Flat Countersunk with Ribs |
| Material | Carbon Steel |
| Point Type | Sharp |
| Recess Type | TX Drive |
| Thread Coverage | Fully Threaded |
| Thread Type | High-Low Start with V Flutes |
| Corrosion Rating | 3 - Urban & industrial areas with a low salt atmosphere |
| Driver Bit Size | TX30 |
| Fixture Hole Diameter mm | 8 |
| Included Items | TX30 S2 Bit (Qty 1) |
| Max Fixture Thickness mm | 70 |
| Min Embedment Depth mm | 50 |
| Substrates | Wood, Concrete, Brick, Block, Stone |
| Pack Dimensions L x W x H mm | 176 x 116 x 64 |
| Pack Weight kg | 2.34 |
| Carton Qty Packs | 8 |
| Pallet Qty Packs | 288 |
| Approval | BS 7671:2018 |
| Product Code | 120TCONR |
| SKU Barcode | 5055893363348 |
| Size Dia x L mm | 7.5 x 120 |
| Thread Dia mm | 7.5 |
| Drill Hole Dia mm | 6 |
Attribute Group 1
| Brand | TIMCO |
Concrete Screw - TX - Flat Countersunk - Exterior - Silver
7.5 x 120
- Product Code: 120TCONR

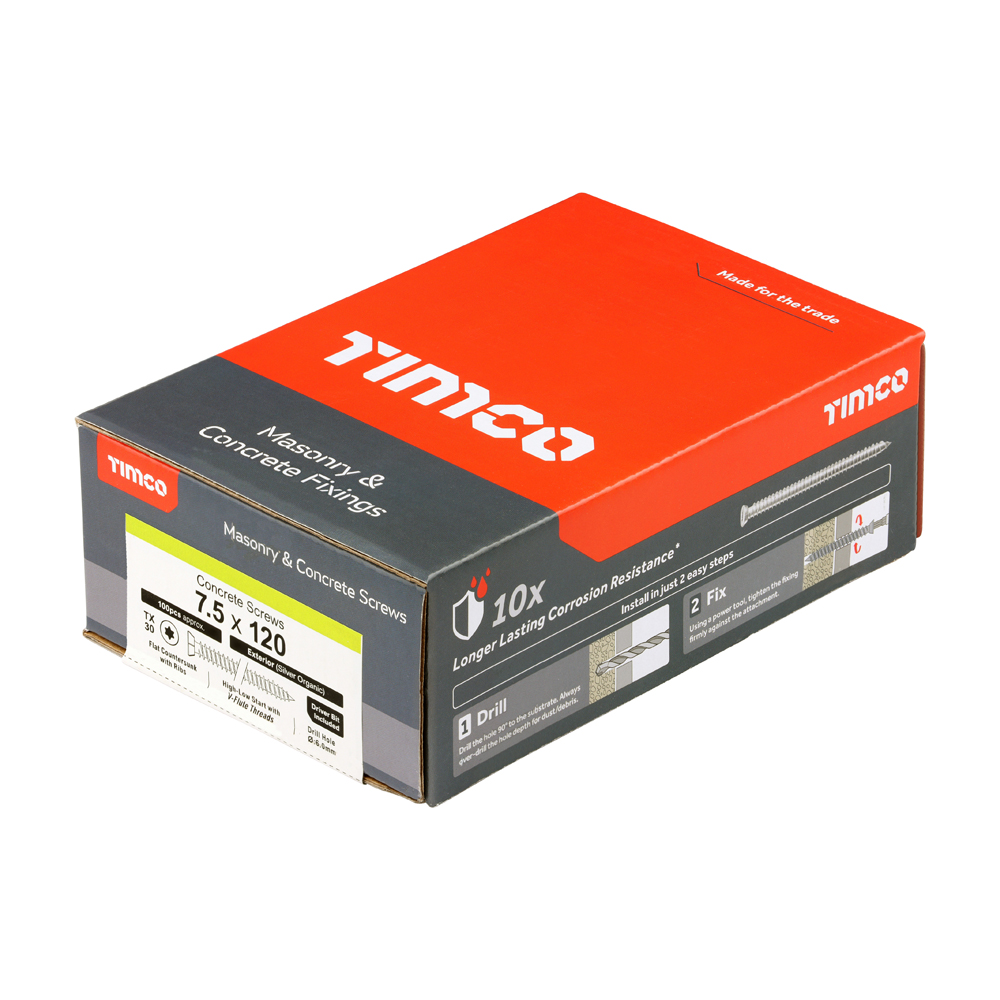

- Pack Type: Box
- Pack Quantity: 100
- Barcode: 5055893363348
