Product Information
Concrete in fence post shoes are designed to be set into concrete when ground conditions won’t allow for a drive in spike or the post is to be fitted in a hard standing area.
The bolt secure version features 2x 8mm carriage bolts that tighten and clamp the post firmly into the post holder section to prevent any post movement as well as allowing for over / under sized post tolerance. The bolt system also allows for removal of the post at a later stage if required.
- Features 4 fins at the bottom to hold the support firmly in concrete
- Red oxide powder coat to blend in with fencing whilst also providing a medium rust protection
- Can be painted over
Documents
Technical Specifications
Product Specification
| Carriage Bolt Size mm | M8 x 35 |
| Nut Size mm | M8 |
| Post Holder Length mm | 150 |
| Spike Length inch | 8 |
| Spike Length mm | 200 |
| Total Length mm | 350 |
| Colour Reference | (RAL) 8015 |
| Type | Bolt Secure |
| No of Nuts | 2 |
| No of Carriage Bolts | 2 |
| To Suit Post Size inch | 4 x 4 |
| To Suit Post Size mm | 100 x 100 |
| Pack Dimensions L x W x H mm | 350 x 120 x 120 |
| Pack Weight kg | 1.64 |
| Carton Qty Packs | 10 |
| Pallet Qty Packs | 160 |
| Offers | Sale |
| Product Code | CSB100 |
| SKU Barcode | 5055893364888 |
Product Specifications
| Finish | Oxide Red Powder Coated |
| Material | Carbon Steel |
| Nut Type | Nylon - Type T |
| Included Items | M8 x 35mm Carriage Bolts (Qty 2), M8 Nylon - Type T Nuts (Qty 2) |
Attribute Group 1
| Brand | TIMCO |

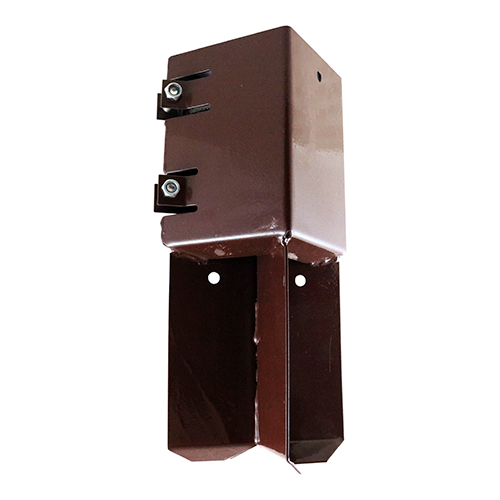

Concrete In Shoe - Bolt Secure - Oxide Red
100mm
- Product Code: CSB100
- Pack Type: Unit
- Pack Quantity: 1
- Barcode: 5055893364888
