Product Information

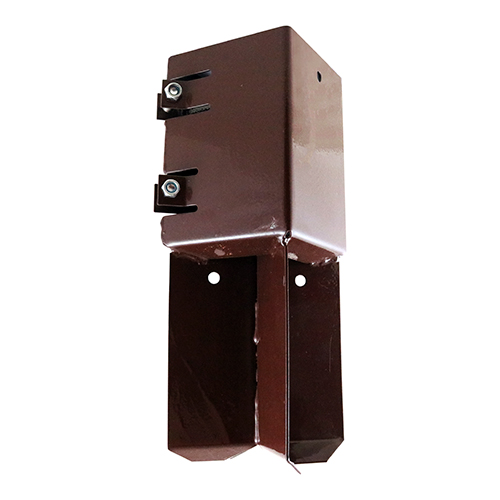

Concrete in fence post shoes are designed to be set into concrete when ground conditions won’t allow for a drive in spike or the post is to be fitted in a hard standing area. The bolt secure version features 2x 8mm carriage bolts that tighten and clamp the post firmly into the post holder section to prevent any post movement as well as allowing for over / under sized post tolerance. The bolt system also allows for removal of the post at a later stage if required.
  • Features 4 fins at the bottom to hold the support firmly in concrete
  • Red oxide powder coat to blend in with fencing whilst also providing a medium rust protection
  • Can be painted over
Documents
Technical Specifications
Product Specification
Carriage Bolt Size mm M8 x 35
Nut Size mm M8
Post Holder Length mm 150
Spike Length inch 8
Spike Length mm 200
Total Length mm 350
Colour Reference (RAL) 8015
Type Bolt Secure
No of Nuts 2
No of Carriage Bolts 2
To Suit Post Size inch 3 x 3
To Suit Post Size mm 75 x 75
Pack Dimensions L x W x H mm 350 x 100 x 100
Pack Weight kg 1.33
Carton Qty Packs 10
Pallet Qty Packs 300
Offers Sale
Product Code CSB75
SKU Barcode 5055893364871
Product Specifications
Finish Oxide Red Powder Coated
Material Carbon Steel
Nut Type Nylon - Type T
Included Items M8 x 35mm Carriage Bolts (Qty 2), M8 Nylon - Type T Nuts (Qty 2)
Attribute Group 1
Brand TIMCO

Concrete In Shoe - Bolt Secure - Oxide Red

75mm

  • Product Code: CSB75
  • Pack Type: Unit
  • Pack Quantity: 1
  • Barcode: 5055893364871
