Product Information

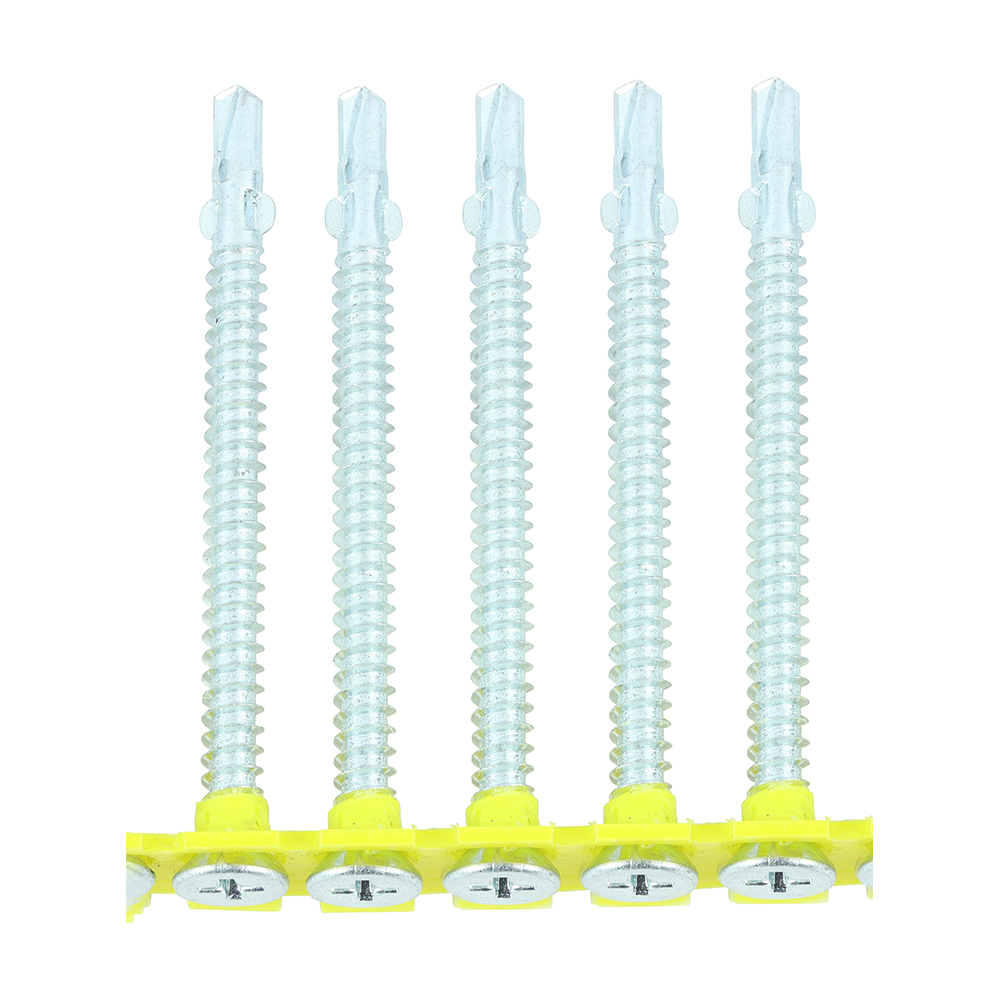

Specifically designed to attach wood to metal (Max. 4.0mm). Coarse self-tapping thread with wings designed to ream out the timber, this helps the screw achieve Max. R.P.M. without burning out. When the wings hit the metal they will break off to permit the thread to self-tap into the metal. The collated strips are specifically designed to be compatible with all leading power tool brands.
- The collated strips are specifically designed to be compatible with all leading power tool brands
- Self-countersinking ribs
- Coarse 60° self-tapping thread for excellent holding power & rapid insertion
- Case & core hardened for durability & strength
Documents
Technical Specifications
Product Specification
| Drill Tip Length mm | 9 |
| Effective Thread Length mm | 47 |
| Length inch | 2 1/2 |
| Length mm | 65 |
| Diameter mm | 4.8 |
| Size mm | 4.8 x 65 |
| Thread Length mm | 60 |
| Wing Tip Width mm | 3 |
| Drill Tip Angle degree | 110 |
| Drill Tip Width mm | 4 |
| Collated Uncollated | Collated |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Max Drilling Thickness mm | 4 |
| Max Fixture Thickness mm | 52 |
| Rec RPM | 1,800 – 2,500 |
| To Suit Timber mm | <52 |
| Pack Dimensions L x W x H mm | 562 x 122 x 66 |
| Pack Weight kg | 3.3 |
| Carton Qty Packs | 4 |
| Pallet Qty Packs | 128 |
| Product Code | 4865COLLW |
| SKU Barcode | 5055017585724 |
| Thread Dia mm | 4.8 |
Product Specifications
| Finish | Zinc |
| Head Type | Countersunk with Ribs |
| Material | Carbon Steel |
| Point Type | Winged Self-Drilling |
| Recess Type | Phillips |
| Screws Per Strip | 50 |
| Thread Coverage | Fully Threaded |
| Thread Type | Fine |
| Driver Bit Size | PH2 |
| Substrates | Steel |
Attribute Group 1
| Brand | TIMCO |
Collated Timber to Light Section Screws - Countersunk - Wing-Tip - Self-Drilling - Zinc
4.8 x 65
- Product Code: 4865COLLW
- Pack Type: Box
- Pack Quantity: 500
- Barcode: 5055017585724
