Product Information
Self-drilling point to aid fixing plasterboard to wall/ceiling track systems with a max. of 2.0mm thickness. The collated strips are specifically designed to be compatible with all leading power tool brands.
- The collated strips are specifically designed to be compatible with all leading power tool brands
- Fire Classification - A1
Documents
Technical Specifications
Product Specification
| Length inch | 2 |
| Length mm | 50 |
| Diameter mm | 3.5 |
| Size mm | 3.5 x 50 |
| Thread Length mm | 45 |
| Collated Uncollated | Collated |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Max Drilling Thickness mm | 2 |
| Pack Dimensions L x W x H mm | 562 x 122 x 66 |
| Pack Weight kg | 3.04 |
| Carton Qty Packs | 8 |
| Pallet Qty Packs | 192 |
| CE Standard Web | BS EN 14566:2008 |
| Product Code | 00050COLLSD |
| SKU Barcode | 5055017549979 |
| Thread Dia mm | 3.5 |
Product Specifications
| Finish | Zinc |
| Head Type | Bugle |
| Material | Carbon Steel |
| Point Type | Self-Drilling |
| Recess Type | Phillips |
| Screws Per Strip | 50 |
| Thread Coverage | Fully Threaded |
| Thread Type | 60° Self-Tapping |
| Driver Bit Size | PH2 |
| Substrates | Thin Sheet Metal, Drywall |
Attribute Group 1
| Brand | TIMCO |

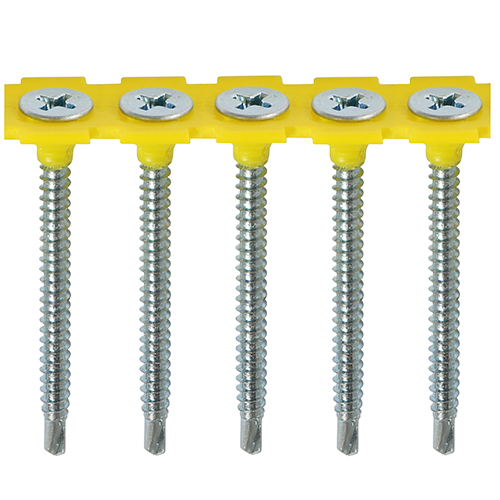

Collated Drywall Screws - PH - Bugle - Self Tapping Thread - Self Drilling - Zinc
3.5 x 50
- Product Code: 00050COLLSD
- Pack Type: Box
- Pack Quantity: 1000
- Barcode: 5055017549979
