Product Information
All the features and superior performance of the Classic Multi-Purpose Screw manufactured from A2 Stainless Steel. Ideal where ultimate corrosion resistance is required when fixing to softwoods, hardwood (pre-drilled), chipboard, MDF and plastic. The collated strips are specifically designed to be compatible with all leading power tool brands. Stainless steel must be used where there is corrosive environment and/or the base material has inherent corrosive characteristics e.g. Green Oak.
- The collated strips are specifically designed to be compatible with all leading power tool brands
Documents
Technical Specifications
Product Specification
| Length inch | 2 |
| Length mm | 50 |
| Diameter mm | 4.0 |
| Size mm | 4.0 x 50 |
| Thread Length mm | 45 |
| Collated Uncollated | Collated |
| Corrosion Rating | 4 - Urban & industrial areas with a moderate salt atmosphere |
| Pack Dimensions L x W x H mm | 562 x 122 x 66 |
| Pack Weight kg | 2.94 |
| Carton Qty Packs | 8 |
| Pallet Qty Packs | 192 |
| CE Standard Web | BS EN 14592:2008 |
| Product Code | 4050CLASSCOL |
| SKU Barcode | 5055017587056 |
| Size imp | 8 x 2 |
| Thread Dia mm | 4 |
| Inner Thread Dia mm | 2.5 |
| Head Dia mm | 7.87 |
Product Specifications
| Head Type | Double Countersunk |
| Material | Austenitic Stainless Steel (A2-304) |
| Point Type | 25° Sharp with Single Slash |
| Recess Type | Pozi |
| Screws Per Strip | 50 |
| Thread Coverage | Fully Threaded |
| Thread Type | 40° Single Deep |
| Driver Bit Size | PZ2 |
| Substrates | Hardwood, Softwood, Chipboard, MDF, Plastic, Thin Sheet Metal, Corrosive Wood (e.g. Oak, Cedar) |
Attribute Group 1
| Brand | TIMCO |

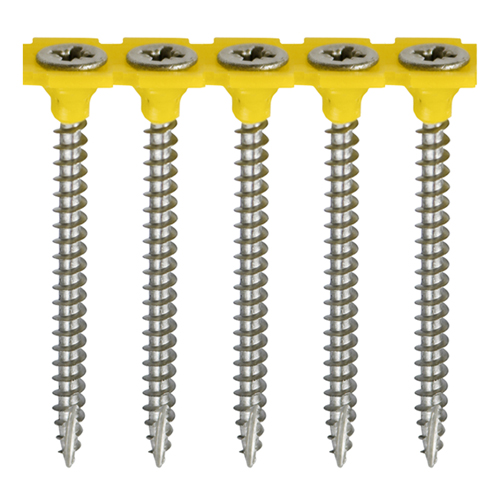

Collated Classic Multi-Purpose Screws - PZ - Double Countersunk - A2 Stainless Steel
4.0 x 50
- Product Code: 4050CLASSCOL
- Pack Type: Box
- Pack Quantity: 1000
- Barcode: 5055017587056
