Product Information

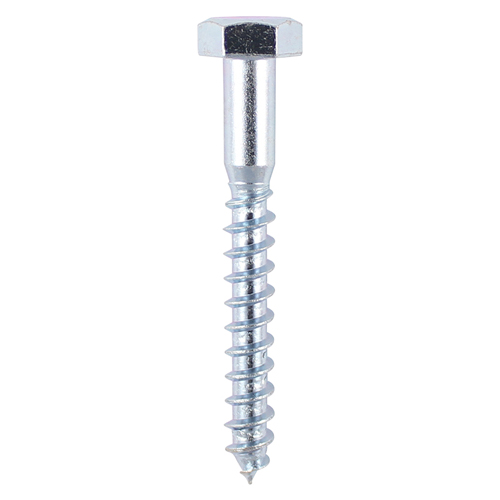

A traditional heavy duty woodscrew mainly used for timber to timber applications, attaching ironmongery to timber or into masonry with the use of a nylon plug. Pilot drill holes may be required into certain hardwoods.
NOTE: Thread length is 2/3 of the overall length screw. E.G. 100mm = 60mm thread length (approx.).
Documents
Technical Specifications
Product Specification
| Length mm | 150 |
| Diameter mm | 12.0 |
| Size mm | 12.0 x 150 |
| Socket Size mm | 19 |
| Thread Length mm | 90 |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Pack Dimensions L x W x H mm | 265 x 152 x 50 |
| Pack Weight kg | 1.4 |
| Carton Qty Packs | 5 |
| Pallet Qty Packs | 500 |
| CE Standard Web | BS EN 14592:2008 |
| DIN Standard | DIN 571 |
| Product Code | 12150CSCB |
| SKU Barcode | 5055893344293 |
| Thread Dia mm | 12 |
| Inner Thread Dia mm | 9 |
| Head Dia mm | 21.49 |
Product Specifications
| Finish | Zinc |
| Head Type | Hex |
| Material | Carbon Steel |
| Point Type | Sharp |
| Thread Coverage | Partially Threaded |
| Thread Type | 60° Self-Tapping |
| Substrates | Hardwood, Softwood, Brick (with plug) |
Attribute Group 1
| Brand | TIMCO |

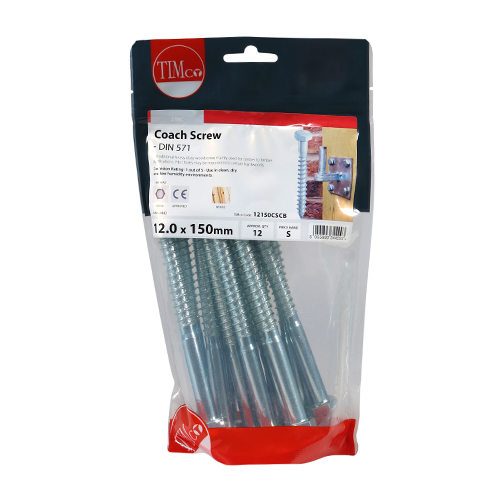

Coach Screws - Hex - Zinc
12.0 x 150
- Product Code: 12150CSCB
- Pack Type: TIMbag
- Pack Quantity: 12
- Barcode: 5055893344293
