Product Information

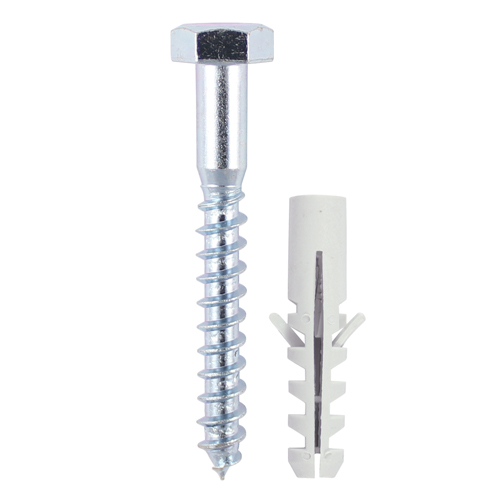

A traditional heavy duty woodscrew with a nylon plug for masonry applications.
- Nylon plug has anti-rotation lugs to help prevent turning during installation
Documents
Technical Specifications
Product Specification
| Diameter mm | 6 |
| Plug Length mm | 50 |
| Plug Size mm | 10.0 x 50 |
| Screw Size mm | 6.0 x 60 |
| Socket Size mm | 10 |
| Thread Length mm | 36 |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Pack Dimensions L x W x H mm | 265 x 152 x 50 |
| Pack Weight kg | 0.52 |
| Carton Qty Packs | 5 |
| Pallet Qty Packs | 600 |
| DIN Standard | DIN 571 |
| Product Code | 0660CSCNB |
| SKU Barcode | 5055331820709 |
| Thread Dia mm | 6 |
| Plug Dia mm | 10 |
| Drill Hole Dia mm | 6 |
Product Specifications
| Finish | Zinc |
| Head Type | Hex |
| Material | Carbon Steel |
| Point Type | Sharp |
| Thread Coverage | Partially Threaded |
| Thread Type | 60° Self-Tapping |
| Substrates | Hardwood, Softwood, Brick |
Attribute Group 1
| Brand | TIMCO |

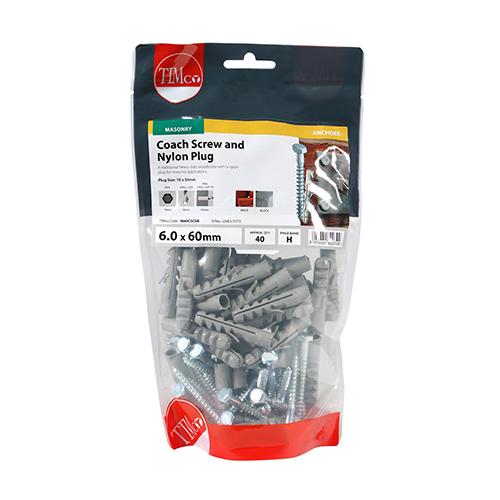

Coach Screws & Nylon Plugs - Zinc
6.0 x 60
- Product Code: 0660CSCNB
- Pack Type: TIMbag
- Pack Quantity: 40
- Barcode: 5055331820709
