Product Information

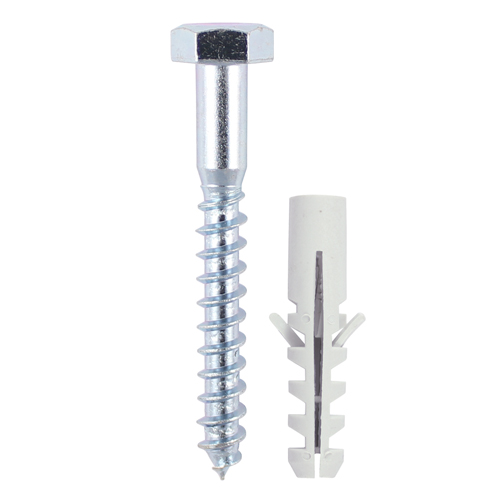

A traditional heavy duty woodscrew with a nylon plug for masonry applications.
- Nylon plug has anti-rotation lugs to help prevent turning during installation
Documents
Technical Specifications
Product Specification
| Diameter mm | 6 |
| Plug Length mm | 50 |
| Plug Size mm | 10.0 x 50 |
| Screw Size mm | 6.0 x 60 |
| Socket Size mm | 10 |
| Thread Length mm | 36 |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Pack Dimensions L x W x H mm | 15 x 90 x 163 |
| Pack Weight kg | 0.029 |
| Carton Qty Packs | 5 |
| Pallet Qty Packs | 7200 |
| DIN Standard | DIN 571 |
| Product Code | 0660CSCNP |
| SKU Barcode | 5055331829108 |
| Thread Dia mm | 6 |
| Plug Dia mm | 10 |
| Drill Hole Dia mm | 6 |
Product Specifications
| Finish | Zinc |
| Head Type | Hex |
| Material | Carbon Steel |
| Point Type | Sharp |
| Thread Coverage | Partially Threaded |
| Thread Type | 60° Self-Tapping |
| Substrates | Hardwood, Softwood, Brick |
Attribute Group 1
| Brand | TIMCO |

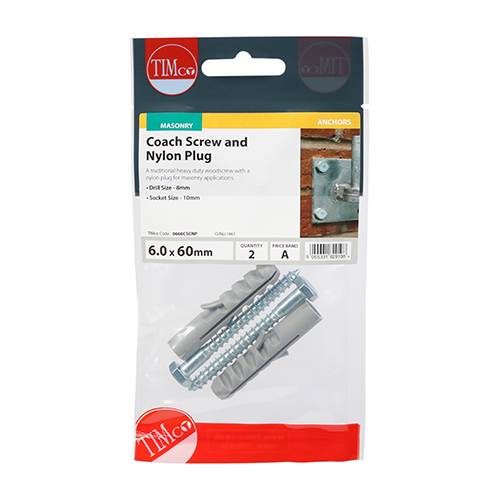

Coach Screw & Nylon Plugs - Zinc
6.0 x 60
- Product Code: 0660CSCNP
- Pack Type: TIMpac
- Pack Quantity: 2
- Barcode: 5055331829108
